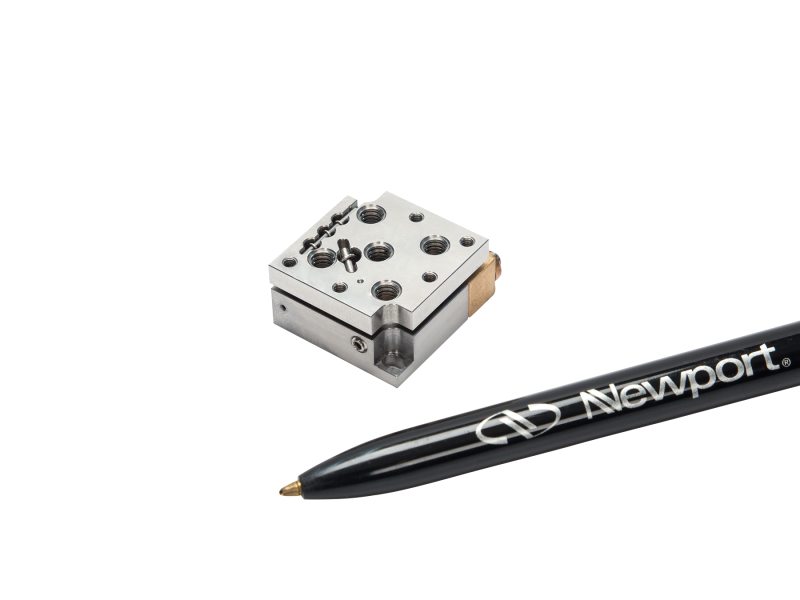

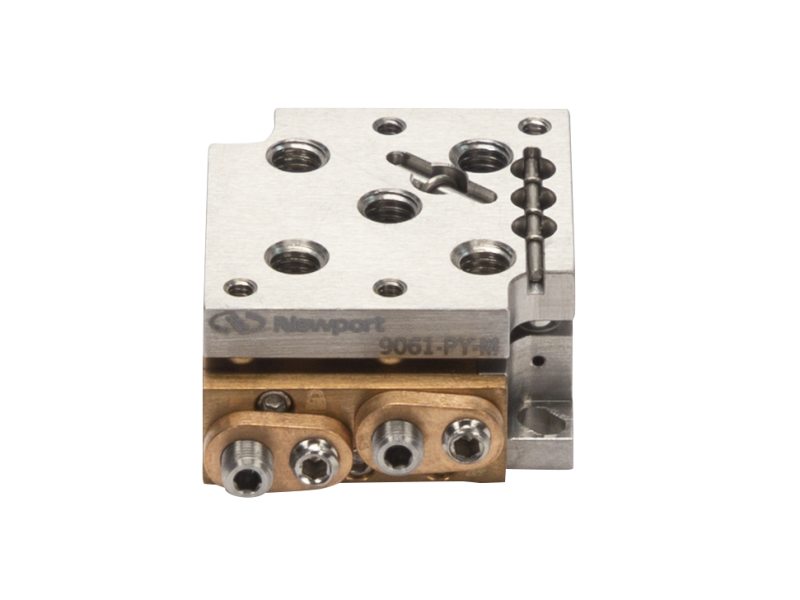

New Tilt Platform, Two-Axis, 25 x 25 mm Platform, 2-56 & 8-32

Technical Specs

  • Tilt
    ±2°
  • Rotation
    ±2°
  • Drive Type
    80 TPI Hex Screw
  • Sensitivity
    12.3 arc sec
  • Load Capacity
    10 N
  • Platform Size
    25x25 mm
  • Material
    Stainless Steel
  • Thread Type
    2-56
