Optic Holder, Miniature Vise, Up To 0.25 in. Thick Optics
Optic Holder, Miniature Vise, Up To 0.25 in. Thick Optics
Model: 77614
Product Series Overview

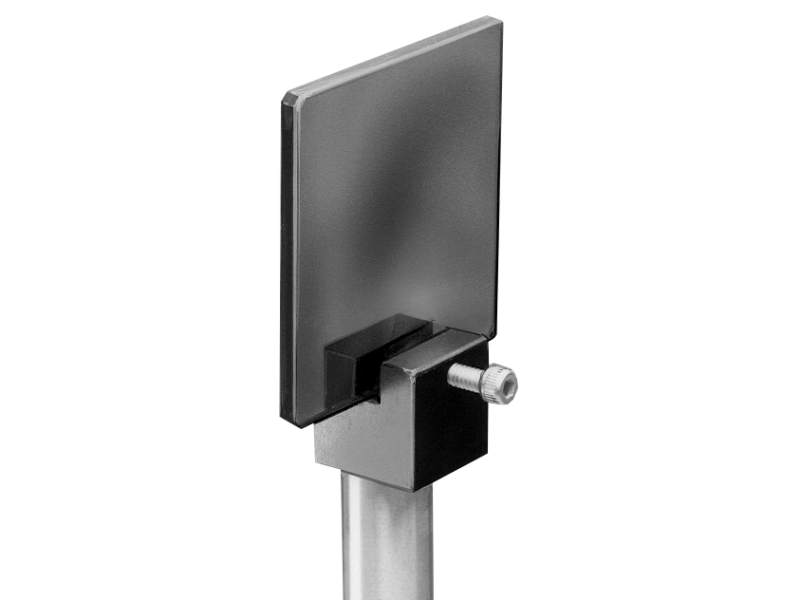

Light Source Filter HoldersThe 77614 Miniature Vise is a very simple, low cost holder for flat optical components like filters or optics. It holds circular or square optics of any dimension up to 0.25 inch (6.4 mm) thick. Simply slide the optic into the grove and tighten the thumbscrew; a 2 inch (50.8 mm) optical post is included.
Resources & Downloads
2D Product Drawings
BPT-pg18-7d(92.4 kB, PDF)
