Fiber Bundle, Glass, 11mm Circular Ferrule, 0.8 x 9.7mm Rectangular Slit (RoHS Pending)

Model: 77538

$265

Compare

Add to List

Product Series Overview

Rectangular to Circular Fiber Bundles

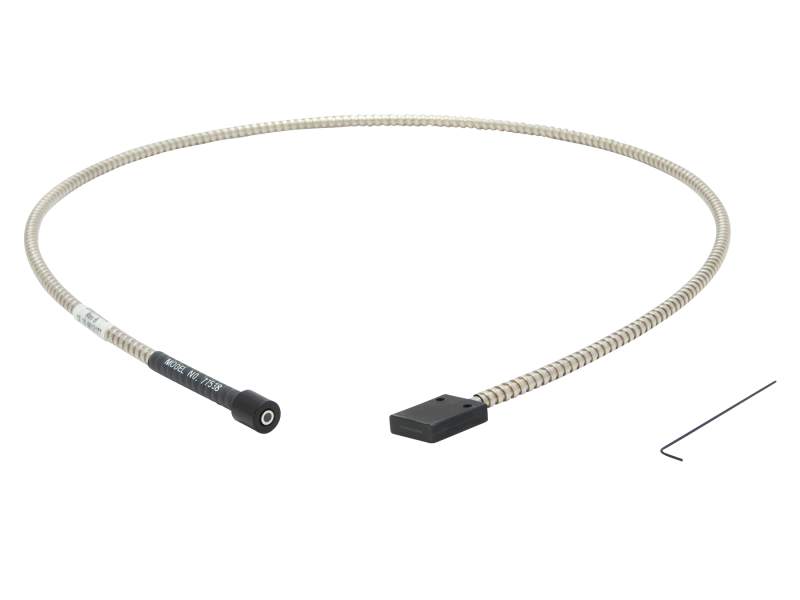

The 77538 Glass Fiber Bundle has an 11 mm ferrule at one end and a rectangular slit at the other end. Use it to carry light from a light source to a monochromator or spectrograph, or from a monochromator to a detector or sample. The 0.8 x 9.7 mm rectangular end is used to replace the instrument’s input slit. The circular end has an 11 mm ferrule with a 0.56 NA. The bundle has 36 inch length.

Specifications

Technical Specs

Type

Rectangular to Circular Bundle
Numerical Aperture

0.56
Fiber Length

36 in.
Fiber Connector

11 mm Ferrule
Acceptance Cone, 2a

68°

F/#

0.9
Fiber Material

Glass
Minimum Bend Radius

2 in.

Type

Rectangular to Circular Bundle
Numerical Aperture

0.56
Fiber Length

36 in.
Fiber Connector

11 mm Ferrule
Acceptance Cone, 2a

68°

F/#

0.9
Fiber Material

Glass
Minimum Bend Radius

2 in.
