Longpass Filter, Colored-Glass Alternative, 12.7 mm, 495 nm Cut-on
Longpass Filter, Colored-Glass Alternative, 12.7 mm, 495 nm Cut-on
Model: 5CGA-495
In Stock
Product Series Overview

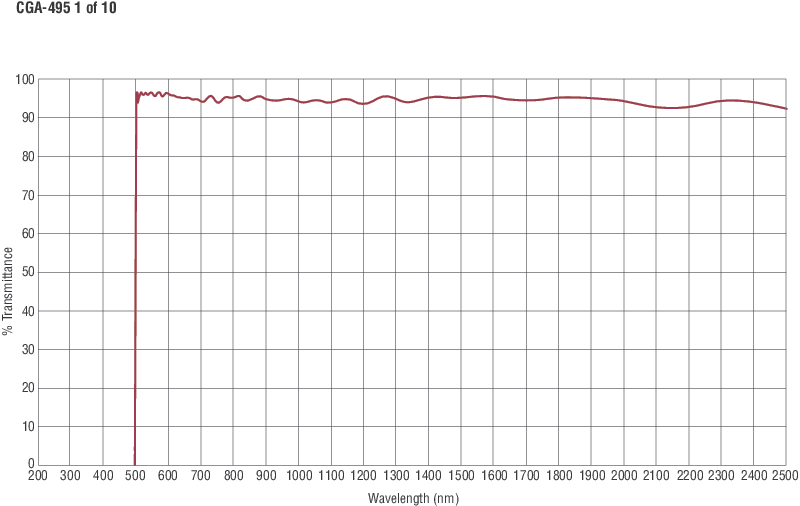

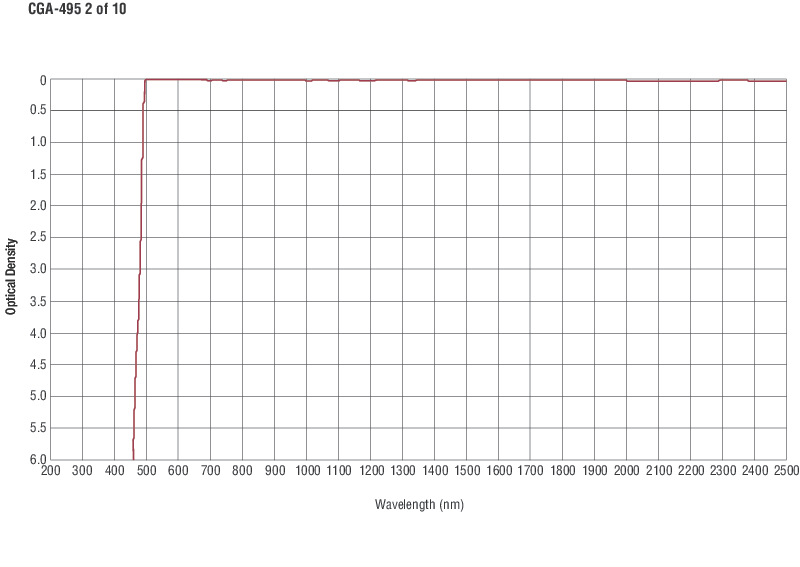

Colored Glass Alternative Longpass FiltersThe 5CGA-495 Colored-Glass Alternative Filter is a 0.5 inch (12.7 mm) diameter long-pass filter with a 495 ± 5 nm cut-on wavelength. Colored-Glass Alternative filters have a steep transition between the region of transmission and rejection (blocking) that is much steeper than colored glass filters. Colored-Glass Alternative filters have out-of-band rejection ≥OD 5 to 200 nm. Typical transmission is ≥90% average.
Resources & Downloads
Other
5CGA-495 RoHS Certificate(264.9 kB, PDF)
Literature
Colored Glass Alternative Filters Catalog(14.2 MB, PDF)
