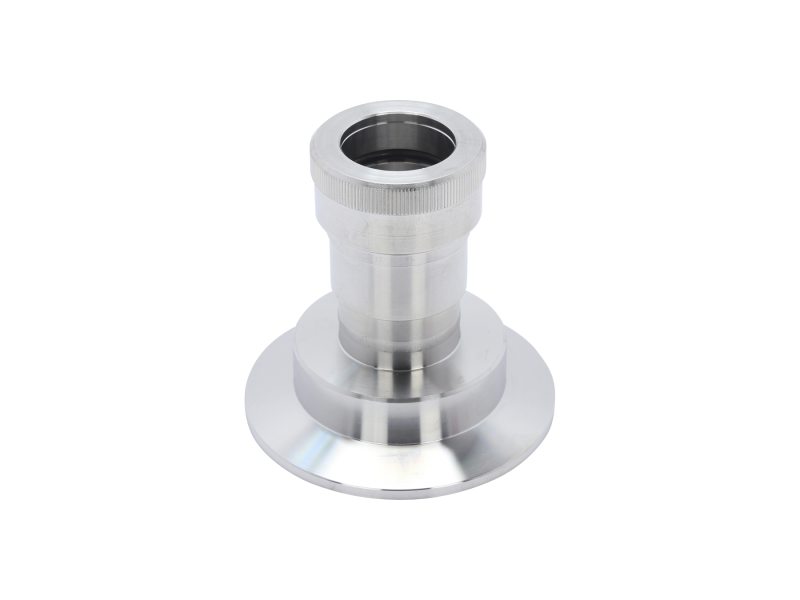

ISO-KF Flange Adapter, NW50 to 1.0 inch O.D. Pipe Compression Fitting
The 100316936 ISO-KF Flange Adapter is used to convert a NW50 size ISO-KF vacuum flange to a 1 inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Specifications
- Component TypePipe Compression Fitting Adapter
- SeriesSeries 31
- MaterialViton
- Seal MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Tube OD1.0 in.
- Length71 mm
- Inner Diameter22 mm
- A22 mm
- B71 mm
- C24 mm
