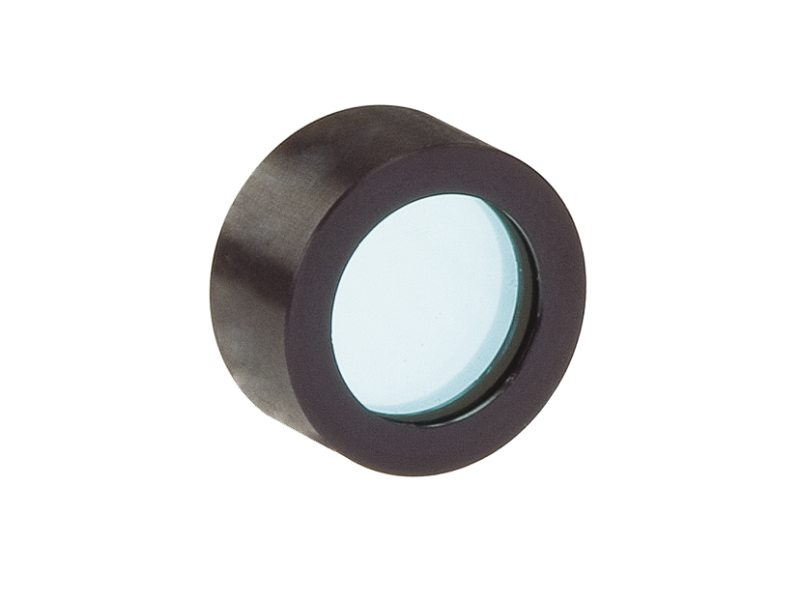

Laser Line Filter, 12.7 mm, 514.5±2 nm Center, 10±2 nm FWHM
The 05LF10-515 Laser Line Filter is 12.7 mm diameter with a center wavelength of 514.5 ± 2 nm, and full width half max of 10 ± 2 nm. It is optimized to block X-ray to Far IR wavelengths. Laser Line Filters are ideal for transmitting laser light while suppressing ambient light. The center wavelength shifts linearly with temperature less than 0.02 nm/°C. The highly reflective side of the filter should generally face the source, minimizing the thermal load on the blocking glass and epoxies.
Specifications
Type
Laser Line Filter
Center Wavelength
514.5 nm
Center Wavelength Tolerance
±2 nm
FWHM
10±2 nm
Effective Index of Refraction
2
Size
Ø12.7 mm
Size Tolerance
+0/-0.1 mm
Thickness
7.62 mm
Surface Quality
80-50 scratch-dig
Minimum Peak Transmission
50%
Humidity Resistance
Per MIL-STD-810C, method 507, procedure 1, modified for 5 cycles
Laser Type
Argon-Ion
Blocking
Xray–Far IR
Clear Aperture
8.7 mm
Temperature Range
-50°C to +80 °C
Wavelength Shift with Temperature
<0.02 nm/°C
Cleaning
