Compare Model Drawings, CAD & Specs Mounting Holes Width Length Availability Price
low voc laser clean optical breadboard plate

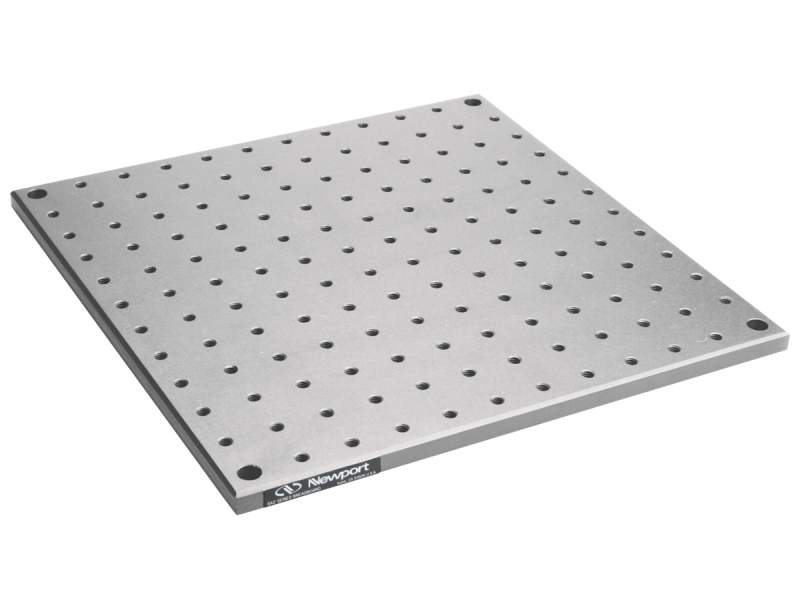

Optical Breadboard Plate, 6 x 6 x 0.5 in., Solid Aluminum, LaserClean
$69
In Stock
1/4-20 6 in. 6 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 8 x 8 x 0.5 in., Solid Aluminum, LaserClean
$99
In Stock
1/4-20 8 in. 8 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 8 x 10 x 0.5 in., Solid Aluminum, LaserClean
$143
In Stock
1/4-20 8 in. 10 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 12 x 12 x 0.5 in., Solid Aluminum, LaserClean
$185
In Stock
1/4-20 12 in. 12 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 12 x 18 x 0.5 in., Solid Aluminum, LaserClean
$231
In Stock
1/4-20 18 in. 12 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 12 x 24 x 0.5 in., Solid Aluminum, LaserClean
$316
In Stock
1/4-20 24 in. 12 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 12 x 36 x 0.5 in., Solid Aluminum, LaserClean
$388
In Stock
1/4-20 36 in. 12 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 18 x 18 x 0.5 in., Solid Aluminum, LaserClean
$322
In Stock
1/4-20 18 in. 18 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 18 x 24 x 0.5 in., Solid Aluminum, LaserClean
$448
In Stock
1/4-20 24 in. 18 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 18 x 30 x 0.5 in., Solid Aluminum, LaserClean
$639
In Stock
1/4-20 30 in. 18 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 24 x 24 x 0.5 in., Solid Aluminum, LaserClean
$589
In Stock
1/4-20 24 in. 24 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 24 x 36 x 0.5 in., Solid Aluminum, LaserClean
$817
In Stock
1/4-20 36 in. 24 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, 30 x 30 x 0.5 in., Solid Aluminum, LaserClean
$752
In Stock
1/4-20 30 in. 30 in.
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 150 x 150 mm, M6, LaserClean
$67
In Stock
M6 150 mm 150 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 200 x 200 mm, M6, LaserClean
$97
In Stock
M6 200 mm 200 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 200 x 250 mm, M6, LaserClean
$146
In Stock
M6 200 mm 250 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 300 x 300 mm, M6, LaserClean
$189
In Stock
M6 300 mm 300 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 300 x 450 mm, M6, LaserClean
$236
In Stock
M6 450 mm 300 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 300 x 600 mm, M6, LaserClean
$322
In Stock
M6 600 mm 300 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 300 x 900 mm, M6, LaserClean
$388
In Stock
M6 900 mm 300 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 450 x 450 mm, M6, LaserClean
$329
In Stock
M6 450 mm 450 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 450 x 600 mm, M6, LaserClean
$448
In Stock
M6 600 mm 450 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 450 x 750 mm, M6, LaserClean
$639
In Stock
M6 750 mm 450 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 600 x 600 mm, M6, LaserClean
$589
In Stock
M6 600 mm 600 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 600 x 900 mm, M6, LaserClean
$799
In Stock
M6 900 mm 600 mm
In Stock
low voc laser clean optical breadboard plate
Optical Breadboard Plate, Solid Aluminum, 750 x 750 mm, M6, LaserClean
$752
In Stock
M6 750 mm 750 mm
In Stock

Specifications

  • Type
    Low VOC Optical Breadboard Plate
  • Thickness
    0.5 in. (12.7 mm)
  • Working Surface
    Clear anodized aluminum
  • Surface Flatness
    ±0.062 in. over any 2 ft. square
  • Mounting Holes
    1/4-20
    M6 (M- Versions)
  • Number of Counterbored Holes
    Four 0.25 in. located at the corners inset 0.5 in. (12.5 mm) from the edge
  • Mounting Hole Type
    Cut (not rolled) threads with countersink
  • Mounting Hole Pattern
    1.0 in. grid
    25 mm grid (M- Versions)
  • Mounting Hole Borders
    0.5 in.
    12.5 mm (M- Versions)

Features

What is LaserClean™?

Sometimes, your application requires extra care to reduce volatile organic compounds (VOC) and ensure added cleanliness. Newport now offers a collection of Opto-Mechanical components and Vibration Control products that are cleaned the same as the vacuum version of these parts, but do not have the extra machining to remove the blind holes. Therefore, these products offer V6 cleanliness without the V6 price. We call these products, LaserClean™. For example, we've measured the cleanliness of a standard and LaserClean™ manual translation stage.

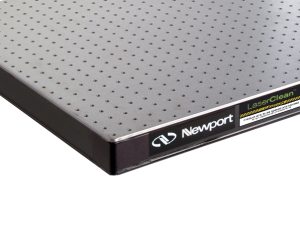

LaserClean™ Optical Breadboards

With virtually oil free interface and minimized VOC, Newport's LaserClean™ breadboards deliver SG equivalent damping performance together with unmatched low-outgassing feature. No more worries about organic residue deposited on your mirrors - LaserClean™ breadboards are ideal for your laser applications and any application that requires a minimum outgassing.

Reduced VOC and Harmful Chemicals

Because of the special procedure and ingredients used to prepare the breadboards, there is significant reduction of VOC and other harmful compounds such as siloxanes.
