10X Laser Collimator, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity
$1,016
In Stock
LC-075 10X Laser Collimator, 1.9 mm Entrance, 19 mm Exit, 1 m to Infinity
In Stock
$1,016

Specifications

Note: Specifications below are common to all products presented. See Individual product details for complete information.

  • Magnification
    10x
  • Wavelength Range
    400-700 nm
  • Entrance Aperture
    1.9 mm
  • Exit Aperture
    19.0 mm
  • Damage Threshold
    100 W/cm2 CW, 2 J/cm2 with 10 nsec pulses, typical
  • Focus Range
    <1 m to ∞
  • Transmission
    >90%
  • Wavefront Distortion
    ≤λ/10 at infinity focus

Features

Collimating a Laser Beam

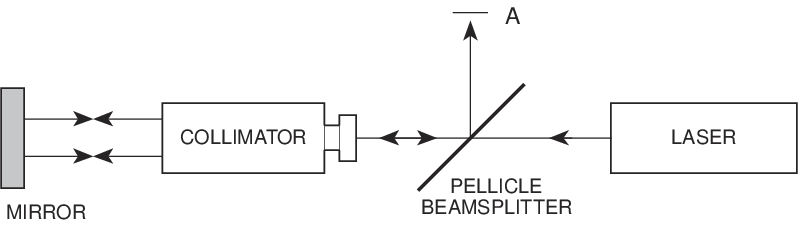

A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.

Easy Alignment

A flat mirror reflects the expanded beam back through the optical system, demagnifying it. Adjust the collimator until the reflected beam observed at A is a minimum diameter.

Mounting a Laser Collimator

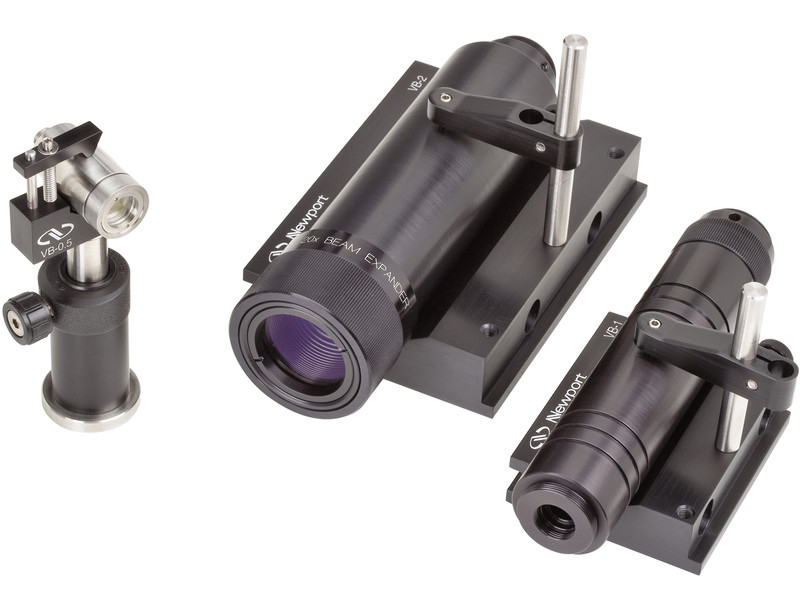

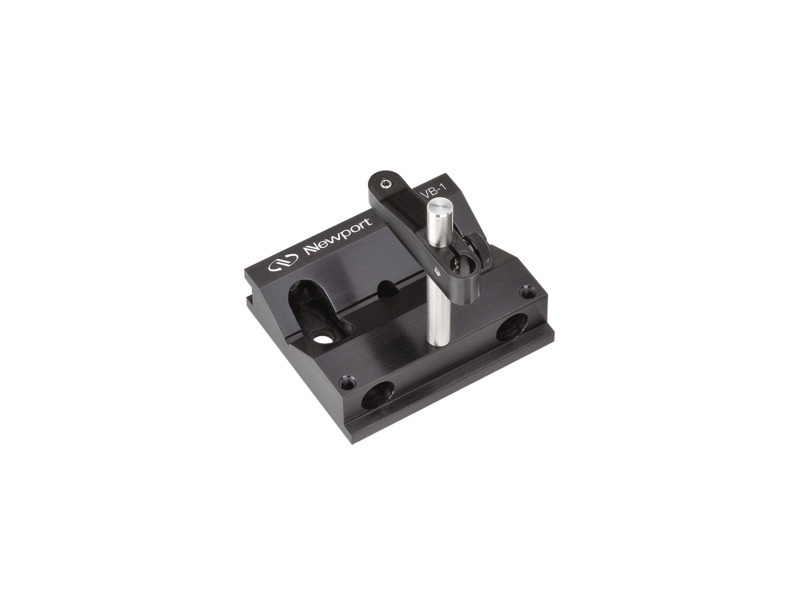

The ULM-TILT is excellent for mounting and positioning the LC-075 in any laser beam. You can also use our v-block mounts for fixed mounting to an optical table or breadboard.
