Compare Model Drawings, CAD & Specs Availability Price

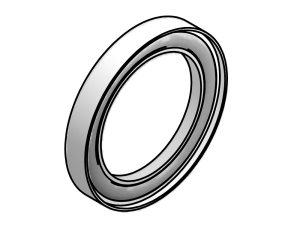

100316301
Overpressure Ring, NW16 ISO-KF Flange, 100 psig, 304 Stainless Steel
$11.40
In Stock
 100316301 Overpressure Ring, NW16 ISO-KF Flange, 100 psig, 304 Stainless Steel
In Stock
 $11.40
100316303
Overpressure Ring, NW25 ISO-KF Flange, 100 psig, 304 Stainless Steel
$12.13
In Stock
 100316303 Overpressure Ring, NW25 ISO-KF Flange, 100 psig, 304 Stainless Steel
In Stock
 $12.13

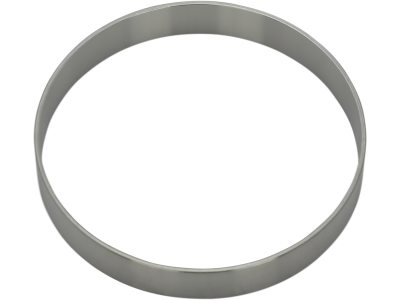

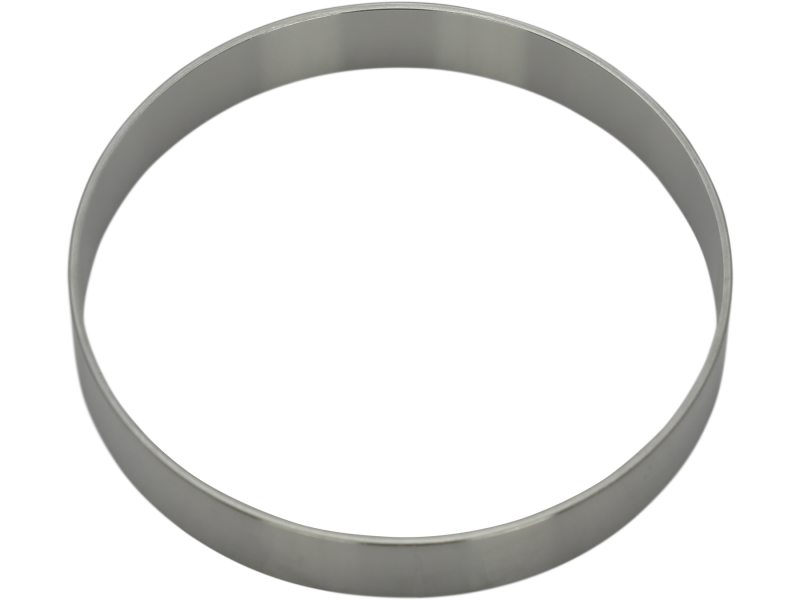

100316305
Overpressure Ring, NW40 ISO-KF Flange, 75 psig, 304 Stainless Steel
$13.58
In Stock
 100316305 Overpressure Ring, NW40 ISO-KF Flange, 75 psig, 304 Stainless Steel
In Stock
 $13.58
100316306
Overpressure Ring, NW50 ISO-KF Flange, 80 psig, 304 Stainless Steel
$14.80
In Stock
 100316306 Overpressure Ring, NW50 ISO-KF Flange, 80 psig, 304 Stainless Steel
In Stock
 $14.80

Specifications

  • Component Type
    Overpressure Ring
  • Series
    Series 31
  • Material
    304 Stainless Steel
  • Flange Type
    ISO-KF

Features

Positive Pressure Applications

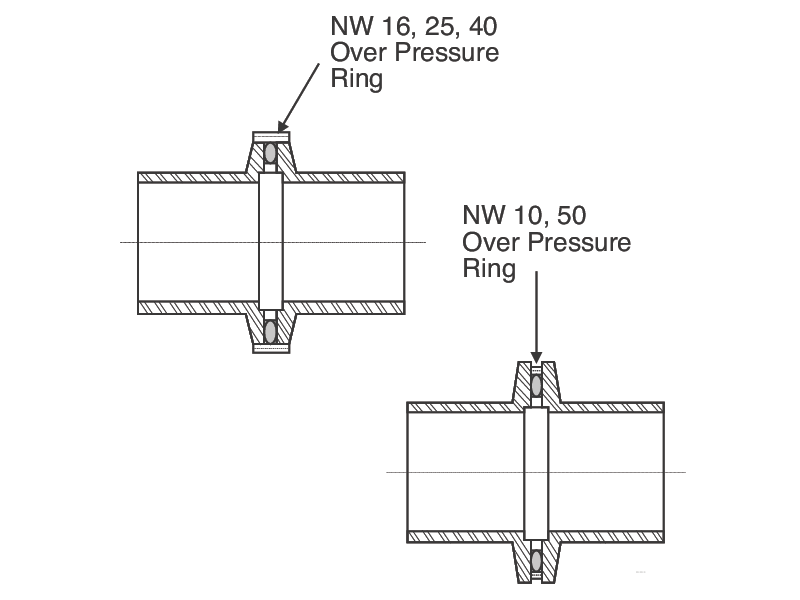

When vacuum system pressures are in the positive pressure range, it is recommended that over pressure rings are used. The ISO-KF flange over pressure rings are installed differently by size. The NW16, NW25, and NW40 ISO-KF over pressure rings are installed over the two ISO-KF flanges. The NW10 and NW50 ISO-KF over pressure rings are installed between the two flange faces. The clamp is installed around all items to secure the assembly.

ISO-KF Vacuum Flange Standard Dimensions

inch (mm)

The International Standards Organization has defined the interface dimensions of ISO-KF vacuum flanges allowing the interchanging of components that conform to the ISO-KF standard. The ISO-KF flange system provides is a modular building block method for creating a vacuum systems. Since component dimensions are standardized, elbows, tees, crosses or valves for a given flange size can be interchanged. The flanges are sexless and the seal is symmetrical allowing components to be rotated. By using ISO-KF standard components, vacuum system assembly is quick and cost effective.

Joining ISO-KF Vacuum Flanges

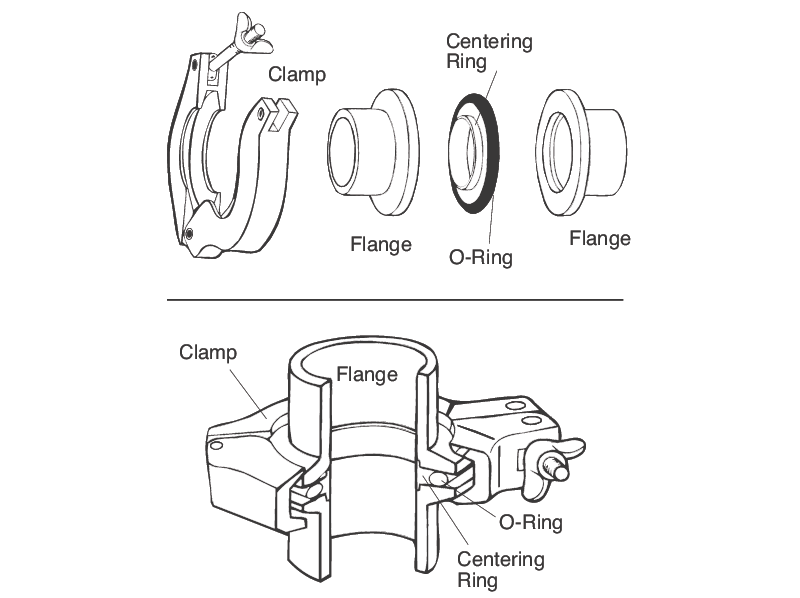

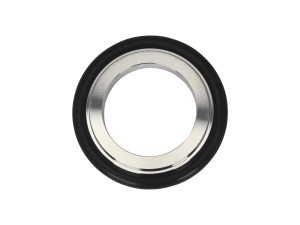

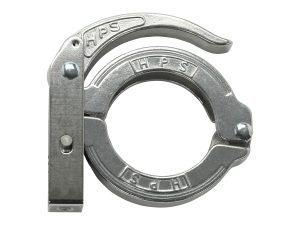

ISO-KF vacuum flange components are joined by inserting a centering ring seal between the two flange faces, then securing the assembly with a flange encompassing clamp. There are a variety of flange clamp choices available. The wing-nut flange clamp is hand tightened until metal contact is felt. The toggle flange clamp is convenient and easy to use and provides enough sealing force to fully compress the O-Ring, so that the flanges and the centering ring are metal to metal. The self-adjusting clamp locks in a positive method making it ideal when clamp must be removed frequently, like leak testing or gauge calibration. Bulkhead flange clamps attach an ISO-KF flange directly to a chamber or base plate. The two-part, bolted clamp fits over the flange with a centering ring assembly used between the flange and the opening.
