Overview

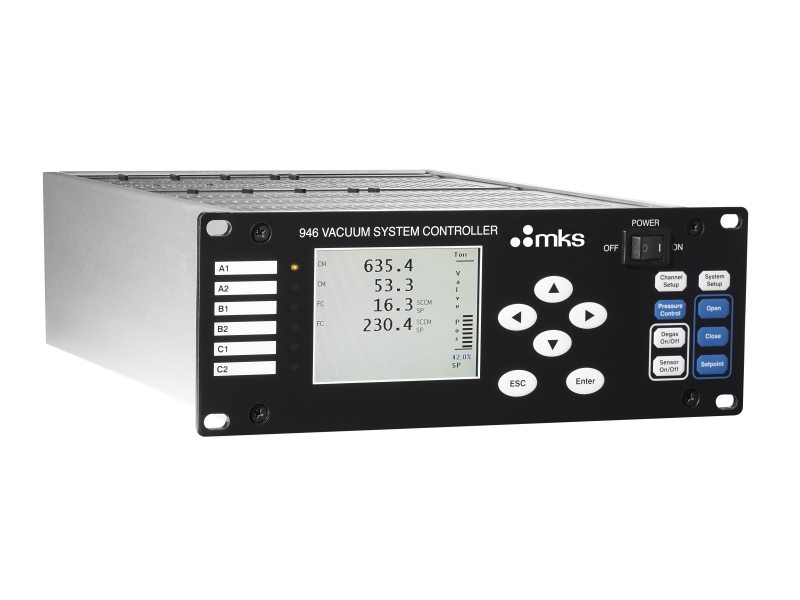

The 946 is a versatile half-rack vacuum gauge measurement and control system. It provides power and simultaneous readout for up to six different vacuum gauges and/or mass flow controllers, with options for controlling pressure. This highly flexible vacuum system controller supports a wide range of sensor technologies, including Baratron® capacitance manometers, cold cathode, hot cathode, standard Pirani and convection Pirani sensors for a measurement range from ultra-high vacuum to above atmospheric pressure.

Please see 946 Vacuum System Controllers on mks.com for additional configurations.

Simultaneous control and display six vacuum gauges and/or mass flow controllers
Pressure readings from 10,000 Torr down to 10^-11 Torr
Closed-loop pressure control option for use with MKS valves
RS232/485 computer control standard in all configurations for ease of system integration
Flow ratio control using multiple mass flow controllers
Communication between gauges enables a reference sensor to span or zero another gauge

		Compare	Model	Compatibility	sortOrder	rankScore	ranking	Drawings, CAD & Specs		Availability	Featured Item	Price		Brand
		946-US-NANANA-NA Base Vacuum Gauge Controller, RS232 and RS485, Series 946, US Region $2,335 3 Weeks	946-US-NANANA-NA Base Vacuum Gauge Controller, RS232 and RS485, Series 946, US Region	UNIVERSAL	0.0	1.0	0.0		0.0	3 Weeks		$2,335		MKS Instruments

Compare

Model

Drawings, CAD & Specs

Availability

Price

946-US-NANANA-NA

Base Vacuum Gauge Controller, RS232 and RS485, Series 946, US Region

$2,335

3 Weeks

$2,335

Description	Compatibility	Avail.	Price
100011869 Vacuum Gauge Cable, 902B Sensor to 937B or 946 Controller, 10 ft.	UNIVERSAL	In Stock	$138
100016295 Vacuum Gauge Cable, 423 I-Mag Cold Cathode Sensor to 946 Controller, 10 ft.	UNIVERSAL	In Stock	$138
100016951 Manometer Cable, 937B or 946 Controllers to 722 Manometers, DB9 to DB9, 10 ft.	UNIVERSAL	In Stock	$121

Description	Compatibility	Avail.	Price
20000712 Control Card, Mass Flow Controller, Series 946 Controller	UNIVERSAL	In Stock	$582
100015267 Vacuum Sensor Card, Capacitance Manometer and Piezo, Series 937B and 946 Controllers	UNIVERSAL	Contact Us	$570
100015132 Vacuum Sensor Card, Dual Convection Pirani, Series 937B and 946 Controllers	UNIVERSAL	In Stock	$425
100018446 Vacuum Sensor Card, Cold Cathode, Series 937B and 946 Controllers	UNIVERSAL	In Stock	$873
100018448 Vacuum Sensor Card, Fast Response, Cold Cathode, TTL Board, Series 937B and 946 Controllers	UNIVERSAL	In Stock	$2,206
100015641 Vacuum Sensor Card, Hot Cathode, Series 937B and 946 Controllers	UNIVERSAL	In Stock	$783
100016609 Pressure Control Card, Series 946 Vacuum Gauge Controller	UNIVERSAL	In Stock	$846
