Microscope Isolation Platform, Nikon ECLIPSE 50i or 55i

Nikon Microscope Isolation Platforms

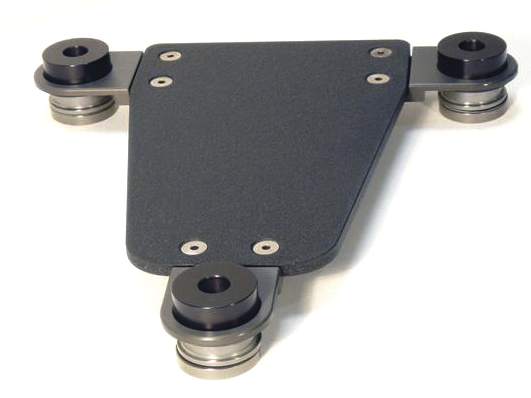

VIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-N-016 is a compact, mechanical vibration isolation platform that fits the footprint of Nikon Eclipse 50i/55i, saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.

Specifications

Technical Specs

Minimum Platform Load
20 lb
Load Capacity
42 lb
Horizontal Isolation, Resonance
6.2 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.7 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
ECLIPSE 50i or 55i
Weight
14 lb

Minimum Platform Load
20 lb
Load Capacity
42 lb
Horizontal Isolation, Resonance
6.2 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.7 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
ECLIPSE 50i or 55i
Weight
14 lb

Resources & Downloads

3D Product Models

Download CAD Files

Manuals

VIBe Series Isolation Platforms User's Manual(396.9 kB, PDF)

2D Product Drawings

VIP3200-N-016-DWG.pdf(195.6 kB, PDF)
