Mirror Mount, Suprema, Threaded Rear Load, 1.0 in., (3) 100-TPI Locking Allen-Key Actuators

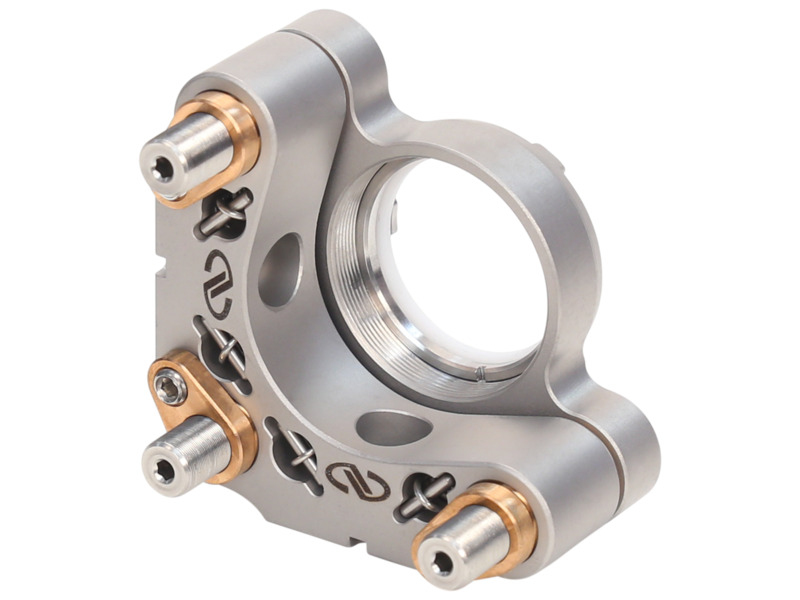

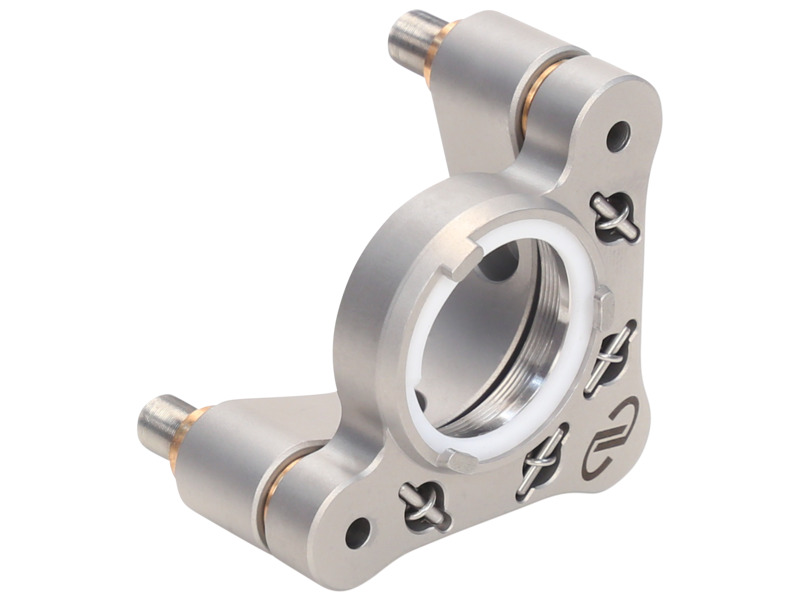

The ST100T-R3H Suprema^® Stainless Steel Stainless Steel 1.0 inch rear-load kinematic mirror mount offers superior performance in a compact footprint. Three 100 TPI precision adjustment screws can be aligned using a 5/64 in. (M2) Allen wrench for a ±5° tip and tilt range as well as translation. The mount also features a lever lock for each actuator that can be tightened with the same Allen wrench to prevent unwanted movement. Ideal for OEM applications, the ST100T-R3H mount incorporates two #8 (M4) counterbored thru-holes for mounting purposes. In addition, we have incorporated pin slot cuts for standard 5/64 in. dowel pins to enable repeatable system integration and to prevent clocking effects.
