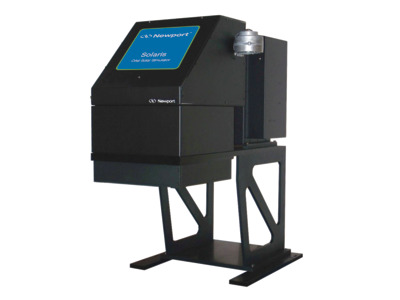

Solaris Solar Simulator, Class A+AA, IEC, 1600 W Xenon, 12 x 12 in.
The SOLARIS-8 is a Class A+AA Solar Simulator with a 1600 Watt Xenon, Ozone Free source illuminated over a 12 inch x 12 inch area, certified to IEC 60904-9:2020 standards for Spectral Match, Spatial Non-Uniformity of Irradiance, and Temporal Instability of Irradiance. This model uses a single lamp design to meet performance criteria without compromising the 1 SUN output power.
Specifications
Simulator Class
Class A+AA
Lamp Type
Xenon
Lamp Wattage
1600 W
Output Beam Size
12 x 12 in.
Beam Uniformity
≤2 %
Beam Divergence, Half Angle
<±1.5 °
Typical Output Power
100mW/cm2 (1 Sun)±20% Adjustable 0.1 to 1.0 Sun with Attenuator
Spectral Match Classification
A+ (IEC 60904-9 2020)
Temporal Instability
≤0.5% STI≤2.0% LTI
Temporal Instability Classification
A (IEC 60904-9 2020)
Uniformity
≤2 %
Uniformity Classification
A (IEC 60904-9 2020)
Working Distance
12.0 ± 0.5 in.
Line Regulation
0.01%
Power Requirements
Lamp Housing: 95-264 VAC / 3A (Max) / 47 - 63 Hz Power Supply: 190-264 VAC / 15A (Max) / 47 - 63 Hz
