Vibration Isolator Set, SL-1200 LabLegs, 19.5 in., 7200 lb. Load, Qty 6

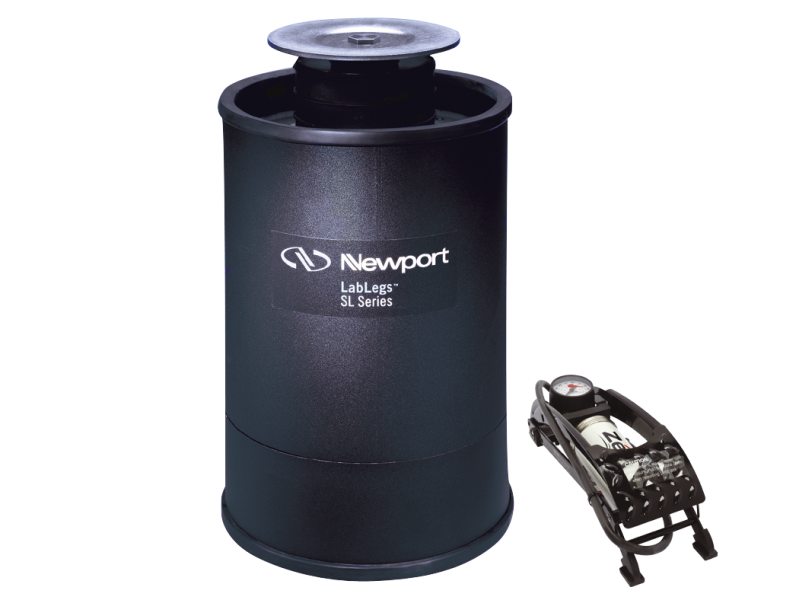

SL Closed Pneumatic Isolators without Re-Leveling

The SL-1200-619.5 LabLegs™ Vibration Isolator set offers vibration isolation at a very affordable price. The set includes (6) 19.5 inch isolators with a 7200 lb total load capacity. The isolators remove floor vibrations in the 10 Hz to 50 Hz range and support a wide variety of less rigorous research and production applications.

Specifications

Technical Specs

Load Capacity per Isolator
1200 lb (544 kg)
Isolator Height
19.5 in. (495.3 mm)
Number of Isolators
6
Tie Bar Flange
No
Horizontal Isolation, Resonance
1.5 Hz
Horizontal Amplification at Resonance
13 dB
Horizontal Isolation, 10 Hz
98%

Vertical Isolation, Resonance
3.2 Hz
Vertical Amplification at Resonance
9 dB
Vertical Isolation, 10 Hz
96%
Maximum Air Pressure
80 psi (551 kPa)
Crated Weight
300 lb

Load Capacity per Isolator
1200 lb (544 kg)
Isolator Height
19.5 in. (495.3 mm)
Number of Isolators
6
Tie Bar Flange
No
Horizontal Isolation, Resonance
1.5 Hz
Horizontal Amplification at Resonance
13 dB
Horizontal Isolation, 10 Hz
98%

Vertical Isolation, Resonance
3.2 Hz
Vertical Amplification at Resonance
9 dB
Vertical Isolation, 10 Hz
96%
Maximum Air Pressure
80 psi (551 kPa)
Crated Weight
300 lb
