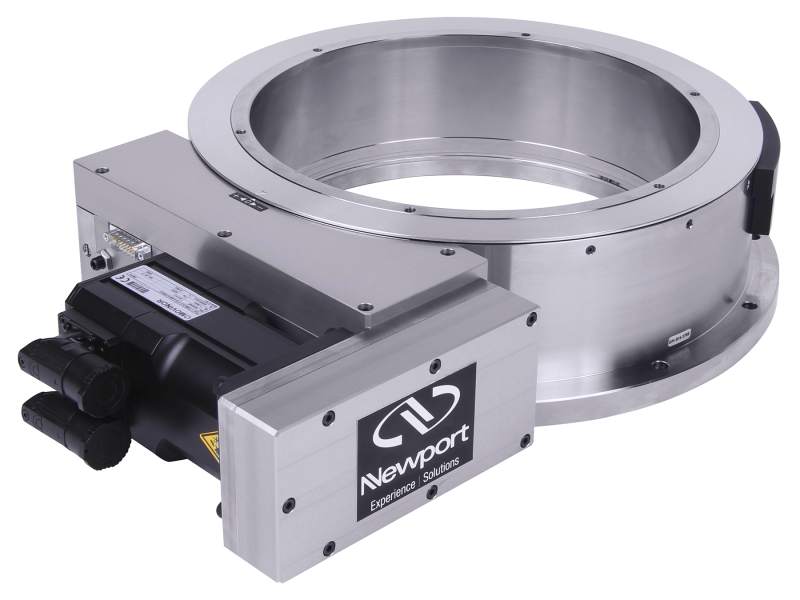

Motorized Rotation Stage, 240 mm, High-Sensitivity, High Torque
The RVU240HAHS High Accuracy and High Torque Rotation Stage were initially designed to meet the specifications of large mirror mounts built for a high power laser facility and for use in a ISO-7 clean environment. The main screw and gear remain the same as on the standard RV stage but the screw is mounted rigidly on the worm gear, thus resulting in higher stiffness. In addition special ball bearings are used to get a high axial rigidity on the main screw.
Contact Inside Sales Support team to discuss application requirements and get a quote for the solution that best suits your needs.
Specifications
Angular Range
±170°
Maximum Speed
40°/s
Minimum Incremental Motion
0.20 mdeg
Maximum Torque
130 N·m
Centered Load Capacity
4000 N
Uni-directional Repeatability, Typical
±0.07 mdeg
Uni-directional Repeatability, Guaranteed
±0.10 mdeg
Bi-directional Repeatability, Typical
±0.4 mdeg
Bi-directional Repeatability, Guaranteed
±0.6 mdeg
Accuracy, Typical
±2.0 mdeg
Accuracy, Guaranteed
±2.5 mdeg
Wobble, Typical
±4.0 µrad
Wobble, Guaranteed
±8.0 µrad
Eccentricity, Typical
±0.8 µm
Eccentricity, Guaranteed
±2.0 µm
Inertia
100 kgm2
Transversal Compliance
0.3 µrad/Nm
Origin
Optical, centered
Origin Repeatability
±0.1 mdeg
Encoder Resolution
0.05 mdeg
MTBF
20,000h (25% load, 10% duty cycle)
Diameter
240 mm
Aperture Diameter
175 mm
Connector Type
DB15 Male for EOR, Origin & Encoder/Dedicated connectors for motor.
Thread Type
M5
Weight
17 kg
Compliance
RoHS 3, CE
