Optical Post Clamp, Right-Angle, 0.5 in to 1.0 in Diameter Posts

Post-Joining Angle Clamps

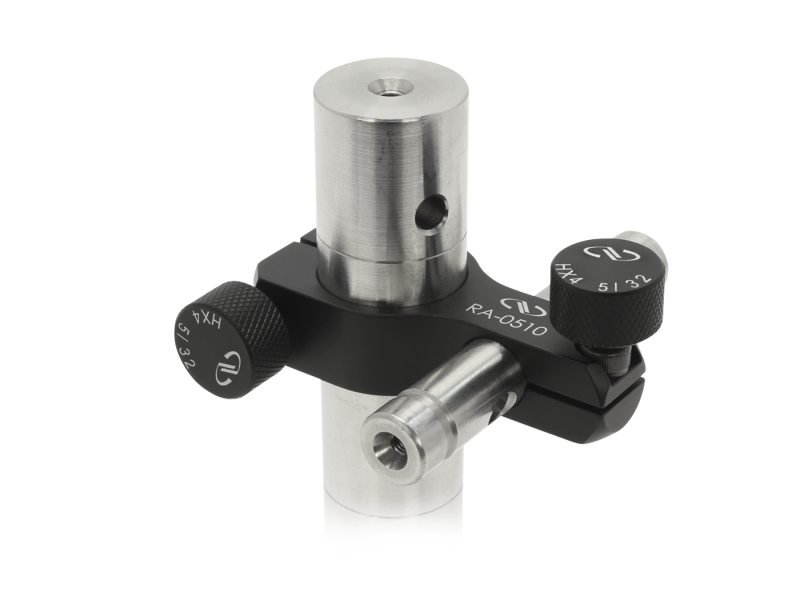

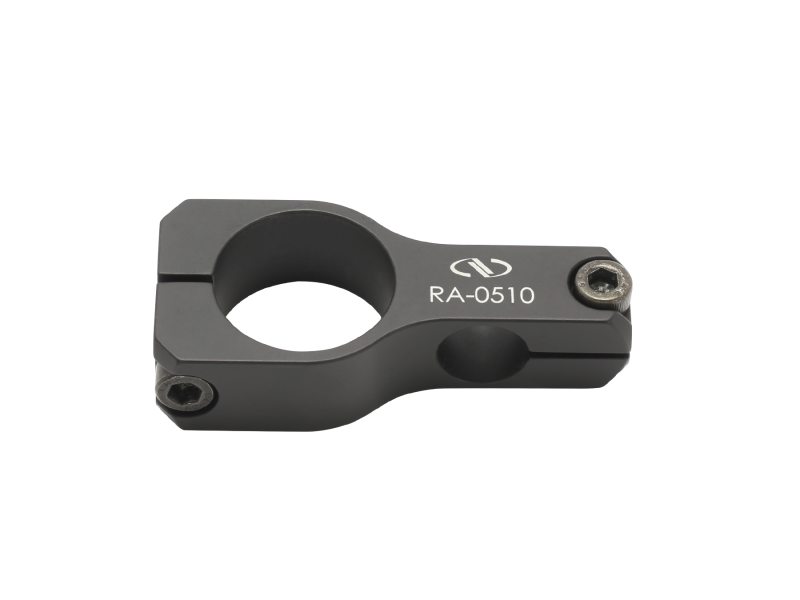

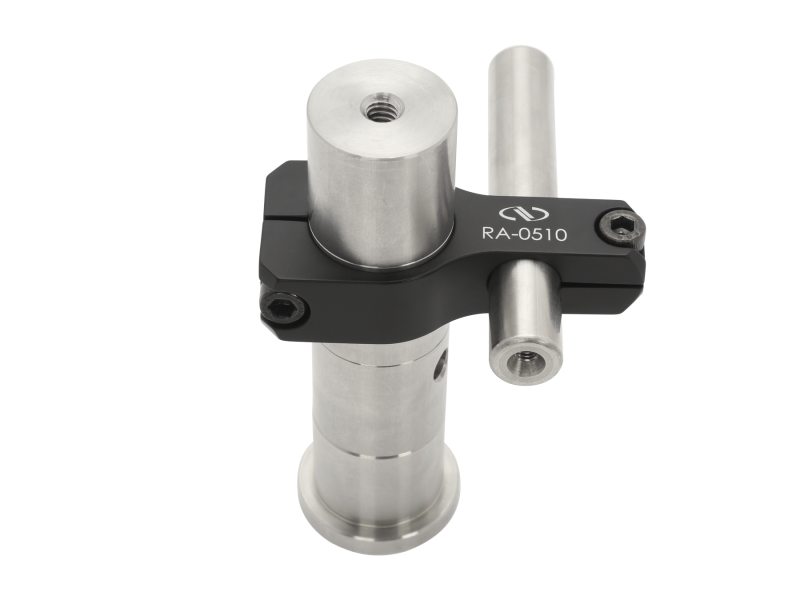

The RA-0510 optical post clamp is used to mount a 1 inch post and 0.5 inch post at a 90 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool. Posts and Universal Hex Knobs sold seperately.

Specifications

Technical Specs

Type
Right-Angle Post Clamp
Post Joining Angle
90°
Post Diameter
12.7 to 25.4 mm

Pack Quantity
1

Type
Right-Angle Post Clamp
Post Joining Angle
90°
Post Diameter
12.7 to 25.4 mm

Pack Quantity
1

Resources & Downloads

2D Product Drawings

RA-0510.pdf(39 kB, PDF)

Other

MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
