Optical Post Clamp, Right-Angle, 0.5 in to 0.31 in Diameter Posts

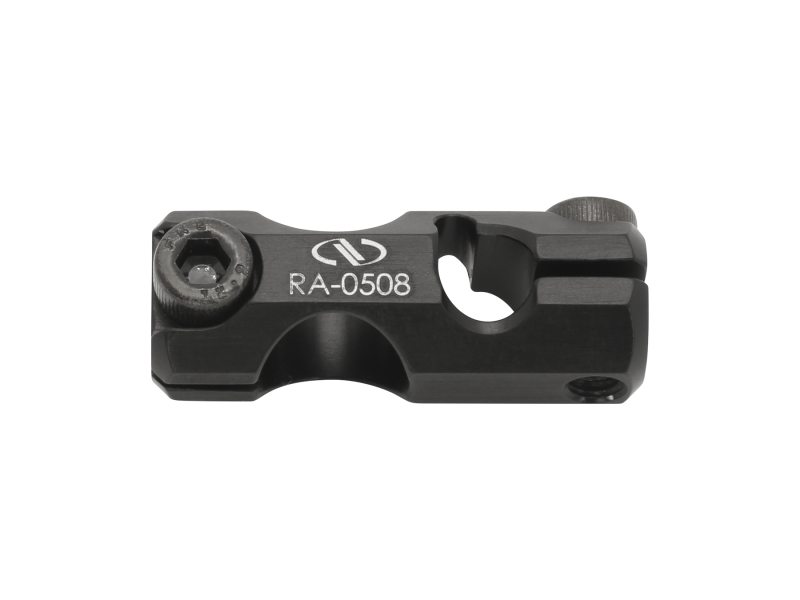

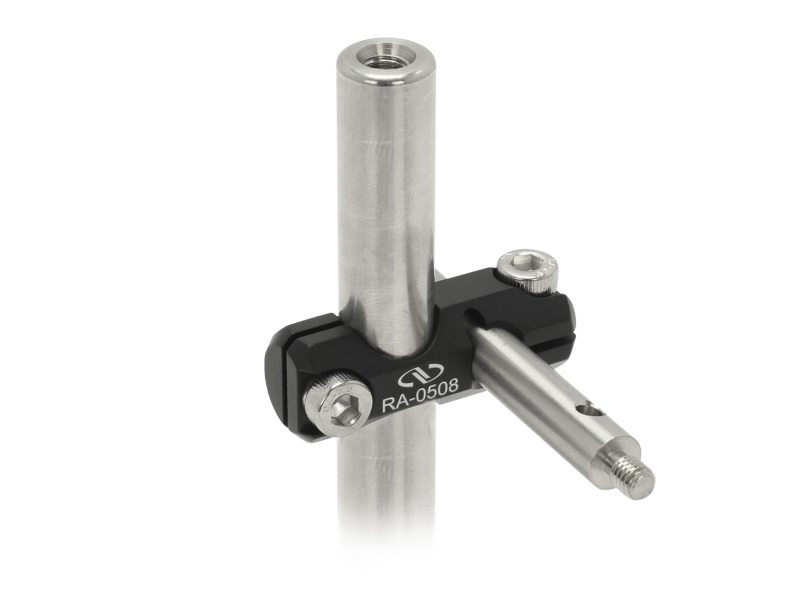

The RA-0508 optical post clamp is used to mount a 0.5 inch and 0.31 inch post at a 90 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool.

Specifications

Technical Specs

Type
Right-Angle Post Clamp
Post Joining Angle
90°
Post Diameter
12.7 to 8.0 mm

Pack Quantity
1

Type
Right-Angle Post Clamp
Post Joining Angle
90°
Post Diameter
12.7 to 8.0 mm

Pack Quantity
1

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

RA-0508.pdf(36.4 kB, PDF)

Other

MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf(698.3 kB, PDF)
