PC-0505 Optical Post Clamp

Optical Post Clamp, Parallel, 0.5 in Diameter Posts

Model: PC-0505

$16.50

In Stock

Compare

Add to List

Product Series Overview

Post-Joining Angle Clamps

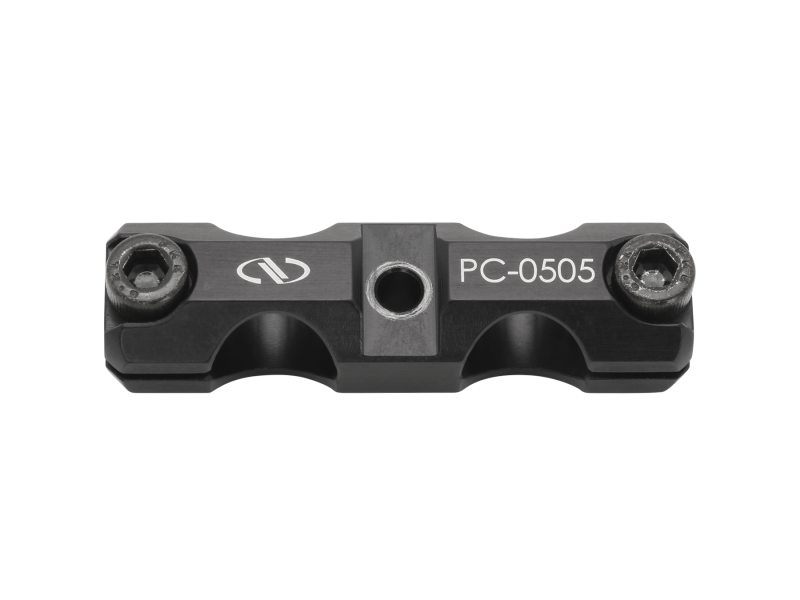

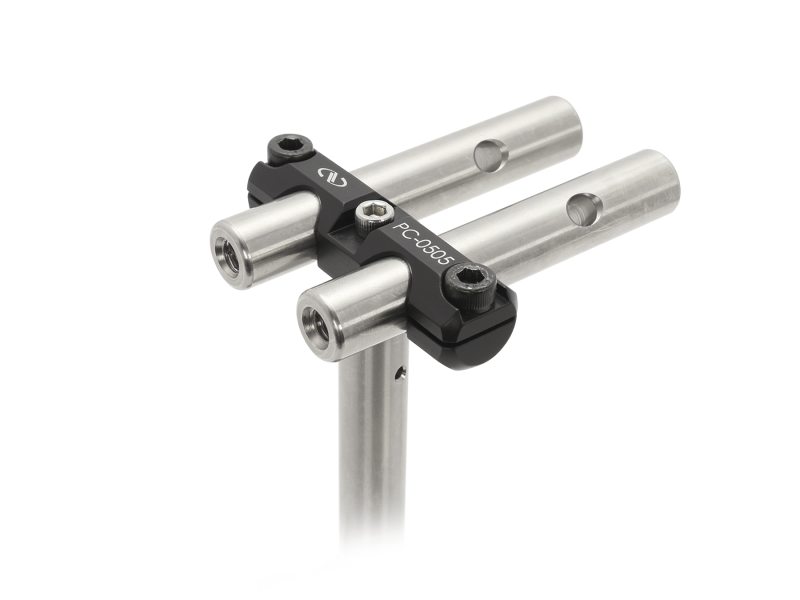

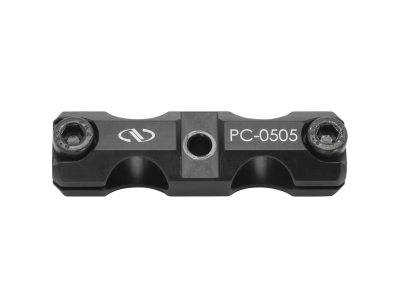

The PC-0505 optical post clamp is used to mount two 0.5 inch posts parallel to each other and at the end of another 0.5 inch post. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool. Posts and Universal Hex Knobs sold seperately.

Specifications

Technical Specs

Type

Parallel Post Clamp
Post Joining Angle

180°
Post Diameter

12.7 to 12.7 mm

Pack Quantity

1

Type

Parallel Post Clamp
Post Joining Angle

180°
Post Diameter

12.7 to 12.7 mm

Pack Quantity

1

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PC-0505.pdf (34.5 kB, PDF)

Other

MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf (698.3 kB, PDF)
