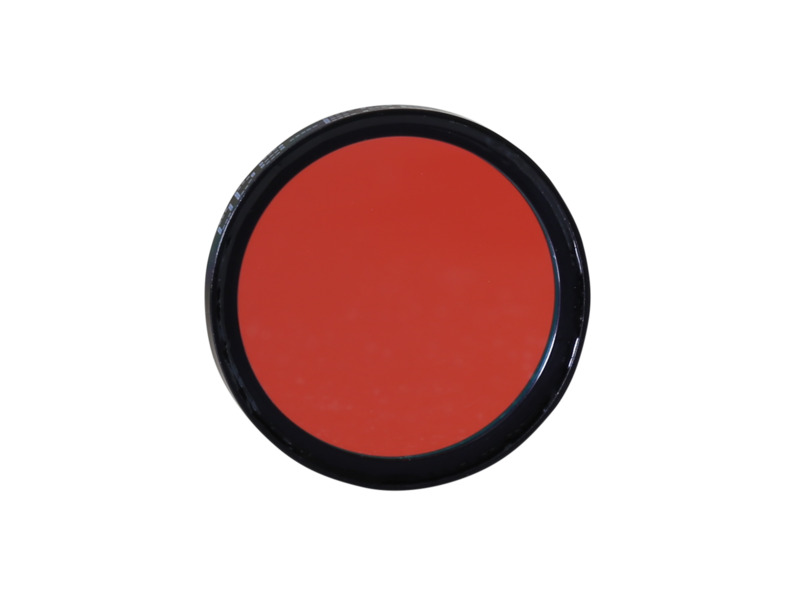

ODiate® Excitation Filter, 25.0 mm, 626 nm CWL, 52 nm FWHM
Model: OD8-EX626-52-B
Product Series Overview
ODiate® Fluorescence Excitation FiltersThe OD8-EX626-52-B Excitation Filter is specified for excitaiton of Cy5™ and supports similar alternative fluorophores, designed in conjunction with
Alternate Fluorophores
In addition to Cy5™ the following fluorophores are also compatible with this set:
Abberior STAR 635, Abberior STAR RED, Alexa Fluor® 647, Alexa Fluor® 660, APC, ATTO 635, ATTO 647, ATTO 655, BODIPY® 650/665-X, C5-Thiacyanine, Carboxynapthofluorescein, CellMask Deep Red, CF 640R, CF 647, DiD, DRAQ5, DY-635, DY-636, DY-647, DY-650, DY-651, DY-656, EVOblue-30, FluoSpheres® Dark Red, HCS CellMask Deep Red, HCS NuclearMask Deep Red, HiLyte Fluor 647, HiLyte Plus 647, LIVE/DEAD® Fixable Far Red Dead Cell Stain, MitoTracker® Deep Red, Nile Blue (EtOH), Nile Blue (MeOH), NirFP, Oxazine 1, PromoFluor-647, Quasar® 670, Spectrum Far Red, SYTO® 60, SYTO® 62, Vybrant® DyeCycle Ruby.
Optimized Coatings and Engineering Expertise
Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.
Environmental Stability and Physical Durability
The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.
Specifications
- TypeFluorescence Excitation Filter
- FluorophoresCy5™
- MaterialBOROFLOAT® 33
- Center Wavelength626 nm
- FWHM52 nm
- Angle of Incidence0°±5°
- Cone Half-angle<7°
- SizeØ25.0 mm
- Size Tolerance+0.0/-0.1 mm
- Thickness2.0 mm (substrate)
3.5 mm (housing) - Thickness Tolerance±0.1 mm
- Surface Quality60-40 scratch-dig
- TransmissionTavg≥96% 603 - 649 nm
- Parallelism≤10 arc seconds
- Humidity ResistancePer MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
- Enhanced Emission Blocking Range≥ OD10 avg, 668 - 717 nm (verified as ≥ OD8 avg)
- Blocking Range #1≥ OD6 avg, 300 - 588 nm
- Blocking Range #2≥ OD4 @ 658.5 nm
- Blocking Range #3≥ OD6 avg, 662 - 900 nm
- Blocking Range #4≥ OD3 avg, 900 - 1100 nm
- Temperature Range-50 to 100°C
Resources & Downloads
Literature
ODiate Fluorescence Filter Sets Datasheet(1.7 MB, PDF)
Other

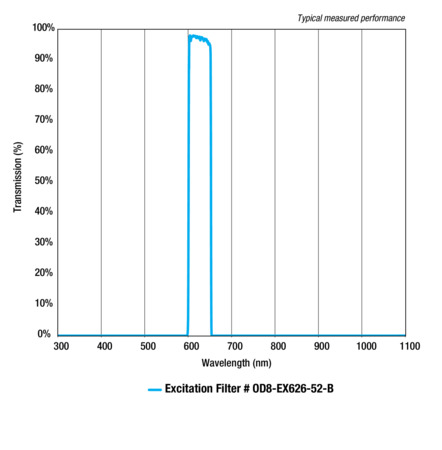

OD8-EX626-52-B Cy5 Plots(499.9 kB, XLSX)
