Optical Rail Carrier, Miniature, 8-32 (M4) CLR, MRL Series
Optical Rail Carrier, Miniature, 8-32 (M4) CLR, MRL Series
Model: MCC
Product Series Overview

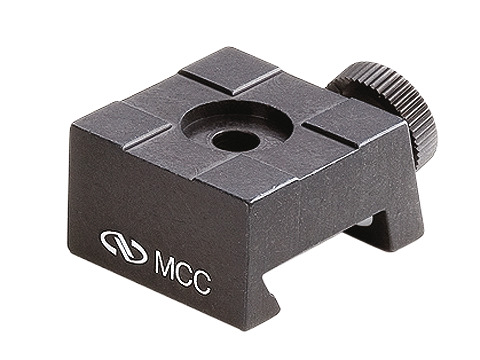

19 mm Miniature Optical Rails & CarriersThe MCC Mini Rail Channel Carrier is designed to be used with the MRL Series rails and is specifically used for vertical mounting of rails. Guide channels are cut into the top of this carrier which are used to square-up the rail prior to mounting it via the 8-32(M4) clearance hole. Spring-loaded hard polymer guides along the mating surfaces of the carriers ensure wobble free sliding motion and dependable linear alignment. By backing out the clamping screw, any carrier can be positioned along a rail without removing other components with a simple snap down motion. Then just tighten the screw fully for creep free clamp down. These one-piece aluminum carriers present a low profile and allow close spacing between components.
Resources & Downloads
2D Product Drawings
MCC-ART-25per-S(77.1 kB, PDF)
Other
MCC RoHS Certificate(277.2 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | M-MRL-3Optical Rail, Miniature, 75 mm, 19.1 mm Width, M4 Thread and M6 CLR | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

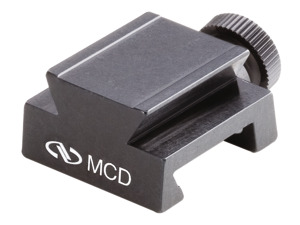

 | MCDOptical Rail Carrier, Dovetail, Miniature Rail, MRL Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

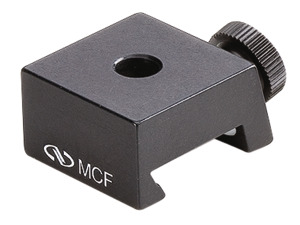

 | MCFOptical Rail Flat Carrier, 1/4-20 (M6) CLR, MRL Series | FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
