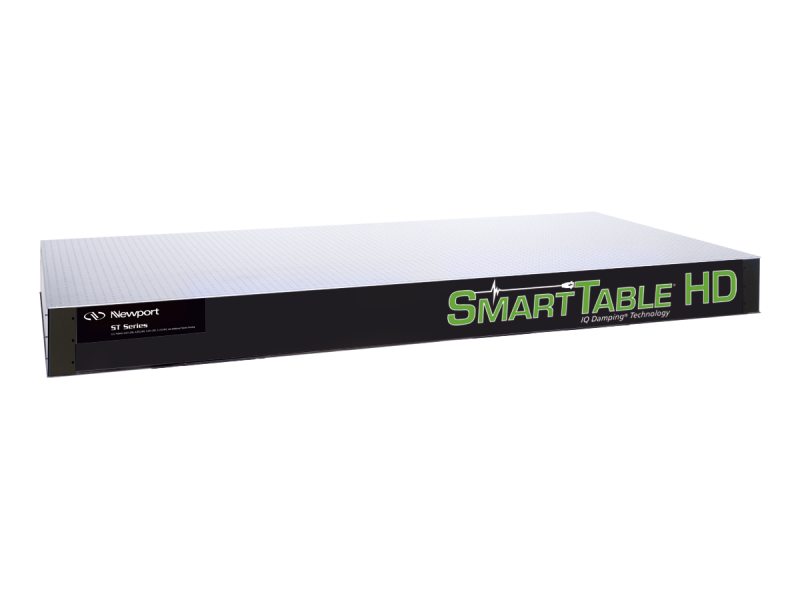

Optical Table, Hybrid Damped SmartTable®, 1500 x 3000 mm, 457 mm Thick, M6

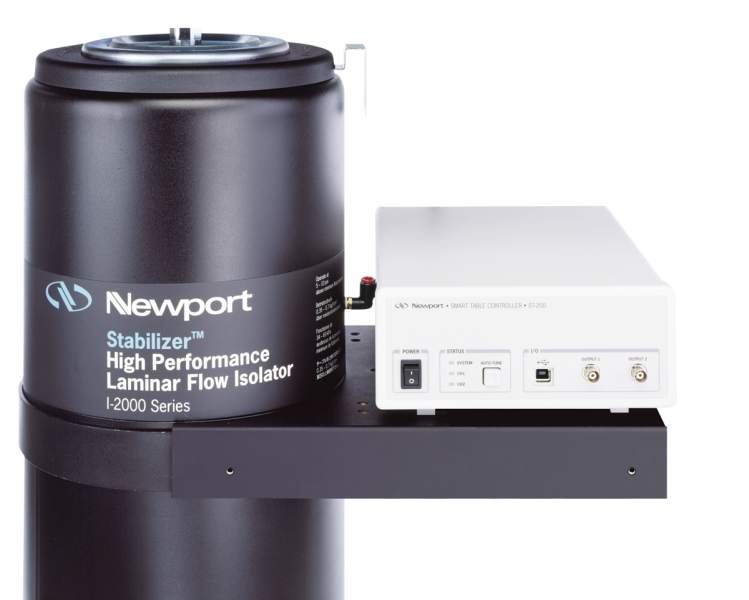

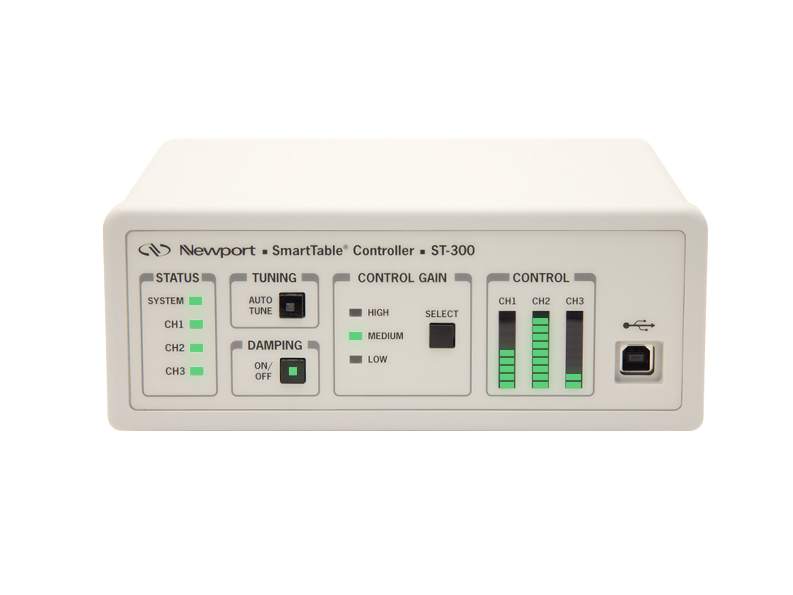

The M-SST-510-18 SmartTable® HD Series uniquely combines the powerful IQ Damping Technology® with passive precision tuned damping technology used in RS series tables. The two technologies compliment each other, creating the highest performance table in the industry. The included ST-300 SmartTable Controller can be used in a stand-alone (no computer required) mode and is also USB2 compatible. When operating in the stand-alone mode SmartTable HD automatically tunes the table to maximize table damping independent of load. When connected to a computer via the USB2 port, the included software allows users to further fine tune and calibrate the table to the experiment at hand and gather vibration data in both the frequency and time domains. Isolators are sold separately
Specifications
Type
Optical Table Top
Not Included
Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Tuned Damping
2 Narrowband Precision Tuned Dampers
Active Damping
2 IQ Active Dampers
Structural Damping Range
80-550 Hz
Width
1500 mm
Length
3000 mm
Thickness
457 mm
Working Surface
4.8 mm thick 400 series ferromagnetic stainless steel
Surface Flatness
± 0.1 mm over 600 mm square
Mounting Holes
M6
Mounting Hole Pattern
25 mm grid
Mounting Hole Borders
12.5 mm
Hole Sealing Type
Easy clean conical cup, 19 mm deep, non-corrosive high impact reinforced composite material
Bottom Skin Material
4.8 mm thick carbon steel
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.25 mm steel sheet materials, 0.76 mm triple core interface
Vibration Monitor Range
10-820 Hz, 0-0.16 mm/s
Computer Interface
USB
I/O
BNC output with sensitivity of 30V/(mm/s)
Power Requirements
100-240 VAC; 1.5A, 50/60Hz
Weight
833 kg
Crated Weight
970 kg
