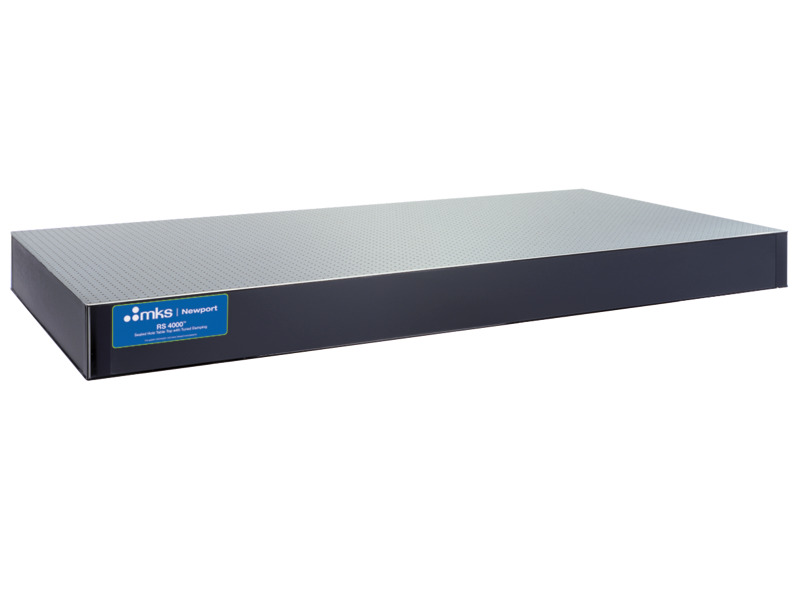

Research Grade Optical Table, 6 Tuned Dampers, 1200 x 2400 x 203 mm, M6

Model: M-RS4000-48-8

Research Grade Optical Table, 6 Tuned Dampers, 1200 x 2400 x 203 mm, M6

Model: M-RS4000-48-8

Technical Specs

  • Width
    1200 mm
  • Length
    2400 mm
  • Thickness
    203 mm
  • Mounting Holes
    M6
  • Surface Flatness
    ±0.1 mm over 600 mm square
  • Broadband Damping
    Constrained layer core, damped working surface and composite edge finish
  • Mounting Hole Pattern
    25 mm grid
  • Mounting Hole Borders
    12.5 mm
  • Working Surface
    400 series ferromagnetic stainless steel
  • Top and Bottom Skins
    4.8 mm thick with integrated damping layer
  • Hole Sealing Type
    Easy clean conical cup, 19 mm deep, non-corrosive high impact polymer material
  • Maximum Dynamic Deflection Coefficient
    0.4 x 10-3
  • Maximum Relative Motion Value
    <7.6 x 10-8 mm
  • Deflection Under Load
    <1.3 x 10-3 mm
  • Crated Weight
    528 kg
  • Weight
    440 kg
  • Non-Magnetic Surface
    No
  • Alpha-Numeric Grid Lables
    Yes
