Mounting Bracket, M-MFM-050C Clear Edge Flexure Industrial Optical Mount

Mirror Mount Mounting Adapters

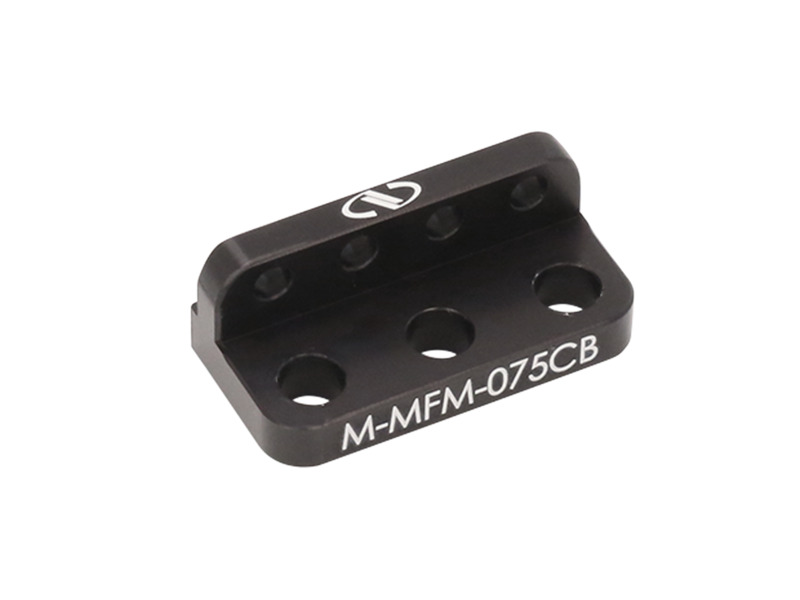

The M-MFM-075CB Mounting Base provides simple mounting and solid attachment to flat surfaces. The M-MFM-075CB positions the optical axis height of 20 mm. Compatible with M-MFM-075CL and M-MFM-075CR.

Specifications

Technical Specs

Material
Anodized Aluminum
Thread Type
M2.5 and M4 CLR
Use
M-MFM-075Cx

Weight
5 g

Material
Anodized Aluminum
Thread Type
M2.5 and M4 CLR
Use
M-MFM-075Cx

Weight
5 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

M-MFM-075CB Drawing(192.8 kB, PDF)

Other

MKS EU ROHS3 - MFM series Base(649.2 kB, PDF)
