Model: LE-115
Product Series Overview

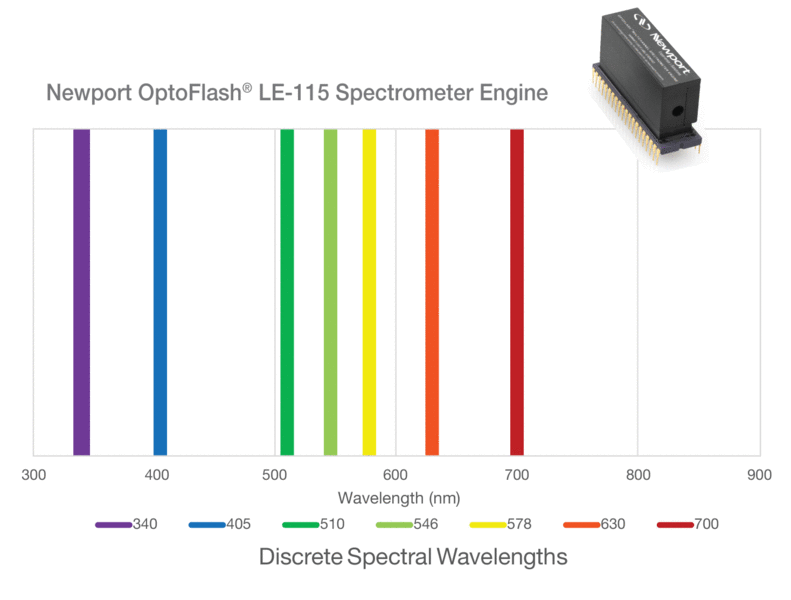

OptoFlash® Spectrometer EnginesThe OptoFlash® LE-115 multichannel spectrometer engine delivers discrete-wavelength spectral analysis in a compact platform built for measurement speed, wavelength accuracy, and integration into analytical instruments. Rapidly measure & demultiplex 7 channels of spectral data with an integrated high-sensitivity Silicon photodiode linear array. Elevate your instruments with precise, efficient measurements of 340, 405, 510, 546, 578, 630, & 700 nm wavelengths.
Specifications
- Wavelength Channel340, 405, 510, 546, 578, 630, 700
- Spectral Resolution10 nm @ λ ≤ 380 nm
8 nm @ λ > 380 nm - Stray Light> OD 3
- Linearity> OD 3.5
- DetectorSi photodiode linear array in 40-pin DIP
- ResponsivityNominal 0.43 A/W @ 633 nm
- Photodiode Reverse Bias-15 V maximum
- Entrance ApertureNominal 4 mm diameter
- Operating Temperature Range-20° C to 60° C
- Storage Temperature Range-20° C to 80° C
- MountingStandard DIP socket or direct PCB solder connection
- Dimensions51 x 16 x 25 mm (L x W x H)
- WeightNominal 30 g
Resources & Downloads
2D Product Drawings
Opto-Flash Drawing.pdf(328.8 kB, PDF)
