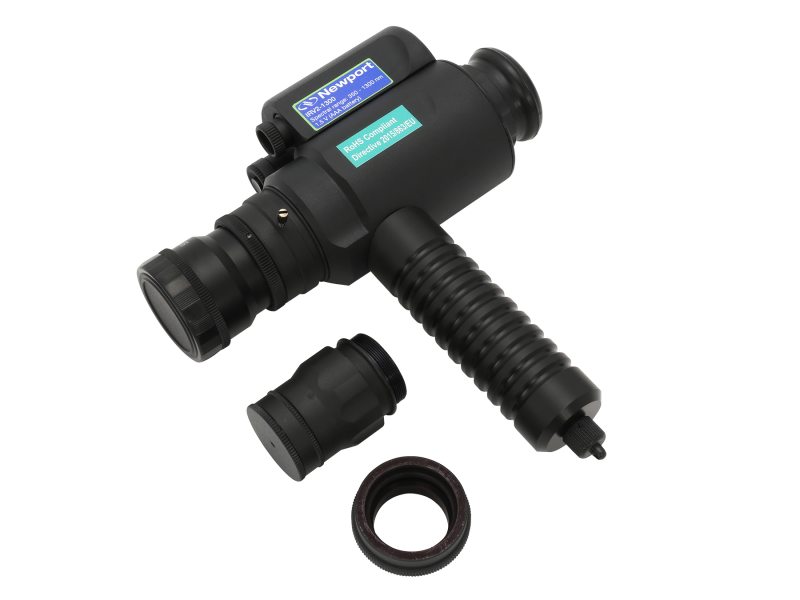

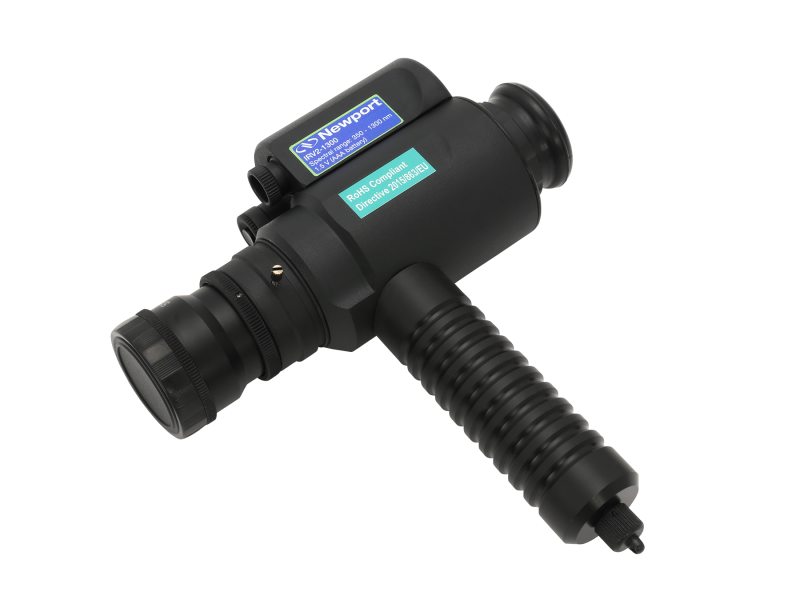

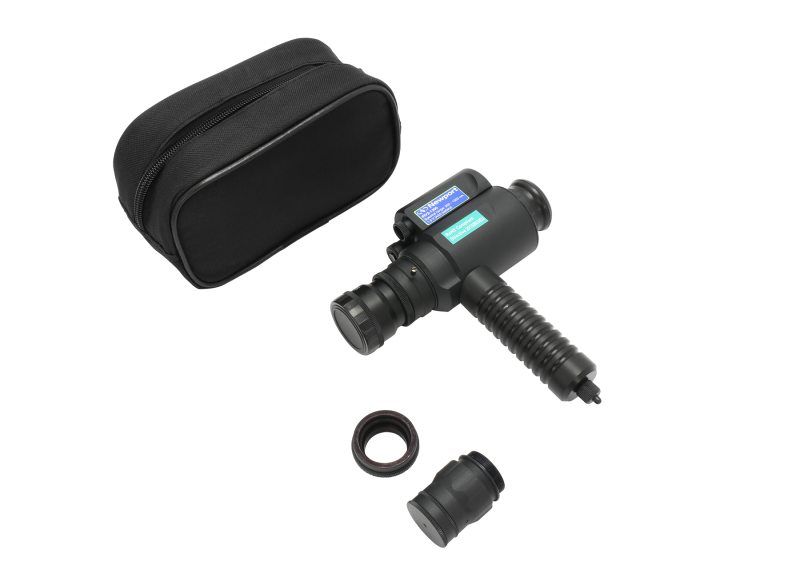

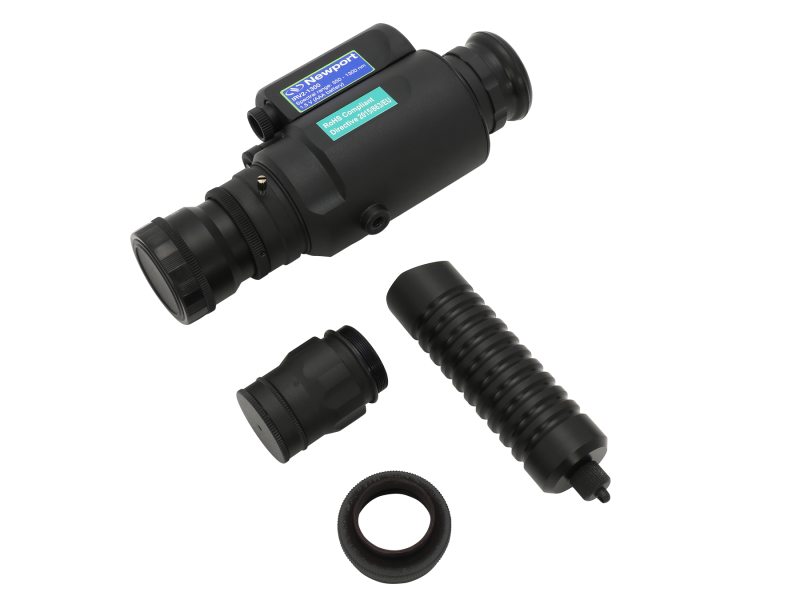

Infrared Viewer, 350-1700 nm Wavelength Range

Model: IRV2-1700

Infrared Viewer, 350-1700 nm Wavelength Range

Model: IRV2-1700

Technical Specs

  • Type
    IR Viewer

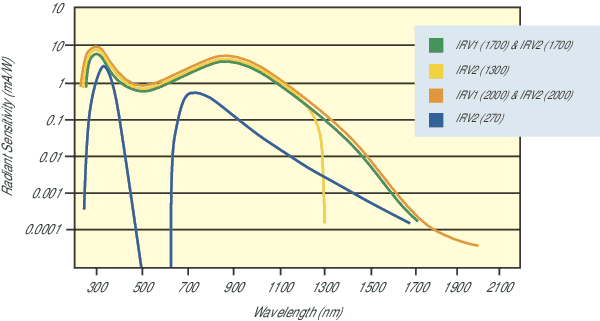

  • Wavelength Range
    350 - 1700 nm
  • Damage Threshold
    10 mW/cm²
  • Field of View
    (1x lens) 40°, (2.5x lens) 18°
  • Focus Range
    0.15 to Infinity (1x lens), 0.25 to Infinity (2.5x lens) m
  • Magnification
    1X or 2.5X
  • Resolution
    60 l/mm
  • Battery
    1 x AAA
  • Battery Life
    35 hours
  • Dimensions
    220 x 78 x 55 mm
  • Operating Temperature
    -10 to 40°C
  • Weight
    0.58 kg

Resources & Downloads

Technical Notes
Manuals

Infrared Viewer, 350-1700 nm Wavelength Range

Model: IRV2-1700

$2,175
In Stock
