HPF1205 Fluorescence Optical Filter Set

Fluorescence Optical Filter Set, Alexa Fluor 350, AMCA, DAPI

Model: HPF1205

$540.00

Show

Compare

Add to List

Product Series Overview

Fluorescence Imaging Filter Sets

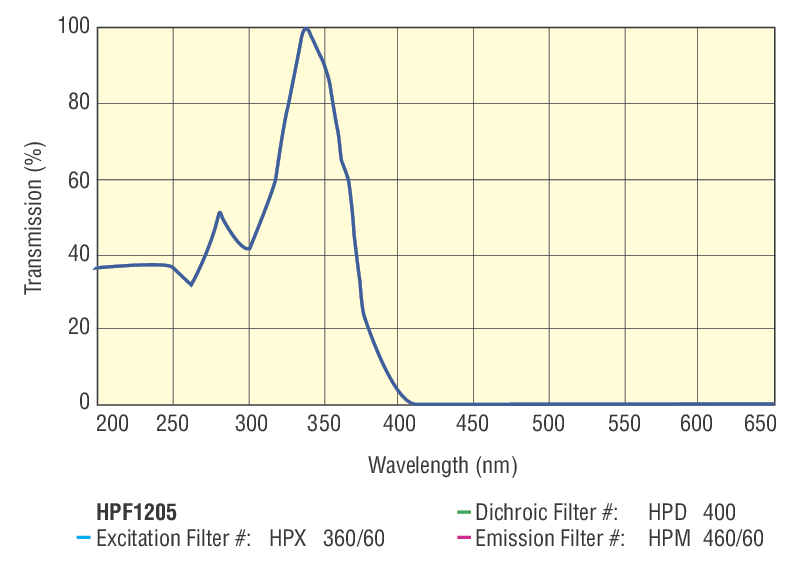

The HPF1205 HPF™ filter set includes HPX360-60

Excitation Filter, HPD400

Dichroic Filter, and HPM460-60

Emission Filter. It is ideal to use with Alexa Fluor 350, AMCA, and DAPI fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

Exceptionally high passband transmission
Maximized out-of-band blocking including extended range blocking on excitation filters
Extremely steep slopes from rejection to transmission regions
Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.

Specifications

Technical Specs

Fluorophores

Alexa Fluor 350, AMCA, DAPI

Fluorophores

Alexa Fluor 350, AMCA, DAPI

Resources & Downloads

Other

HPF1205 RoHS Certificate (264.1 kB, PDF)

Literature

Fluorescence Filters Brochure (2.1 MB, PDF)

Related Products

Fluorescence Filter Set Components

The following fluorescence filters are included with this set.

Description	Compatibility	Avail.	Price
HPD400 Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans.	UNIVERSAL	Show	$195.00
HPM460-60 Bandpass Filter, Fluorescence, 25.0 mm, 460 nm Center, 60 nm Bandwidth	UNIVERSAL	Show	$195.00
HPX360-60 Bandpass Filter, Fluorescence, 25.0 mm, 360 nm Center, 60 nm Bandwidth	UNIVERSAL	Show	$150.00
