Optical Fiber, Singlemode, 820 nm, Bend Insensitive, Reduced Cladding

Technical Specs

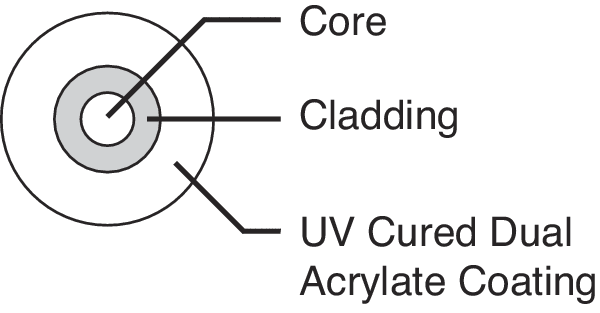

  • Index Profile
    Step
  • Fiber Type
    Singlemode
  • Mode Field Diameter, Nominal
    4.1 µm @820 nm
  • Core Diameter
    3.7 µm
  • Cladding Diameter
    80 ±2 µm
  • Coating Diameter
    135 ±5 µm
  • Operating Wavelength
    820 nm
  • Cut-off Wavelength
    730 - 810 nm
  • Buffer Coating Material
    Dual Acrylate
  • Core Concentricity
    <1.0 µm
  • Maximum Attenuation
    5 dB/km @820 nm
  • Numerical Aperture
    0.16
  • Proof Test
    100 kpsi
