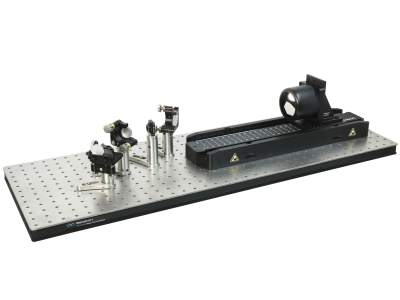

The DL-BKIT2U-S-M optical delay line kit is configured as a double pass design ultizing the UBBR-2.5-5S retroreflector assembly with Newport's 10D620ER.2 ValuMaxTM silver mirrors mounted in ULTIMA® clear edge mirror mounts. To insure maximum compatibility to Newport's motion stages, all mechanical parts in this kit are metric compatible. All screws, clamps, posts, post extensions for mounting are also included in the kit. Please purchase the motion stage and controller separately.
Here is the parts list for the DL-BKIT2U-S-M kit.
All pertinent metric screws required for assembly will be included in the kit.
| Qty | Part Number | Description |
|---|---|---|
| 4 | Silver Mirror, Economy, Borofloat, 25.4 mm, λ/10, 480-20,000 nm | |
| 1 | Adjustable Mirror Mount Kit, Optical Delay Line | |
| 1 | Iris Diaphragm, 1 to 11 mm Aperture Range, 10 Leaves | |
| 1 | Angle Bracket, 90°, 1/4-20 (M6) Slots, 25 mm Spacing | |
| 1 | Kit of screws | |
| 1 | Lens Mount, Fixed Position, 0.75 in. (19.1 mm) Diameter | |
| 3 | Optical Post, 12.7 mm Height, 25.4 mm Diameter, M4 Thread | |
| 1 | Optical Pedestal, Magnetic Base, 12.7 mm Height, 25.4 mm Diameter, M4 | |
| 1 | Optical Post, 25.4 mm Height, 25.4 mm Diameter, M4 Thread | |
| 3 | Optical Pedestal, Magnetic Base, 50.8 mm Height, 25.4 mm Diameter, M4 | |
| 1 | Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR | |
| 1 | Pedestal Spacer, 0.25 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR | |
| 4 | Clamping Fork, 1.0 in. Diameter Pedestals, 1/4-20 (M6) Slot | |
| 2 | Mirror Mount, ULTIMA®, Clear Edge, 1.0 in., 2 Locking Knobs | |
| 1 | Hollow Retroreflector, Broadband, 63.5 mm, 5 arc sec, 450-10,000 nm |
