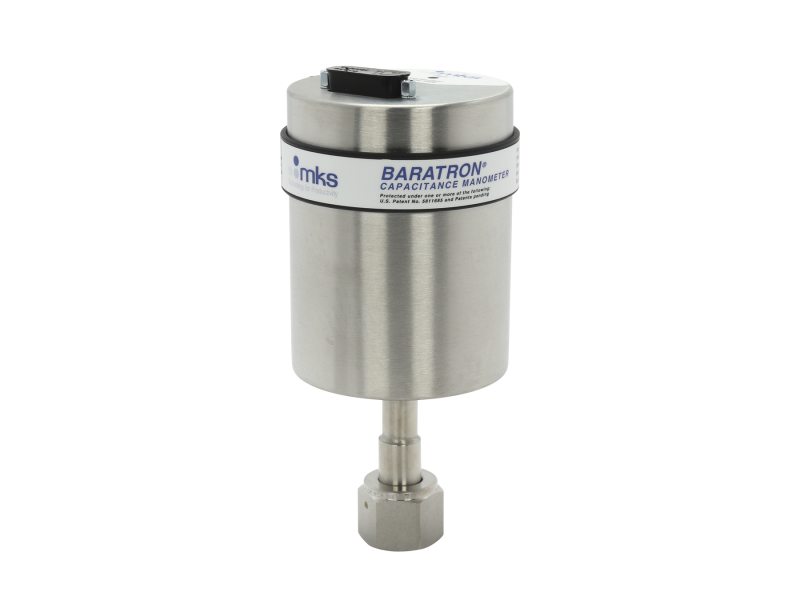

Heated Capacitance Manometer, 5000 Torr, 8 VCR, DB15, 45°C w/Status, Vertical Calibration

The 627F53TBC1B Baratron® Heated Capacitance Manometer with heater status indication features 5000 Torr Full Scale pressure measurement, a Swagelok® 8 female VCR® fitting, 15-pin D-subminiature electrical connector and vertical calibration. It is temperature controlled to 45°C, accurate to 0.12% of reading and includes updated temperature control electronics to provide superior long-term stability and repeatability. Heater and temperature status LED/switches indicate that the heater (which maintains the sensor temperature to 45°C) is in control. Based on established Baratron capacitance manometer technology, the sensor's wetted surfaces are Inconel® for excellent resistance to corrosive gases. The contemporary stainless steel package provides a cleanroom-compatible product. The product is inter-changeable with earlier Baratron® capacitance manometers and can be used with MKS power supplies, display units and pressure controllers, or the user's compatible power supply/readout devices.
