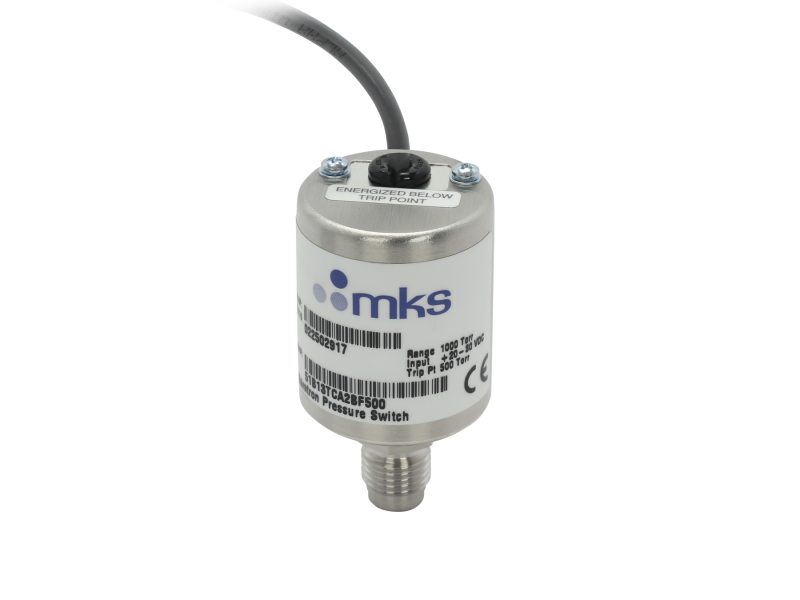

Absolute Pressure Switch, Single-Ended, 1000 Torr, 4 VCR Male, Flying Leads

Baratron® Single-ended Absolute Pressure Switches

Specifications

Technical Specs

Type
Pressure Switch
Measurement Type
Absolute
Configuration
Single-ended
Full Scale Pressure Range
1000 Torr
Accuracy
±0.5% of Full Scale (±temperature coefficient)
Temperature Coefficiant
±0.07% of Full Scale/°C
Operating Temperature Range
0 - 50°C
Volume
3.3 cc
Overpressure Limit
2 × Full Scale or 45 psia, whichever is greater
Exposed Materials
Inconel and 316L Stainless Steel
Relay Mode
Energizes below the set point

Response Time
<20 msec
Relay Contact Rating
SPDT (isolated) 1 Amp @ 30 VDC resistive
Trip Point Range
50 to 1000 Torr
Trip Point Dead Band
30 Torr
Power Requirements
20-30 VDC
Electrical Connector
2 ft. Flying Leads
Fitting Type
4 VCR male
CE Certified
Yes
