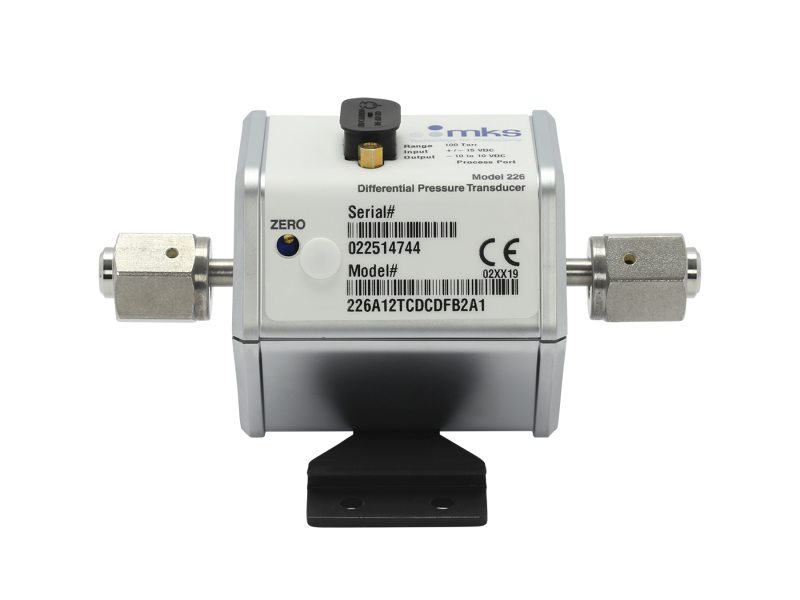

Differential Capacitance Manometer, 100 Torr, 4 VCR-F, DB9, 0-10 VDC
Differential Capacitance Manometer, 100 Torr, 4 VCR-F, DB9, 0-10 VDC
Model: 226A12TCDCDFB2A1
Specifications
- TypePressure Transducer
- Measurement TypeDifferential
- Full Scale Pressure Range100 Torr
- Accuracy0.50% of Full Scale
- Resolution0.01% of Full Scale
- Zero Temperature Coefficient0.1% Full Scale/°C
- Span Temperature Coefficient0.04% of Reading/°C
- Operating Temperature Range0 to 50°C
- VolumeMeasurement Side: 1.4 cc
Reference Side: 9.0 cc
- Overpressure LimitMeasurement Side: 120% of Full Scale or 20 psi (140 kPa), whichever is higher
Reference Side: 120% of Full Scale - Exposed MaterialsMeasurement Side: Inconel
Reference Side: Inconel, ceramic, palladium, stainless steel, glass - Power Requirements±15 VDC
- Analog Output0 to 10 VDC
- CalibrationBidirectional
- Electrical Connector9-pin D-subminiature
- Fitting Type4 VCR female
