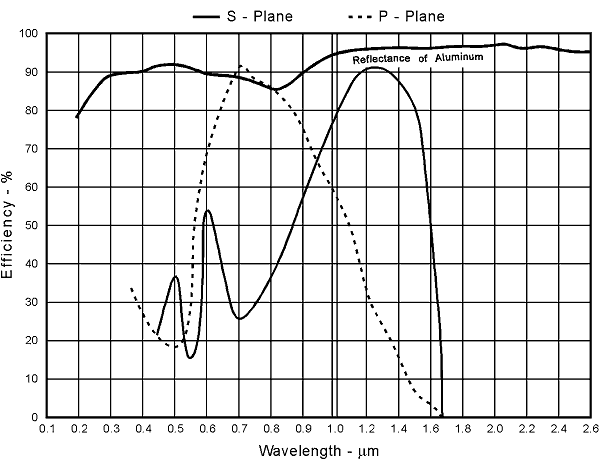

The 20RG1200-1000-2 is a plane ruled reflection grating, with dimensions of 50 x 50 x 6 mm, 1200 grooves per mm, 36.8° nominal Blaze angle, first order Littrow nominal wavelength of 1000 nm, and coated with a gold coating.
Designed for first order Littrow use, Richardson Gratings' plane ruled reflection gratings are blazed for specific wavelengths and generally have high efficiency at those wavelengths. Ruled gratings comprise the majority of diffraction gratings used in spectroscopic instrumentation and are especially useful in systems requiring high resolution.
Additional CAD file downloads are not available for this product.
20RG1200-1000-2 - Drawings
Additional drawings are not available for this product.
