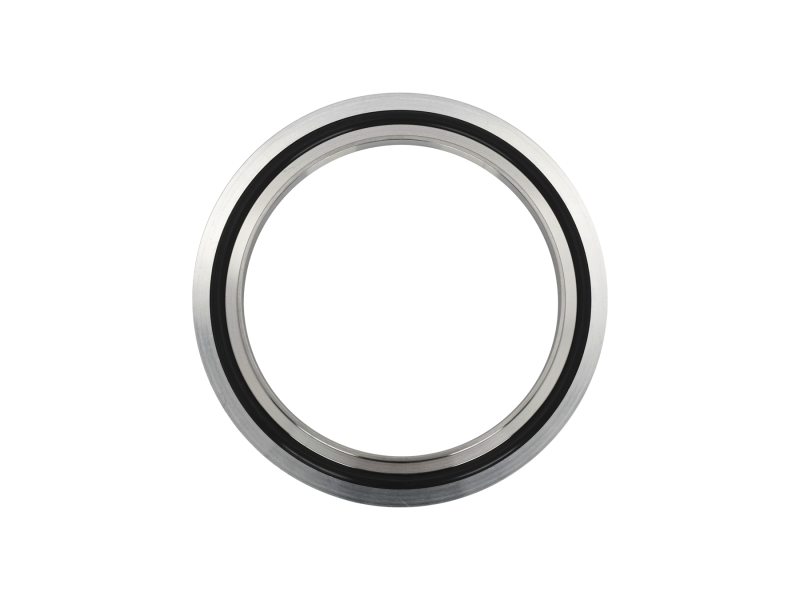

Overpressure Centering Ring, NW100 Size ISO-MF Flange, Viton O-Ring
The 100938658 Overpressure Centering Ring Assembly is designed for NW100 size ISO-MF vacuum flanges and features a Viton® O-ring, stainless steel construction, and an aluminum overpressure ring. Series 76 Centering rings are inserted between two same size ISO-MF flange faces to provide the vacuum seal when joining them. The included Viton O-ring is recommended when high temperature, chemical resistance or long installed life make them beneficial.
Specifications
- Component TypeOverpressure Centering Ring
- SeriesSeries 76
- Flange TypeISO-MF
- Flange SizeNW100
- MaterialStainless Steel
- Seal MaterialViton
- Inner Diameter99 mm

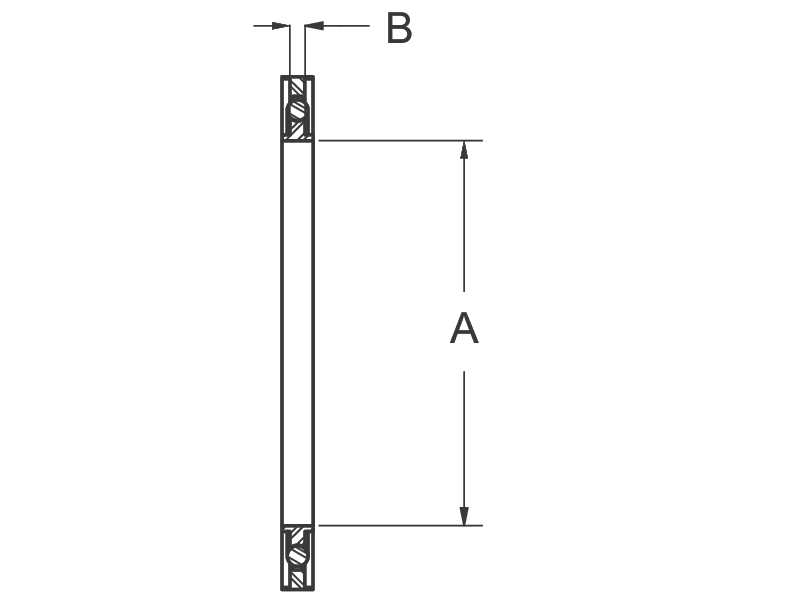

- A99 mm
- B4 mm
