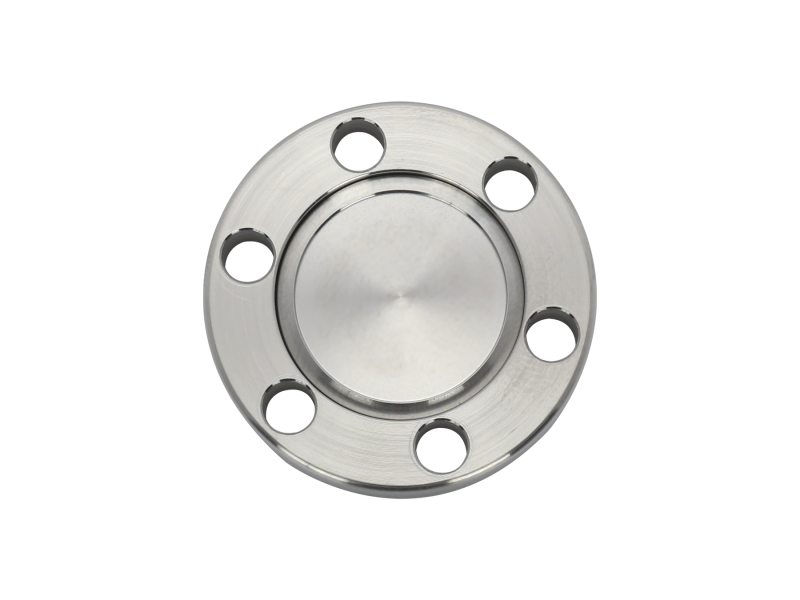

Blank CF Flange, 1.33 in., Rotatable, Thru Bolt Holes
The 100881014 Blank CF Flange is also called a "Blank-Off" flange and is used to close off unused 1 1/3 inch CF flanges in ultrahigh vacuum (UHV) piping applications. This infinitely rotatable CF flange simplifies the alignment with the bolt holes of non-rotatable CF flanges. It features six 0.172 in. (4.3 mm) flange thru-holes for joining the flange using 8-32 bolts and nuts. Series 88 CF-style fittings are the standard for ultra-high vacuum (UHV) applications. They use a flat gasket placed between two knife edges to provide a vacuum tight seal. Mating flanges have identical profiles, i.e., they are sexless, eliminating the need to store two types or worry about compatibility. Series 88 CF components are suitable for use in the ultrahigh vacuum applications to below 10-13 Torr and in temperatures from -196° to 500°C. The material characteristics of the flanges, seals, screws, and nuts are selected to provide high performance throughout a wide temperature range. Rotatable and non-rotatable flanges in sizes from mini 1-1/3 to 4-5/8 inches are available with several bore sizes to fit a range of vacuum tube diameters. CF components are joined by inserting a gasket between the two flange faces, then securing the assembly with bolts. Bolts should be tightened diagonally, versus sequentially around the circumference, for a secure vacuum seal. Assembly is cost effective through reuse of components and inch dimensional stubs, sockets, and tubes. The foolproof design provides leak tight joints consistently.
Specifications
- Component TypeBlank-Off Flange
- SeriesSeries 88
- Flange TypeCF Ultra High Vacuum
- Flange Size1.33 in.
- Rotatable FlangesOne
- Bolt Hole TypeThru Hole
- Thru Hole Diameter0.172 in. (4.3 mm)
- Number of Holes6
- Material304 Stainless Steel
- Tube ODBlank
- Thickness0.3 in.
