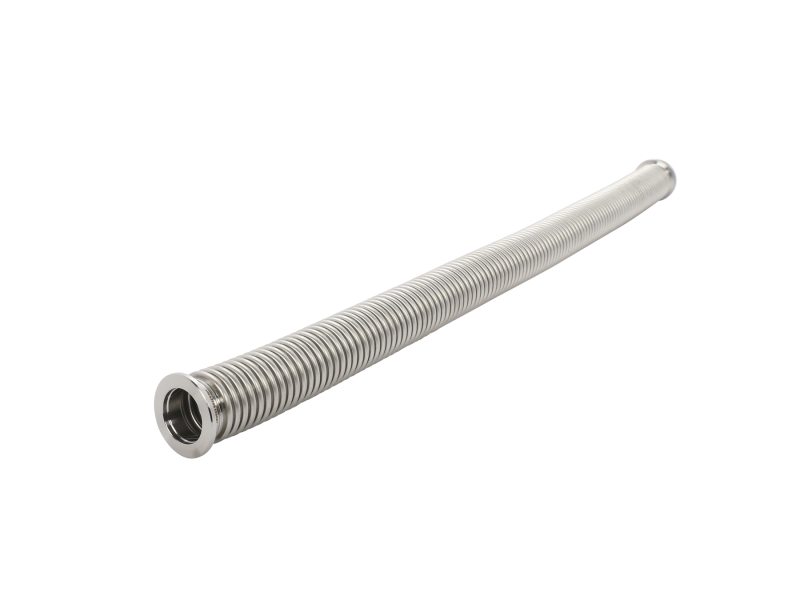

Metal Wall Vacuum Hose, NW25 ISO-KF, 610 mm Length, 0.15 mm Hose Wall
The 100319809 Thin Metal Wall Vacuum Hose is 24.0 inch (610 mm) in length with size NW25 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 1 3/8 inch static bend radius and can be compressed to a 18.12 in. (460 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Wall Thickness0.006 in. (0.15 mm)
- Static Bend Radius1.375 in.
- Spring Rate6.5 lb/in.
- Free Length610 mm
- Compressed Length460 mm
- A610 mm
- B460 mm
