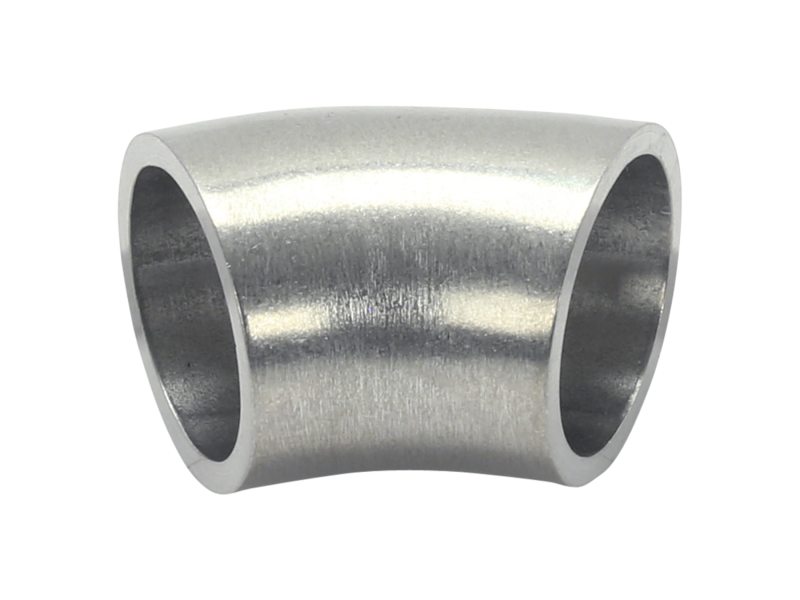

45 Degree Elbow Fitting, Buttweld, 0.75 inch O.D., 304 Stainless Steel
The 1002345075 Buttweld 45° Elbow Fitting has a 0.75 inch outside diameter and a 0.065 in. wall thickness. All elbows feature an industry standard radius of 1.5 times the tubing outside diameter. Series 23 vacuum buttweld fittings are constructed with welded, drawn, and annealed 304 stainless steel tubing for applications where minimizing the number of sealed joints is critical. Stainless steel vacuum tubing offers low outgassing under vacuum conditions, is chemically resistant, annealed for consistent leak free welding, and has minimized corrosion concentration points. Series 23 fittings are designed for internal socket type welding or external buttwelding.
Specifications
- Component Type45 Degree Elbow
- SeriesSeries 23
- Material304 Stainless Steel
- Tube OD0.75 in.
- Wall Thickness0.065 in.
- Modulus0.47 in.
- Elbow Radius1.125 in.
- A0.47 in.
