Technical Note:
Arc Lamp Spectral Irradiance Data

DivSec1a

Spectral irradiance data is shown below for our Arc Lamps. You can click on the curve for a larger image, or on a model number for complete information on a specific arc lamp. Spectral irradiance curves for other types of lamps can be found on the right. View Information on Spectral Irradiance Data and Using Spectral Irradiance Curves for complete information on how the data was obtained and how to use it.

LS-031a
Model 6282 (50 W), Model 6251 (75 W) and Model 6263 (75 W)
LS-031b
Models 6253, 6254, 6255, and 6256 (150 W)
LS-032a
Model 6297 (200 W) and Model 6247 (75 W)
LS-032b
Model 6281 (100 W), Model 6257 (100 W) and Model 6258 (300 W)

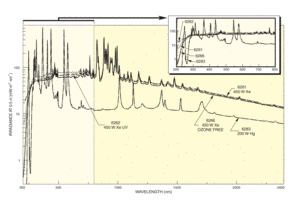

LS-033a
Model 6283 (200W), and Models 6261, 6262 & 6266 (450 W)
LS-033b
Model 6291 (200 W), Model 6292 (200 W), and Model 6267 (500 W)
LS-034a
Model 6286 (350 W) and Model 6285 (500 W)
LS-034b
Models 6269, 6271 , and 6287 (1000 W)
LS-34Aa
Model 6293 (1000 W), Model 6295 (1000 W), and Model 66142 (500 W)
LS-34Ab
Models 62711 and 62712 (1600 W)
