Mirror Mount Finder

Performance Type	Standard	Industrial	Precision	Motorized
Cost	$	$$	$$$	$$$$
Typical Applications	•Educational Systems •Prototype Development	•System OEM Integration •Production Testing	•Quantum Computing •High Resolution Imaging	•Laser Beam Steering •Adaptive Optics
Typical Applications
Performance Level	Basic	Stable & Repeatable	High Precision	Highest Precision

Type

Optic Diameter

Number of Actuators

Adjustment Screw Thread

Actuator Drive

Mechanism

Material

Actuator Locks

Actuator Orientation

Optic Mounting

Vacuum Compatibility

Product Description	Type	Optic Diameter	Number of Actuators	Adjustment Screw Thread	Sensitivity	Actuator Drive	Mechanism	Material	Actuator Locks	Actuator Orientation	Optic Mounting	Vacuum Compatibility
M05 Mirror Mount, 0.5 in., Keying Pin Holes, 2 Hex Actuators	Standard	12.7 mm	2	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
M05L Mirror Mount, 0.5 in., Keying Pin Holes, 2 Locking Hex Actuators	Standard	12.7 mm	2	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
M05-R Mirror Mount, 0.5 in., Rear Loading , 2 Hex Actuators	Standard	12.7 mm	2	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
M05-RL Mirror Mount, 0.5 in., Rear Loading, 2 Locking Hex Actuators	Standard	12.7 mm	2	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
M05-X Mirror Mount, 0.5 in., Keying Pin Holes, 3 Hex Actuators	Standard	12.7 mm	3	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
M05-XL Mirror Mount, 0.5 in., Keying Pin Holes, 3 Locking Hex Actuators	Standard	12.7 mm	3	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U50-S Mirror Mount, ULTIMA^®, Clear Edge, 0.5 in., (2) 100-TPI Allen-Keys	Precision	12.7 mm	2	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
U50-A Mirror Mount, ULTIMA^®, Clear Edge, 0.5 in., (3) 80-TPI Allen-Keys	Precision	12.7 mm	3	80 TPI	10.4 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
U50-AL Mirror Mount, ULTIMA^®, Clear Edge, 0.5 in., (3) Locking 80-TPI Allen-Keys	Precision	12.7 mm	3	80 TPI	10.4 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U50-A1 Mirror Mount, ULTIMA^®, Clear Edge, 0.5 in., (3) 100-TPI Allen-Keys	Precision	12.7 mm	3	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
U50-AL1 Mirror Mount, ULTIMA^®, Clear Edge, 0.5 in., (3) Locking 100-TPI Allen-Keys	Precision	12.7 mm	3	100 TPI	8.3 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
MFM-050 Industrial Optical Mount, Flexure, 0.5 in., 2 Allen-Key Adjustment	Industrial	12.7 mm	2	80 TPI	9 arc sec	Allen-Key	Flexure	Stainless Steel	No		Set Screw
P50-AI21 Mirror Mount, PERFORMA-i, 0.5 in., 100 TPI, 2 Locking Allen-Keys	Standard	12.7 mm	2	100 TPI	6.1 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
P50-At21 Mirror Mount, Thin Optic, 0.5 in., 100 TPI, 2 Locking Allen-Keys	Standard	12.7 mm	2	100 TPI	6.1 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Retaining Ring
SS050-F3 Mirror Mount, Suprema^®, 0.5 in., (3) 100-TPI Locking Allen-Key Actuators	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
SS050-R3 Mirror Mount, Suprema^®, Rear Load, 0.5 in., (3) 100-TPI Locking Allen	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
SS050-F3N Mirror Mount, Suprema^®, 0.5 in., (3) 100-TPI Allen-Key Actuators	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	No		Set Screw
SS050-R3N Mirror Mount, Suprema^®, Rear Load, 0.5 in., (3) 100-TPI Allen-Key	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	No		Set Screw
ST50T-R3H Mirror Mount, Suprema, Threaded Rear Load, 0.5 in., (3) 100-TPI Locking Allen-Key Actuators	Precision	12.7 mm	3	100 TPI	8.2 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
ST50T-R2H Mirror Mount, Suprema, Threaded Rear Load, 0.5 in., (2) 100-TPI Locking Allen-Key Actuators	Precision	12.7 mm	2	100 TPI	8.2 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN050-F3 Mirror Mount, Suprema^®, Clear Edge, 0.5 in., 3 Locking 100 TPI Allen-Keys	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN050-F3N Mirror Mount, Suprema^®, Clear Edge, 0.5 in., (3) 100 TPI Allen-Keys	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	No	Right-handed	Set Screw
SN050-R3 Mirror Mount, Suprema^®, Clear Edge, Rear Load, 0.5 in., 3 100-TPI Locking Allen	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN050-R3N Mirror Mount, Suprema^® Clear Edge, Rear Load, 0.5 in., (3) 100-TPI Hex	Precision	12.7 mm	3	100 TPI	8.5 arc sec	Allen-Key	Kinematic	Stainless Steel	No	Right-handed	Set Screw
ST05-F2H Mirror Mount, ZeroDrift, 0.5 in. Diameter, Two 100 TPI Hex Key	Precision	12.7 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
ST05-R2H Mirror Mount, ZeroDrift, 0.5 in., Two 100 TPI Hex Key, Rear Load	Precision	12.7 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
ST05-F3H Mirror Mount, ZeroDrift, 0.5 in. Diameter, Three 100 TPI Hex Key	Precision	12.7 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
HVM-05r Mirror Mount, Industrial, Vertical Drive, Rear Load, 0.5 in., 2 Locking Allen-Keys	Industrial	12.7 mm	2	80 TPI	5.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Top Adjust	Set Screw
HVM-.5 Kinematic Mirror Mount, Vertical Drive, 0.5 in., (2) 100-TPI Allen-Keys		12.7 mm	2	100 TPI	5.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
HVM-05i Mirror Mount, Industrial, Vertical Drive, 0.5 in., 2 Locking Allen-Keys	Industrial	12.7 mm	2	80 TPI	5.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Top Adjust	Set Screw
U50-G Gimbal Mirror Mount, ULTIMA®, Center, 0.5 in, 2 Locking 80-TPI Allen-Keys		12.7 mm	2	80 TPI	8.2 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Set Screw
U50-G21 Gimbal Mirror Mount, ULTIMA^®, Center, 0.5 in., 2 Locking 100-TPI Allen-Keys	Precision	12.7 mm	2	100 TPI	6.6 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Set Screw
MFM-050-HR Industrial Optical Mount, High-Resolution Flexure, 0.5 in., 2 100-TPI Hex	Industrial	12.7 mm	2	100 TPI	7 arc sec	Allen-Key	Flexure	Stainless Steel	No		Set Screw
AG-M050L Motorized Optical Mount, Piezo, 0.5 in. Diameter, Limit Switches	Motorized	12.7 mm	2	Piezo	0.41 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
AG-M050LV6 Piezo Mirror Mount, 0.5 in., Limit Switches, Vacuum Compatible	Motorized	12.7 mm	2	Piezo	0.41 arc sec	Motorized	Kinematic	Stainless Steel	Locked when powered down	Left-handed	Set Screw	High Vacuum (10-6 Torr)
AG-M050N Piezo Optical Mount, Compact, 0.5 in. Optics	Motorized	12.7 mm	2	Piezo	0.41 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
AG-M050NV6 Piezo Optical Mount, Compact, 0.5 in. Optics, Vacuum Compatible	Motorized	12.7 mm	2	Piezo	0.41 arc sec	Motorized	Kinematic	Stainless Steel	Locked when powered down	Left-handed	Set Screw	High Vacuum (10-6 Torr)
9871-K-V Mirror Mount, Tiny, Corner, Retaining Plate, 0.5 in., 3 Allen, Vacuum	Precision	12.7 mm	3	80 TPI	14.3 arc sec	Allen-Key	Kinematic	Stainless Steel	No	Right-handed	Retaining Plate	High Vacuum (10-6 Torr)
8885 Piezo Mirror Mount, Pint-Sized, Center Mount, 0.5 in. Diameter	Motorized	12.7 mm	2	Piezo	0.31 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw

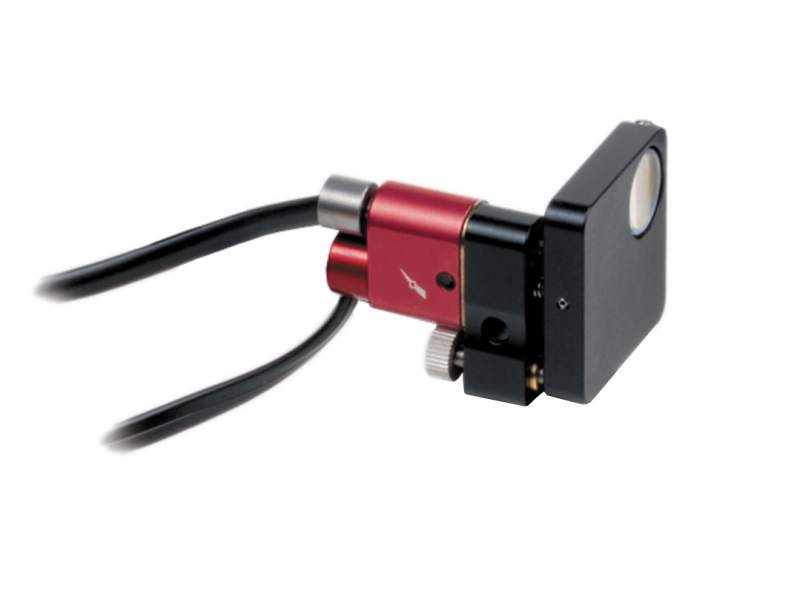

8886 Piezo Mirror Mount, Pint-Sized, Corner Mount, 0.5 in. Diameter	Motorized	12.7 mm	2	Piezo	0.31 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
9874-K Mirror Mount, Gimbal, Corner, 0.5 in., 3 Allen-Keys		12.7 mm	3	80 TPI	14.3 arc sec	Allen-Key	Gimbal	Stainless Steel	No		Set Screw
8808 Picomotor Piezo Mirror Mount, Corner, 0.5 in. Diameter, 3-Axis	Motorized	12.7 mm	3	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw
9810-3-K Mirror Mount, Stability, Top Adjust, 0.5 in., 2 Allen-Keys	Industrial	12.7 mm	2	80 TPI	7.6 arc sec	Allen-Key	Kinematic	Aluminum	No	Top Adjust	Low Wavefront Distortion
9810-3 Mirror Mount, Stability, Top Adjust, 0.5 in., 2 Knobs	Industrial	12.7 mm	2	80 TPI	7.6 arc sec	Knob	Kinematic	Aluminum	No	Top Adjust	Low Wavefront Distortion
9810-5-K Mirror Mount, Stability, Top Adjust, 0.5 in., Thick, 2 Allen-Keys	Industrial	12.7 mm	2	80 TPI	7.6 arc sec	Allen-Key	Kinematic	Aluminum	No	Top Adjust	Low Wavefront Distortion
9811-3-K Mirror Mount, Stability, Center, 0.5 in., 3 Allen-Keys	Precision	12.7 mm	3	80 TPI	8.8 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion
9811-5-K Mirror Mount, Stability, Center, 0.5 in., 3 Allen-Keys	Precision	12.7 mm	3	80 TPI	8.8 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion
9882-K Mirror Mount, Pint-Sized, Center, 0.5 in., 3 Allen-Keys	Industrial	12.7 mm	3	80 TPI	8.8 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Set Screw
8885-UHV Piezo Mirror Mount, Pint-Sized, Center Mount, 0.5 in. Diameter, UHV	Motorized	12.7 mm	2	Piezo	0.31 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw	Ultra-high Vacuum (10-9 Torr)
9882 Mirror Mount, Pint-Sized, Center, 0.5 in., 3 Knobs	Standard	12.7 mm	3	80 TPI	8.8 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Set Screw
HVM-075i Mirror Mount, Industrial, Vertical Drive, Front Load, 0.75 in., 2 Locking Allen-Keys	Industrial	19.1 mm	2	100 TPI	3.89 arc sec (pitch) 3.20 arc sec (yaw)	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
HVM-075r Mirror Mount, Industrial, Vertical Drive, Rear Load, 0.75 in., 2 Locking Allen-Keys	Industrial	19.1 mm	2	100 TPI	3.89 arc sec (pitch) 3.20 arc sec (yaw)	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
HVM-075t Mirror Mount, Industrial, Vertical Drive, Threaded, 0.75 in., 2 Locking Allen-Keys	Industrial	19.1 mm	2	100 TPI	3.89 arc sec (pitch) 3.20 arc sec (yaw)	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Retaining Ring
MFM-075 Industrial Optical Mount, Flexure, 0.75 in., 2 Allen-Key Adjustment	Industrial	19.1 mm	2	80 TPI	7 arc sec	Allen-Key	Flexure	Stainless Steel	No		Set Screw
MFM-075-HR Industrial Optical Mount, High-Resolution Flexure, 0.75 in., 2 100-TPI Hex	Industrial	19.1 mm	2	100 TPI	5.5 arc sec	Allen-Key	Flexure	Stainless Steel	No		Set Screw
MFM-075CR Industrial Optical Mount, Flexure, 0.75 in., Clear Edge, Locking Adjusters	Industrial	19.1 mm	2	80 TPI	7 arc sec	Allen-Key	Flexure	Stainless Steel	Yes	Right-handed	Set Screw

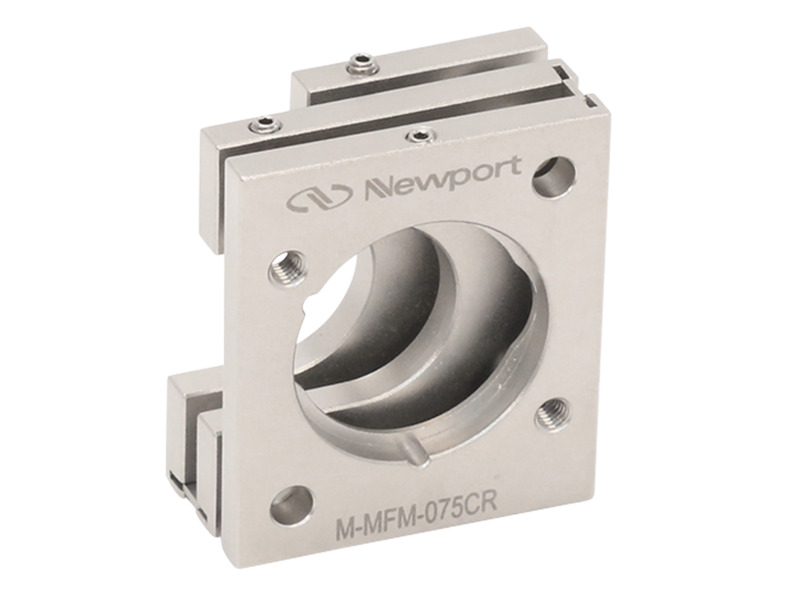

M-MFM-075CR Industrial Optical Mount, Flexure, 0.75 in., Clear Edge, Locking Adjusters, Metric	Industrial	19.1 mm	2	80 TPI	7 arc sec	Allen-Key	Flexure	Stainless Steel	Yes	Right-handed	Set Screw

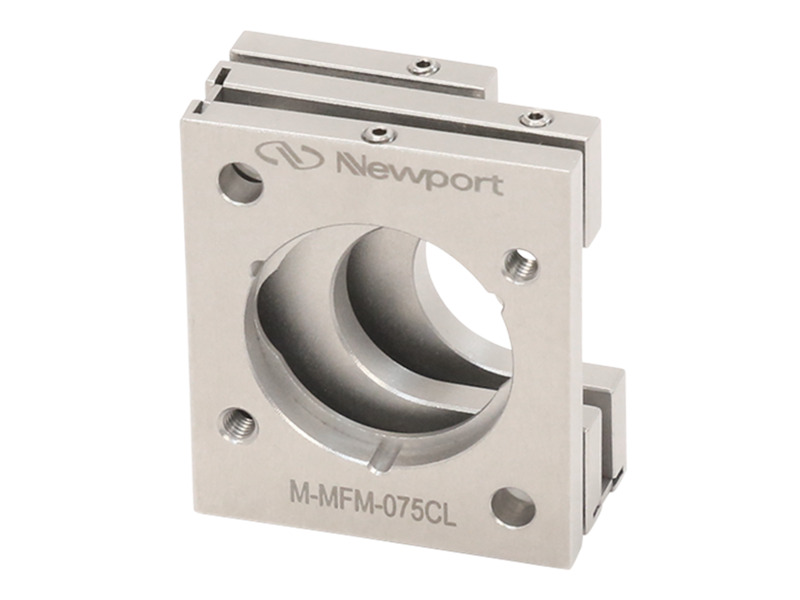

M-MFM-075CL Industrial Optical Mount, Flexure, 0.75 in., Clear Edge, Locking Adjusters, Left-Handed, Metric	Industrial	19.1 mm	2	80 TPI	7 arc sec	Allen-Key	Flexure	Stainless Steel	Yes	Left-handed	Set Screw
MFM-075CL Industrial Optical Mount, Flexure, 0.75 in., Clear Edge, Locking Adjusters, Left-Handed	Industrial	19.1 mm	2	80 TPI	7 arc sec	Allen-Key	Flexure	Stainless Steel	Yes	Left-handed	Set Screw
HVM-20Mi Mirror Mount, Industrial, Vertical Drive, Front Load, 20 mm, 2 Locking Allen-Keys	Industrial	20 mm	2	100 TPI	3.89 arc sec (pitch) 3.20 arc sec (yaw)	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
HVM-20Mr Mirror Mount, Industrial, Vertical Drive, Rear Load, 20 mm, 2 Locking Allen-Keys		20 mm	2	100 TPI	3.89 arc sec (pitch) 3.20 arc sec (yaw)	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw

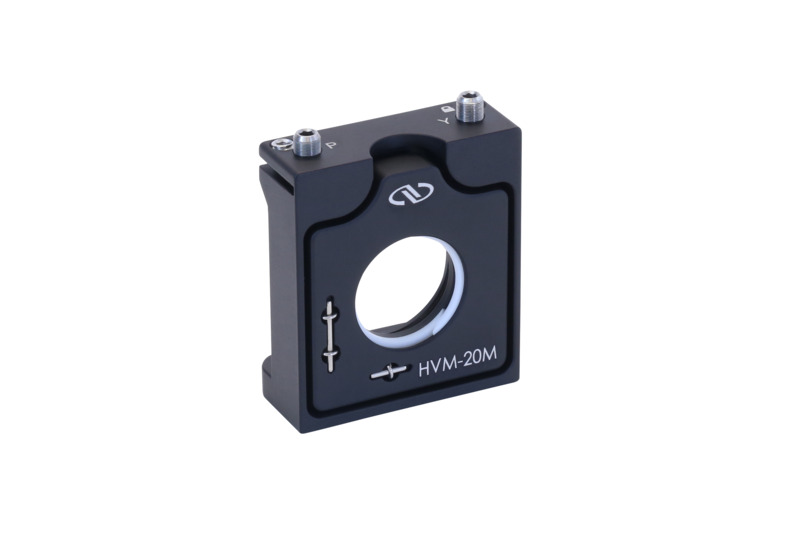

HVM-20Mt Mirror Mount, Industrial, Vertical Drive, Threaded, 20 mm, 2 Locking Allen-Keys		20 mm	2	100 TPI	3.89 arc sec (pitch) 3.20 arc sec (yaw)	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Retaining Ring
M1 Mirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	No		Set Screw
M1-RA Mirror Mount, Side-Clamp, 1.0 in. Diameter 2 Knob Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	No		Set Screw
M1-H Mirror Mount, OEM Standard, 1.0 in., 2 Hex Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	No	Right-handed	Set Screw
M1-HL Mirror Mount, OEM Standard, 1.0 in., 2 Locking Hex Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
M1-1D Mirror Mount, Lab Standard, EdgeGrip, 1.0 in., 2 Knob Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	No	Right-handed	Single Point Edge Grip
M1-CP Mirror Mount, CenterPoint, Lab Standard, 1.0 in., 2 Knob Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	No	Right-handed	Set Screw
M1Q Mirror Mount, Lab Standard, Clear Edge, 1.0 in., 2 Knob Actuators	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Set Screw
U100-A2K Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 2 Locking Knobs	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U100-A-LH-2K Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 2 Locking Knobs, Left-Handed	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	Yes	Left-handed	Set Screw

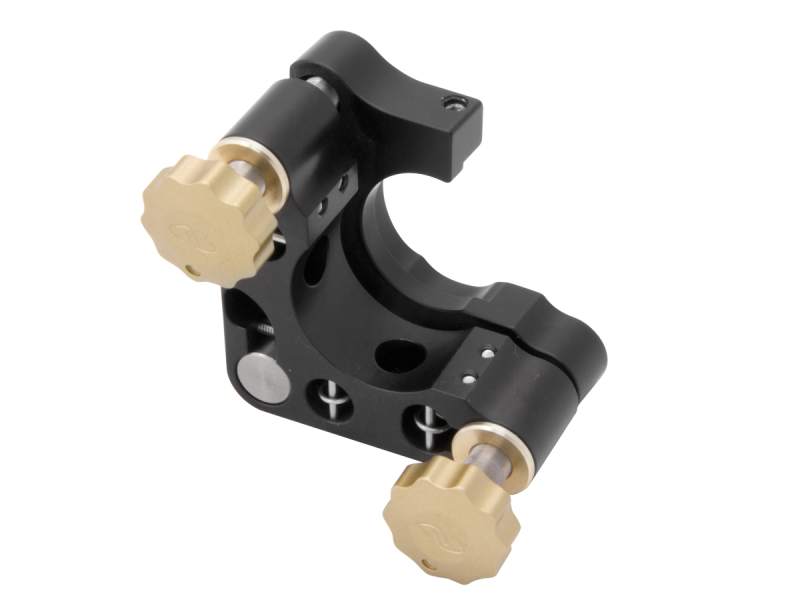

U100-A2K-170N Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., (2) 170-TPI Knobs	Precision	25.4 mm	2	170 TPI	2.2 arc sec	Knob	Kinematic	Aluminum	No	Right-handed	Set Screw
U100-A3K Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 3 Locking Knobs	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U100-A-LH-3K Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 3 Locking Knobs, Left-Handed	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	Yes	Left-handed	Set Screw
U100-A3K-170N Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., (3) 170-TPI Knobs	Precision	25.4 mm	3	170 TPI	2.2 arc sec	Knob	Kinematic	Aluminum	No	Right-handed	Set Screw
U100-S Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 3 Direct-Thread Knobs	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	No	Right-handed	Set Screw
U100-A Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., No Actuators	Precision	25.4 mm	0			Not Included	Kinematic	Aluminum		Right-handed	Set Screw
U100-A-LH Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., No Actuators, Left-Handed	Precision	25.4 mm	0			Not Included	Kinematic	Aluminum		Left-handed	Set Screw
U100-A2H Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 2 Locking Allen-Keys	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U100-A-LH-2H Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 2 Locking Allen-Keys, Left-Handed	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Left-handed	Set Screw
U100-A3H Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in, 3 Locking Allen-Keys	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U100-AC Mirror Mount, ULTIMA^®, Center, 1.0 in. Diameter, No Actuators	Precision	25.4 mm	0			Not Included	Kinematic	Aluminum		Right-handed	Low Wavefront Distortion
U100-AC2K Mirror Mount, ULTIMA^®, Center, 1.0 in., 2 Locking Knob Adjustment	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Low Wavefront Distortion
U100-A-LH-3H Mirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 3 Locking Allen-Keys, Left-Handed	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Left-handed	Set Screw
U100-AC3K Mirror Mount, ULTIMA^®, Center, 1.0 in., 3 Locking Knob Adjustment	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Low Wavefront Distortion
SU100-F2K Mirror Mount, Suprema^®, 1.0 in, Two 100 TPI Locking Knob Actuators	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes		Set Screw
P100-AI21 Mirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 2 Locking Allen-Keys	Standard	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
P100-AI31 Mirror Mount, PERFORMA-i, 1.0 in., 100 TPI, 3 Locking Allen-Keys	Standard	25.4 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
P100-AI28 Mirror Mount, PERFORMA-i, 1.0 in., 80 TPI, 2 Locking Allen-Keys	Standard	25.4 mm	2	80 TPI	4.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
P100-AI38 Mirror Mount, PERFORMA-i, 1.0 in., 80 TPI, 3 Locking Allen-Keys	Standard	25.4 mm	3	80 TPI	4.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
P100-At28 Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 2 Locking Allen-Keys	Standard	25.4 mm	2	80 TPI	4.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Retaining Ring
P100-At38 Mirror Mount, Thin Optic, 1.0 in., 80 TPI, 3 Locking Allen-Keys	Standard	25.4 mm	3	80 TPI	4.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Retaining Ring
SU100-F3K Mirror Mount, Suprema^®, 1.0 in, Three 100-TPI Locking Actuators	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes		Set Screw
SN100C-F2K Mirror Mount, Suprema^®, Clear Edge, 1.0 in, (2) 127-TPI Locking Knobs	Precision	25.4 mm	2	127 TPI	3.0 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SU100-F2K-254 Mirror Mount, Suprema^®, 1.0 in, Two 254-TPI Knob Actuators	Precision	25.4 mm	2	254 TPI	1.5 arc sec	Knob	Kinematic	Stainless Steel	No		Set Screw

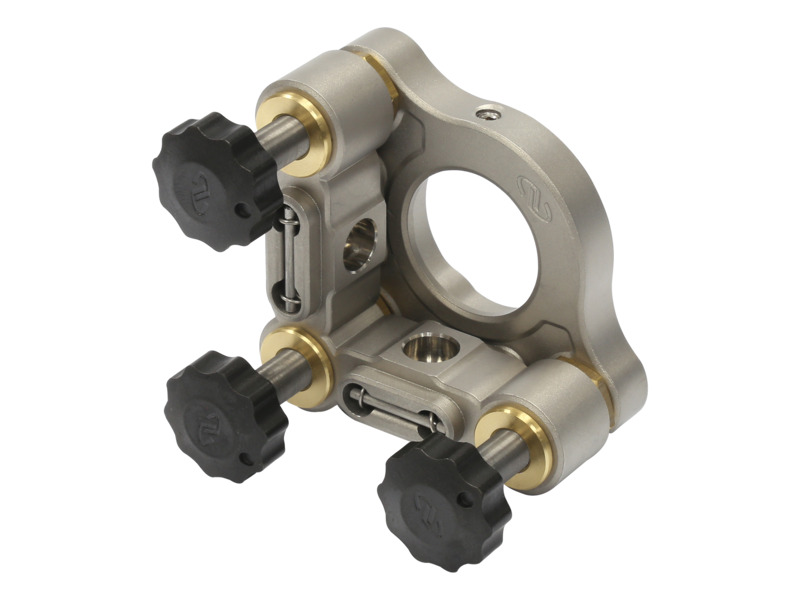

SU100-F3K-254 Mirror Mount, Suprema^®, 1.0 in, Three 254-TPI Actuators	Precision	25.4 mm	3	254 TPI	1.5 arc sec	Knob	Kinematic	Stainless Steel	No		Set Screw
SN100C-R2K-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 1.0 in., (2) 127-TPI Locking Knobs, Left-Handed	Precision	25.4 mm	2	127 TPI	3.0 arc sec	Knob	Kinematic	Stainless Steel	Yes	Left-handed	Set Screw
SN100C-F3K Mirror Mount, Suprema^®, Clear Edge, 1.0 in, (3) 127-TPI Locking Knobs	Precision	25.4 mm	3	127 TPI	3.0 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw

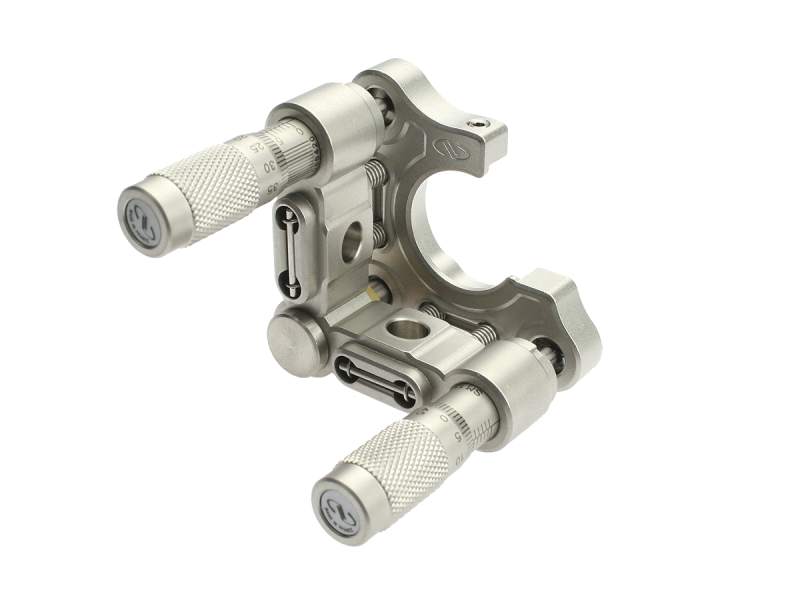

SN100C-F2M Suprema^® Clear Edge Mirror Mount, 1.0 in., (2) Micrometer Adjusters	Precision	25.4 mm	2	50 TPI	5.7 arc sec	Micrometer	Kinematic	Stainless Steel	No	Right-handed	Set Screw
SN100-F Mirror Mount, Suprema^®, Clear Edge, 1.0 in., No Adjusters	Precision	25.4 mm	0			Not Included	Kinematic	Stainless Steel		Right-handed	Set Screw
M-SN100-F Suprema^® Clear Edge Mirror Mount, 1.0 in. Diameter, No Actuators, M4	Precision	25.4 mm	0			Not Included	Kinematic	Stainless Steel		Right-handed	Set Screw

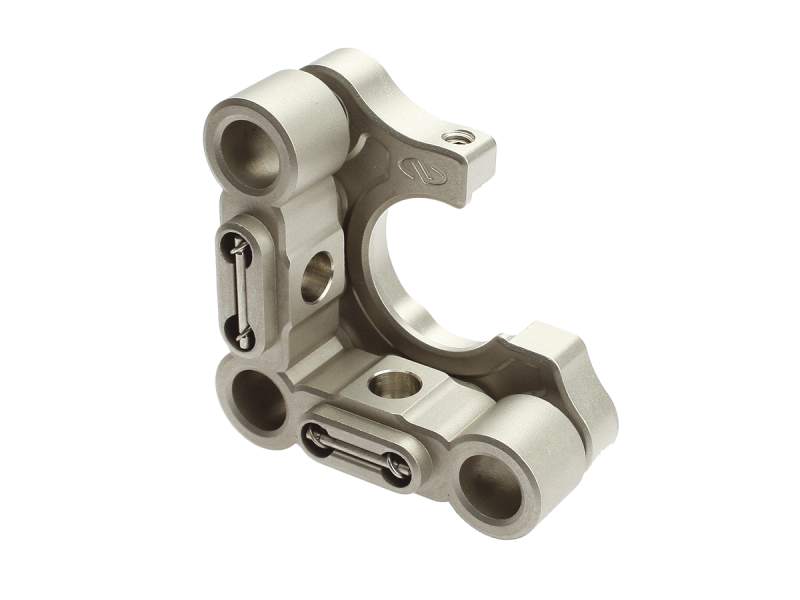

SN100C-F Suprema^® Clear Edge Mount, 1.0 in. Diameter, No Actuators	Precision	25.4 mm	0			Not Included	Kinematic	Stainless Steel		Right-handed	Set Screw
SN100C-R-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 1.0 in., No Adjusters, Left-Handed	Precision	25.4 mm	0			Not Included	Kinematic	Stainless Steel		Left-handed	Set Screw
SS100-F2H Mirror Mount, Suprema^®, 1.0 in, (2) 100-TPI Locking Hex-Broach Actuators	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
SS100-F3H Mirror Mount, Suprema^®, 1.0 in, (3) 100-TPI Locking Hex-Broach Actuators	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
ST100T-R2H Mirror Mount, Suprema, Threaded Rear Load, 1.0 in., (2) 100-TPI Locking Allen-Key Actuators	Precision	25.4 mm	2	100 TPI	4.3 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
ST100T-R3H Mirror Mount, Suprema, Threaded Rear Load, 1.0 in., (3) 100-TPI Locking Allen-Key Actuators	Precision	25.4 mm	3	100 TPI	4.3 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SC100-F2H Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (2) 100-TPI Locking Hex	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SC100-R2H-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 1.0 in., 2 100-TPI Locking Hex, LH	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Left-handed	Set Screw
SC100-F3H Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (3) 100-TPI Locking Hex	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SC100-R3H-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 1.0 in., 3 100-TPI Locking Hex, LH	Precision	25.4 mm	3	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Left-handed	Set Screw
SN100C-F2H Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (2) 127-TPI Locking Hex Key	Precision	25.4 mm	2	127 TPI	3.0 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN100C-F3H Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (3) 127-TPI Locking Hex Key	Precision	25.4 mm	3	127 TPI	3.0 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SU100W-F2K-127 Mirror Mount, Suprema^® LWD, 1.0 in, (2) 127-TPI Locking Knob Actuators	Precision	25.4 mm	2	127 TPI	3.0 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Low Wavefront Distortion
SU100W-F3K-127 Mirror Mount, Suprema^® LWD, 1.0 in, (3) 127-TPI Locking Knob Actuators	Precision	25.4 mm	3	127 TPI	3.0 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Low Wavefront Distortion
SS100T-F2H Mirror Mount, ZeroDrift, 1 in. Diameter, Two 100 TPI Hex Key	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes		Set Screw
SU100TW-F2K Mirror Mount, ZeroDrift, 25.4 mm, Two 100 TPI Knob, Low Wavefront Distortion	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Low Wavefront Distortion
HVM-1 Kinematic Mirror Mount, Vertical Drive, 1.0 in., (2) 80-TPI Knob Adjusters	Industrial	25.4 mm	2	80 TPI	2.5 arc sec	Knob	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
HVM-1t Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys	Industrial	25.4 mm	2	80 TPI	2.5 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Retaining Ring
HVM-1i Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys, 8-32	Industrial	25.4 mm	2	80 TPI	2.5 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
M-HVM-1i Mirror Mount, Industrial, Vertical Drive, 25.4 mm, 2 Locking Allen-Keys, M4	Industrial	25.4 mm	2	80 TPI	2.5 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw

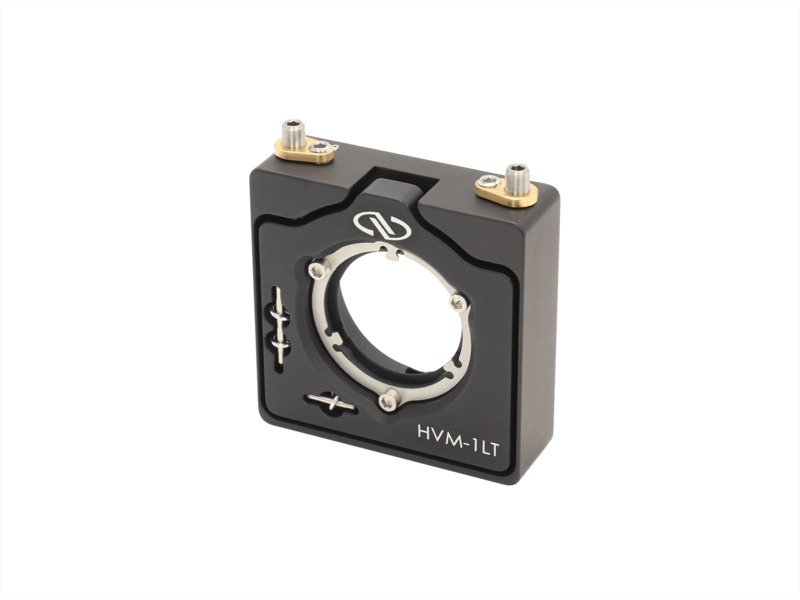

HVM-1lt Mirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, 8-32	Industrial	25.4 mm	2	100 TPI	θx = 2.98 arc sec θy = 2.05 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Low Wavefront Distortion
M-HVM-1lt Mirror Mount, Vertical Drive, Low Wavefront Distortion, Thin Optic, 1 in., 2 Locking Allen-Keys, M4	Industrial	25.4 mm	2	100 TPI	θx = 2.98 arc sec θy = 2.05 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Low Wavefront Distortion
HVM-S1i Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys	Industrial	25.4 mm	2	100 TPI	θx = 2.47 arc sec; θy = 2.97 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Top Adjust	Set Screw
HVM-S1r Mirror Mount, Industrial, Vertical Drive, Rear Load, 1 in., 2 Locking Allen-Keys	Industrial	25.4 mm	2	100 TPI	θx = 2.47 arc sec; θy = 2.97 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Top Adjust	Set Screw
HVM-S1w Mirror Mount, Industrial, Vertical Drive, 1 in., 2 Locking Allen-Keys	Industrial	25.4 mm	2	100 TPI	θx = 2.47 arc sec; θy = 2.97 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Top Adjust	Set Screw
HVM-S1t Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys	Industrial	25.4 mm	2	100 TPI	θx = 2.47 arc sec; θy = 2.97 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Top Adjust	Retaining Ring
U100-G2H Gimbal Mirror Mount, ULTIMA^®, Center, 1.0 in., 2 Locking 100-TPI Allen-Keys	Precision	25.4 mm	2	100 TPI	4.2 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Set Screw
U100-G Gimbal Mirror Mount, ULTIMA^®, Center, 1.0 in. Diameter, No Actuators	Precision	25.4 mm	0			Not Included	Gimbal	Aluminum			Set Screw
U100-G2K Gimbal Mirror Mount, ULTIMA^®, Center, 1.0 in., 2 Locking 100-TPI Knobs	Precision	25.4 mm	2	100 TPI	4.2 arc sec	Knob	Gimbal	Aluminum	Yes		Set Screw
MFM-100 Industrial Optical Mount, Flexure, 1.0 in., 2 Allen-Key Adjustment	Industrial	25.4 mm	2	80 TPI	5 arc sec	Allen-Key	Flexure	Stainless Steel	No		Set Screw
MFM-100-HR Industrial Optical Mount, High-Resolution Flexure, 1.0 in., 2 100-TPI Hex	Industrial	25.4 mm	2	100 TPI	4 arc sec	Allen-Key	Flexure	Stainless Steel	No		Set Screw
U100-A2H-V6 Mirror Mount, ULTIMA^®, Clear Edge, 1 in., (2) Locking Allen-Keys, Vacuum	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw	High Vacuum (10-6 Torr)
SN100C-F2H-V6 Mirror Mount, Suprema^®, Clear Edge, 1.0 in., (2) 100-TPI Locking Hex Actuators, Vacuum	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw	High Vacuum (10-6 Torr)
SS100-F2H-V6 Mirror Mount, Suprema^®, 1.0 in, (2) 100-TPI Locking Hex Actuators, Vacuum	Precision	25.4 mm	2	100 TPI	3.8 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw	High Vacuum (10-6 Torr)
9814-8-Ni-K-V Thick Optic Mount Mount, Stability, Top Adjust, Nickel Plated 1 in., 2 Allen, Vacuum	Precision	25.4 mm	2	100 TPI	4.3 arc sec	Allen-Key	Kinematic	Aluminum	No		Low Wavefront Distortion	High Vacuum (10-6 Torr)
9817-8-Ni-K-V Thick Optic Mount, Stability, 1.0 in., Nickel Plated OEM, 3 Allen, Vacuum	Precision	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion	High Vacuum (10-6 Torr)
9817-6-Ni-K-V Mirror Mount, Stability, 1.0 in., Nickel Plated OEM, 3 Allen, Vacuum	Precision	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	No		Low Wavefront Distortion	High Vacuum (10-6 Torr)
SL25.4BM Gimbal Optical Mount, 1.0 in. Diameter, (2) BM Micrometers	Precision	25.4 mm	2		5.8 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
SL25.4BD Gimbal Optical Mount, 1.0 in., 2 BD Differential Micrometers	Precision	25.4 mm	2		0.58 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
VGM-1N Gimbal Optical Mount, Vertical Drive, 1.0 in., No Actuators	Precision	25.4 mm	0			Not Included	Gimbal	Aluminum		Top Adjust	Retaining Plate
VGM-1AJS Gimbal Optical Mount, Vertical Drive, 1.0 in., AJS Adjustment Screws		25.4 mm	2	100 TPI	4.9 arc sec	Knob	Gimbal	Aluminum	Yes	Top Adjust	Retaining Plate
VGM-1BM Gimbal Optical Mount, Vertical Drive, 1.0 in., Standard Micrometers		25.4 mm	2	51 TPI	9.7 arc sec	Micrometer	Gimbal	Aluminum	No	Top Adjust	Retaining Plate
8814 Picomotor Piezo Gimbal Mount, 1.0 in. Diameter, 2-Axis	Motorized	25.4 mm	2	Piezo	0.25 arc sec	Motorized	Gimbal	Aluminum	Locked when powered down		Set Screw
8821-L Motorized Mirror Mount, Picomotor, Clear Edge, 1.0 in., 2-Axis, Left-handed	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw
8817-8-V Motorized Mirror Mount, Vacuum, 1.0 in., 8 mm Thick, Stability	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic		Locked when powered down	Left-handed	Low Wavefront Distortion	High Vacuum (10-6 Torr)
8817-6-V Motorized Mirror Mount, Vacuum, 1.0 in., 6 mm Thick, Stability	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Stainless Steel	Locked when powered down	Left-handed	Low Wavefront Distortion	High Vacuum (10-6 Torr)
8816-8 Motorized Mirror Mount, Stability, 1.0 in. Diameter, 8 mm Thick	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Low Wavefront Distortion
8816-6 Motorized Mirror Mount, Stability, 1.0 in. Diameter, 6 mm Thick	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Low Wavefront Distortion

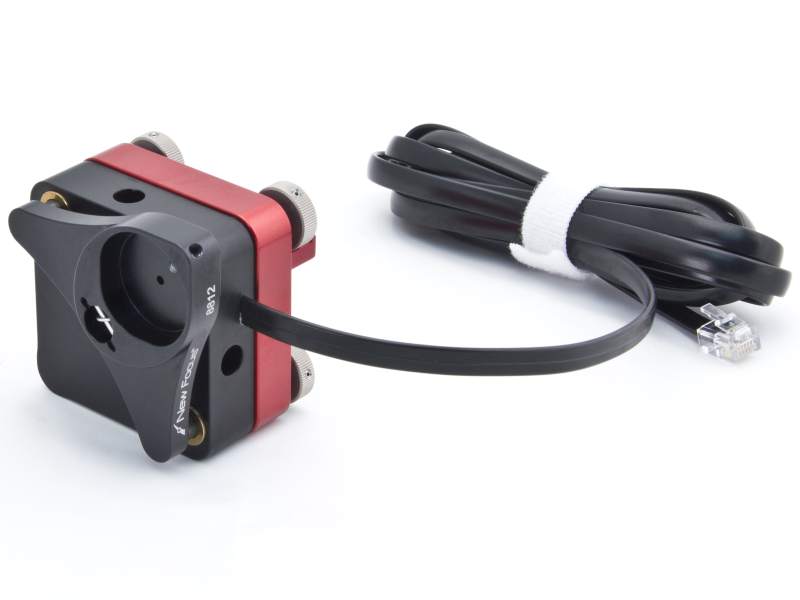

8812 Picomotor Piezo Gimbal Mount, 1.0 in. Diameter, 3-Axis	Motorized	25.4 mm	3	Piezo	0.14 arc sec	Motorized	Gimbal	Aluminum	Locked when powered down		Set Screw

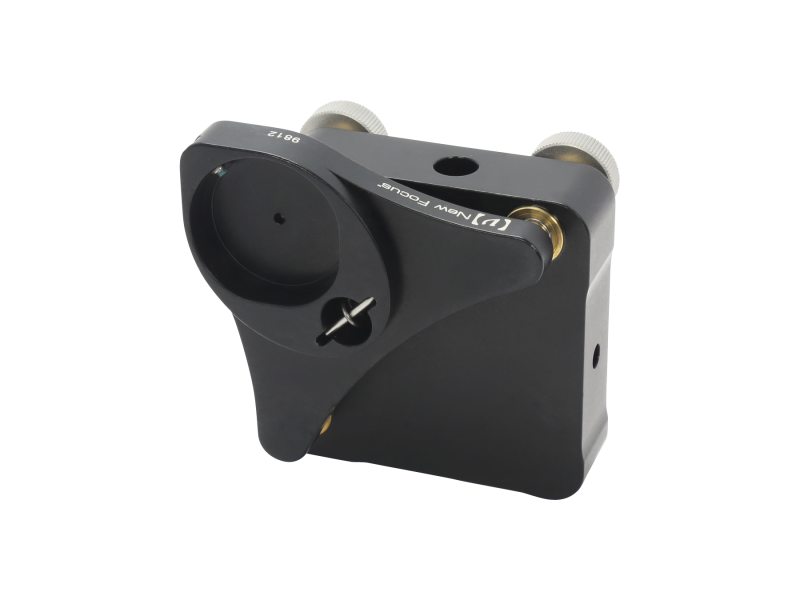

9812 Mirror Mount, Gimbal, Corner, 1.0 in., 3 Knobs		25.4 mm	3	80 TPI	4.4 arc sec	Knob	Gimbal	Aluminum	No		Set Screw
9814-8 Mirror Mount, Stability, Top Adjust, 1.0 in., Thick, 2 Knobs	Industrial	25.4 mm	2	100 TPI	4.3 arc sec	Knob	Kinematic	Aluminum	No	Top Adjust	Low Wavefront Distortion
9814-6 Mirror Mount, Stability, Top Adjust, 1.0 in., 2 Knobs	Industrial	25.4 mm	2	100 TPI	4.3 arc sec	Knob	Kinematic	Aluminum	No	Top Adjust	Low Wavefront Distortion
9814-6-K Mirror Mount, Stability, Top Adjust, 1.0 in., 2 Allen-Keys	Industrial	25.4 mm	2	100 TPI	4.3 arc sec	Allen-Key	Kinematic	Aluminum	No	Top Adjust	Low Wavefront Distortion
9817-6-K Mirror Mount, Stability, Center, 1.0 in., 3 Allen-Keys	Precision	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion
9816-6 Mirror Mount, Stability, Center, 1.0 in., 3 Knobs	Precision	25.4 mm	3	80 TPI	4.4 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion
9816-8-K Thick Optic Mount, Stability, Center. 1.0 in., 3 Allen-Keys	Precision	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion
9816-6-K Mirror Mount, Stability, Center, 1.0 in., 3 Allen-Keys	Precision	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Low Wavefront Distortion
8807 Picomotor Piezo Mirror Mount, Center, 1.0 in. Diameter, 2-Axis	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
8887 Piezo Mirror Mount, Pint-Sized, Corner Mount, 1.0 in. Diameter	Motorized	25.4 mm	2	Piezo	0.31 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw
9807-L Mirror Mount, Classic, Center, 1.0 in., 3 Locking Allen-Keys	Industrial	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Left-handed	Set Screw
9807-K Mirror Mount, Classic, Center, 1.0 in., 3 Allen-Keys	Industrial	25.4 mm	3	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Set Screw
9773 Mirror Mount, Valu, Center, 1.0 in., 2 Knobs	Standard	25.4 mm	2	80 TPI	4.4 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Set Screw
9807 Mirror Mount, Classic, Center, 1.0 in., 3 Knobs	Standard	25.4 mm	3	80 TPI	4.4 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Set Screw
9807-C Mirror Mount, Classic, Center, 1.0 in., 3 Micrometers	Standard	25.4 mm	3	100 TPI	4.4 arc sec	Micrometer	Kinematic	Aluminum	No	Left-handed	Set Screw
9819 Convertible Clear Edge Mirror Mount, 1.0 in., 3 Knob Adjustment	Standard	25.4 mm	3	80 TPI	4.4 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Set Screw
AG-M100L Piezo Optical Mount, Compact, 1.0 in. Optics, Limit Switches	Motorized	25.4 mm	2	Piezo	0.21 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
AG-M100LV6 Piezo Mirror Mount, 1.0 in., Limit Switches, Vacuum Compatible	Motorized	25.4 mm	2	Piezo	0.21 arc sec	Motorized	Kinematic	Stainless Steel	Locked when powered down	Left-handed	Set Screw	High Vacuum (10-6 Torr)
AG-M100N Piezo Mirror Mount, Agilis 1 in. Diameter	Motorized	25.4 mm	2	Piezo	0.21 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
AG-M100NV6 Piezo Optical Mount, Compact, 1.0 in. Optics, Vacuum Compatible	Motorized	25.4 mm	2	Piezo	0.21 arc sec	Motorized	Kinematic	Stainless Steel	Locked when powered down	Left-handed	Set Screw	High Vacuum (10-6 Torr)
9805-K Mirror Mount, Commercial, Center, 1.0 in., 2 Locking Allen-Keys	Industrial	25.4 mm	2	80 TPI	4.4 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Left-handed	Set Screw
8821 Motorized Mirror Mount, Picomotor, Clear Edge Center, 1.0 in., 2-Axis	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
8821-UHV Piezo Mirror Mount, UHV, Clear Edge,, 1.0 in. Diameter, 2-Axis	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw	Ultra-high Vacuum (10-9 Torr)
8821-AC-UHV Motorized Mirror Mount, Picomotor, UHV, Center, 1.0 in., 2-Axis	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Low Wavefront Distortion	Ultra-high Vacuum (10-9 Torr)
8821-L-UHV Piezo Mirror Mount, UHV, Clear Edge, 1.0 in., 2-Axis, Left-handed	Motorized	25.4 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw	Ultra-high Vacuum (10-9 Torr)
U100-A-30 Mirror Mount, ULTIMA^®, Clear Edge, 30.0 mm, No Actuators	Precision	30 mm	0			Not Included	Kinematic	Aluminum		Right-handed	Set Screw
M2 Mirror Mount, Lab Standard, 2.0 in. Diameter, 2 Knob Actuators	Standard	50.8 mm	2	100 TPI	2.4 arc sec	Knob	Kinematic	Aluminum	No		Set Screw
U200-A3K Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., 3 Locking Knobs	Precision	50.8 mm	3	100 TPI	2.4 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U200-A Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., No Actuators	Precision	50.8 mm	0			Not Included	Kinematic	Aluminum		Right-handed	Set Screw
U200-A-LH Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., No Actuators, Left-Handed	Precision	50.8 mm	0			Not Included	Kinematic	Aluminum		Left-handed	Set Screw
U200-A2H Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., 2 Locking Allen-Keys	Precision	50.8 mm	2	100 TPI	2.4 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U200-A2K Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., 2 Locking Knobs	Precision	50.8 mm	2	100 TPI	2.4 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U200-A3H Mirror Mount, ULTIMA^®, Clear Edge, 2.0 in., 3 Locking Allen-Keys	Precision	50.8 mm	3	100 TPI	2.4 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U200-AC Mirror Mount, ULTIMA^®, Center, 2.0 in. Diameter, No Actuators	Precision	50.8 mm	0			Not Included	Kinematic	Aluminum			Low Wavefront Distortion
U200-AC2K Mirror Mount, ULTIMA^®, Center, 2.0 in., 2 Locking Knob Adjustment	Precision	50.8 mm	2	100 TPI	2.4 arc sec	Knob	Kinematic	Aluminum	Yes		Low Wavefront Distortion
U200-AC3K Mirror Mount, ULTIMA^®, Center, 2.0 in., 3 Locking Knob Adjustment	Precision	50.8 mm	3	100 TPI	2.4 arc sec	Knob	Kinematic	Aluminum	Yes		Low Wavefront Distortion
P200-AI28 Mirror Mount, PERFORMA-i, 2.0 in., 80 TPI, 2 Locking Allen-Keys	Standard	50.8 mm	2	80 TPI	3.0 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Set Screw
P200-At28 Mirror Mount, Thin Optic, 2.0 in., 80 TPI, 2 Locking Allen-Keys	Standard	50.8 mm	2	80 TPI	3.0 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Right-handed	Retaining Ring
ST200T-R2K Mirror Mount, Suprema, Threaded Rear Load, 2.0 in., (2) 100-TPI Locking Knob Actuators	Precision	50.8 mm	2	100 TPI	2.7 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
ST200T-R3K Mirror Mount, Suprema, Threaded Rear Load, 2.0 in., (3) 100-TPI Locking Knob Actuators	Precision	50.8 mm	3	100 TPI	2.7 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN200-F2K Mirror Mount, Suprema^®, Clear Edge, 2.0 in., 2 Locking Knobs	Precision	50.8 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN200-R2K-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 2.0 in, 2 Locking Knobs, Left-Handed	Precision	50.8 mm	2	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes	Left-handed	Set Screw
SN200-F3K Mirror Mount, Suprema^®, Clear Edge, 2.0 in., 3 Locking Knobs	Precision	50.8 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
SN200-R3K-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 2.0 in, 3 Locking Knobs, Left-Handed	Precision	50.8 mm	3	100 TPI	3.8 arc sec	Knob	Kinematic	Stainless Steel	Yes	Left-handed	Set Screw
SN200-F2K-254 Mirror Mount, Suprema^®, Clear Edge, 2.0 in., 2 254-TPI Knobs	Precision	50.8 mm	2	254 TPI	1.5 arc sec	Knob	Kinematic	Stainless Steel	No	Right-handed	Set Screw
SN200-F3K-254 Mirror Mount, Suprema^®, Clear Edge, 2.0 in., 3 254-TPI Knobs	Precision	50.8 mm	3	254 TPI	1.5 arc sec	Knob	Kinematic	Stainless Steel	No	Right-handed	Set Screw
SN200-F Mirror Mount, Suprema^®, Clear Edge, 2.0 in., No Adjusters	Precision	50.8 mm	0			Not Included	Kinematic	Stainless Steel		Right-handed	Set Screw
SN200-R-LH Mirror Mount, Suprema^®, Clear Edge, Rear Load, 2.0 in., No Adjusters, Left-Handed	Precision	50.8 mm	0			Not Included	Kinematic	Stainless Steel		Left-handed	Set Screw
ST200T-R2H Mirror Mount, Suprema, Threaded Rear Load, 2.0 in., (2) 100-TPI Locking Allen-Key Actuators	Precision	50.8 mm	2	100 TPI	2.7 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
ST200T-R3H Mirror Mount, Suprema, Threaded Rear Load, 2.0 in., (3) 100-TPI Locking Allen-Key Actuators	Precision	50.8 mm	3	100 TPI	2.7 arc sec	Allen-Key	Kinematic	Stainless Steel	Yes	Right-handed	Set Screw
HVM-2u Optical Mount, Industrial, Vertical Drive, 2 in., 2 Locking Allen-Keys	Industrial	50.8 mm	2	80 TPI	2.0 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Set Screw
HVM-2t Mirror Mount, Industrial, Vertical Drive, Thin Optic, 2 in., 2 Locking Allen-Keys	Industrial	50.8 mm	2	80 TPI	2.0 arc sec	Allen-Key	Kinematic	Aluminum	Yes	Top Adjust	Retaining Ring
U200-G Gimbal Mirror Mount, ULTIMA^®, Center, 2.0 in. Diameter, No Actuators	Precision	50.8 mm	0			Not Included	Gimbal	Aluminum			Retaining Ring
U200-G2H Gimbal Mirror Mount, ULTIMA^®, Center, 2.0 in., 2 Locking 100-TPI Allen-Keys	Precision	50.8 mm	2	100 TPI	2.3 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Retaining Ring
U200-G2K Gimbal Mirror Mount, ULTIMA^®, Center, 2.0 in., 2 Locking 100-TPI Knobs	Precision	50.8 mm	2	100 TPI	2.3 arc sec	Knob	Gimbal	Aluminum	Yes		Retaining Ring
SL51BD Gimbal Optical Mount, 2.0 in., (2) BD Differential Micrometers	Precision	50.8 mm	2		0.39 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
SL51BM Gimbal Optical Mount, 2.0 in. Diameter, (2) BM Micrometers	Precision	50.8 mm	2		3.9 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
VGM-2N Gimbal Optical Mount, Vertical Drive, 2.0 in. Diameter, No Actuators	Precision	50.8 mm	0			Not Included	Gimbal	Aluminum		Top Adjust	Retaining Plate
VGM-2AJS Gimbal Optical Mount, Vertical Drive, 2.0 in., AJS Adjustment Screws		50.8 mm	2	100 TPI	3.3 arc sec	Knob	Gimbal	Aluminum	Yes	Top Adjust	Retaining Plate
VGM-2BM Gimbal Optical Mount, Vertical Drive, 2.0 in., Standard Micrometers		50.8 mm	2	51 TPI	6.5 arc sec	Micrometer	Gimbal	Aluminum	No	Top Adjust	Retaining Plate
8816 Picomotor Piezo Gimbal Mount, 2.0 in. Diameter, 2-Axis	Motorized	50.8 mm	2	Piezo	0.14 arc sec	Motorized	Gimbal	Aluminum	Locked when powered down		Retaining Ring
8822 Piezo Mirror Mount, Clear Edge, 2.0 in. Diameter, 2-Axis	Motorized	50.8 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
8853 Picomotor Piezo Gimbal Mount, 2.0 in. Diameter, 3-Axis	Motorized	50.8 mm	3	Piezo	0.14 arc sec	Motorized	Gimbal	Aluminum	Locked when powered down		Retaining Ring
8852 Picomotor Piezo Mirror Mount, Corner, 2.0 in. Diameter, 3-Axis	Motorized	50.8 mm	3	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down		Retaining Ring
9853 Mirror Mount, Gimbal, Corner, 2.0 in., 3 Knobs	Precision	50.8 mm	3	80 TPI	4.4 arc sec	Knob	Gimbal	Aluminum	No		Retaining Ring
9855-K Mirror Mount, Classic, Center, 2.0 in., 3 Allen-Keys	Industrial	50.8 mm	3	80 TPI	3.6 arc sec	Allen-Key	Kinematic	Aluminum	No	Left-handed	Set Screw
9855 Mirror Mount, Classic, Center, 2.0 in., 3 Knobs	Standard	50.8 mm	3	80 TPI	3.6 arc sec	Knob	Kinematic	Aluminum	No	Left-handed	Set Screw
605-2 Gimbal Optic Mount, Low-distortion Axial Clamping, 2.0 in., Incl.1.0 in. Adapter	Precision	50.8 mm	2	100 TPI	6 arc sec	Knob	Gimbal	Aluminum	Yes		Low Wavefront Distortion
8822-AC Picomotor Piezo Mirror Mount, Center, 2.0 in. Diameter, 2-Axis	Motorized	50.8 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Low Wavefront Distortion
8822-L Motorized Mirror Mount, Picomotor, Clear Edge, 2.0 in., 2-Axis, Left-handed	Motorized	50.8 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw
8822-UHV Piezo Mirror Mount, UHV, Clear Edge, 2.0 in. Diameter, 2-Axis	Motorized	50.8 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw	Ultra-high Vacuum (10-9 Torr)
8822-L-UHV Piezo Mirror Mount, UHV, Clear Edge, 2.0 in., 2-Axis, Left-handed	Motorized	50.8 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Left-handed	Set Screw	Ultra-high Vacuum (10-9 Torr)
U300-A3K Mirror Mount, ULTIMA^®, Clear Edge, 3.0 in., 3 Locking Knobs	Precision	76.2 mm	3	100 TPI	1.8 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U300-AC Mirror Mount, ULTIMA^®, Center, 3.0 in. Diameter, No Actuators	Precision	76.2 mm	0			Not Included	Kinematic	Aluminum			Low Wavefront Distortion
U300-A Mirror Mount, ULTIMA^®, Clear Edge, 3.0 in., No Actuators	Precision	76.2 mm	0			Not Included	Kinematic	Aluminum		Right-handed	Set Screw
U300-AC3K Mirror Mount, ULTIMA^®, Center, 3.0 in., 3 Locking Knob Adjustment	Precision	76.2 mm	3	100 TPI	1.8 arc sec	Knob	Kinematic	Aluminum	Yes		Low Wavefront Distortion
U300-A2K Mirror Mount, ULTIMA^®, Clear Edge, 3.0 in., 2 Locking Knobs	Precision	76.2 mm	2	100 TPI	1.8 arc sec	Knob	Kinematic	Aluminum	Yes	Right-handed	Set Screw
U300-AC2K Mirror Mount, ULTIMA^®, Center, 3.0 in., 2 Locking Knob Adjustment	Precision	76.2 mm	2	100 TPI	1.8 arc sec	Knob	Kinematic	Aluminum	Yes		Low Wavefront Distortion
8823 Piezo Mirror Mount, Clear Edge, 3.0 in. Diameter, 2-Axis	Motorized	76.2 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw
8823-AC Picomotor Piezo Mirror Mount, Center, 3.0 in. Diameter, 2-Axis	Motorized	76.2 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Low Wavefront Distortion
8823-UHV Piezo Mirror Mount, UHV, Clear Edge, 3.0 in. Diameter, 2-Axis	Motorized	76.2 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Set Screw	Ultra-high Vacuum (10-9 Torr)
8823-AC-UHV Motorized Mirror Mount, Picomotor, UHV, Center, 3.0 in., 2-Axis	Motorized	76.2 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Low Wavefront Distortion	Ultra-high Vacuum (10-9 Torr)
SL76.2BM Gimbal Optical Mount, 3.0 in. Diameter, (2) BM Micrometers	Precision	76.2 mm	2		3.1 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
SL76.2BD Gimbal Optical Mount, 3.0 in., (2) BD Differential Micrometers	Precision	76.2 mm	2		0.31 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
SL8ABHC Gimbal Optical Mount, Ø3.15 in., 2 BHC Locking Allen-Key Screws	Precision	80 mm	2		3.5 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Low Wavefront Distortion
SL8ABM Gimbal Optical Mount, Ø3.15 in., 2 BM Micrometers	Precision	80 mm	2		3.5 arc sec	Micrometer	Gimbal	Aluminum	No		Low Wavefront Distortion
SL8ABD Gimbal Optical Mount, Ø3.15 in., 2 BD Differential Micrometers	Precision	80 mm	2		0.35 arc sec	Micrometer	Gimbal	Aluminum	No		Low Wavefront Distortion
SL101.6BM Gimbal Optical Mount, 4.0 in., (2) BM Micrometers	Precision	101.6 mm	2		2.7 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
SL101.6BD Gimbal Optical Mount, 4.0 in., (2) BD Differential Micrometers	Precision	101.6 mm	2		0.27 arc sec	Micrometer	Gimbal	Stainless Steel	No		Retaining Plate
605-4 Gimbal Optic Mount, Low-distortion Axial Clamping, 4.0 in. Diameter	Precision	101.6 mm	2	100 TPI	2.865 arc sec	Knob	Gimbal	Aluminum	Yes		Low Wavefront Distortion
U400-AC2K Mirror Mount, ULTIMA^®, Center, 4.0 in., 2 Locking Knob Adjustment	Precision	101.6 mm	2	100 TPI	1.3 arc sec	Knob	Kinematic	Aluminum	Yes		Low Wavefront Distortion
U400-AC3K Mirror Mount, ULTIMA^®, Center, 4.0 in., 3 Locking Knob Adjustment	Precision	101.6 mm	3	100 TPI	1.3 arc sec	Knob	Kinematic	Aluminum	Yes		Low Wavefront Distortion
U400-AC Mirror Mount, ULTIMA^®, Center, 4.0 in. Diameter, No Actuators	Precision	101.6 mm	0			Not Included	Kinematic	Aluminum			Low Wavefront Distortion
8824-AC Picomotor Piezo Mirror Mount, Center, 4.0 in. Diameter, 2-Axis	Motorized	101.6 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Low Wavefront Distortion
8824-AC-UHV Motorized Mirror Mount, Picomotor, UHV, Center, 4.0 in., 2-Axis	Motorized	101.6 mm	2	Piezo	0.14 arc sec	Motorized	Kinematic	Aluminum	Locked when powered down	Right-handed	Low Wavefront Distortion	Ultra-high Vacuum (10-9 Torr)
SL15ABHC Gimbal Optical Mount, Ø6.0 in., 2 BHC Locking Allen-Key Screws	Precision	152.4 mm	2		2.1 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Low Wavefront Distortion
SL15ABM Gimbal Optical Mount, Ø6.0 in., 2 BM Micrometers	Precision	152.4 mm	2		2.1 arc sec	Micrometer	Gimbal	Aluminum	No		Low Wavefront Distortion
SL15ABD Gimbal Optical Mount, Ø6.0 in., 2 BD Differential Micrometers	Precision	152.4 mm	2		0.21 arc sec	Micrometer	Gimbal	Aluminum	No		Low Wavefront Distortion
SL20ABHC Gimbal Optical Mount, Ø8.0 in., 2 BHC Locking Allen-Key Screws	Precision	203.2 mm	2		1.7 arc sec	Allen-Key	Gimbal	Aluminum	Yes		Low Wavefront Distortion
SL20ABM Gimbal Optical Mount, Ø8.0 in., 2 BM Micrometers	Precision	203.2 mm	2		1.7 arc sec	Micrometer	Gimbal	Aluminum	No		Low Wavefront Distortion
SL20ABD Gimbal Optical Mount, Ø8.0 in., 2 BD Differential Micrometers	Precision	203.2 mm	2		0.17 arc sec	Micrometer	Gimbal	Aluminum	No		Low Wavefront Distortion

Product Comparison

Mirror Mount Product Finder
