Dielectric Mirrors Guide by Wavelength

Performance Wavelength Range / Coating Code Reflectance Damage Threshold Substrate
Diameters
[in (mm)]		 Product Family Cost

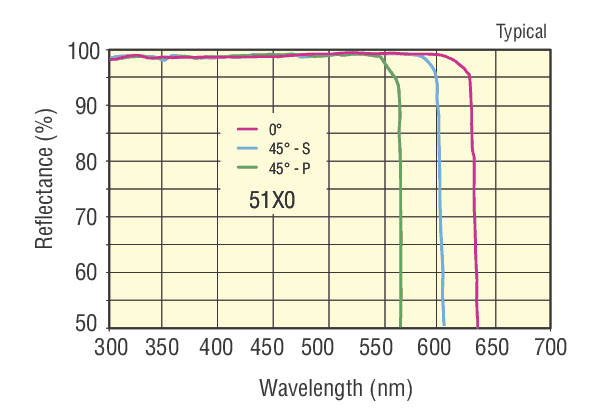

UV_Dielectric_Mirrors
300-550 nm
51X0
R>99%
0.3 J/cm2, 10ns
500 kW/cm2, CW
Borofloat 33
0.5 and 2
(12.7 and 50.8)		 Standard $$$
Ultra-broadband_Dielectric_Mirror__BB.1_Coating
350-700 nm
BB.1		 Rs, Rp>99% 1 J/cm2 @ 355 & 532nm, 20ns, 20Hz UV Grade Fused Silica 1
(25.4)		 Ultra-Broadband $$$$
BBHR2_lot_295905 350-1100 nm
BB.HR2		 Ravg>97.5% 2.3 J/cm2 @ 1064nm, 20ns UV Grade Fused Silica 0.5 to 2
(12.7 to 50.8)		 Ultra-Broadband Standard $$$

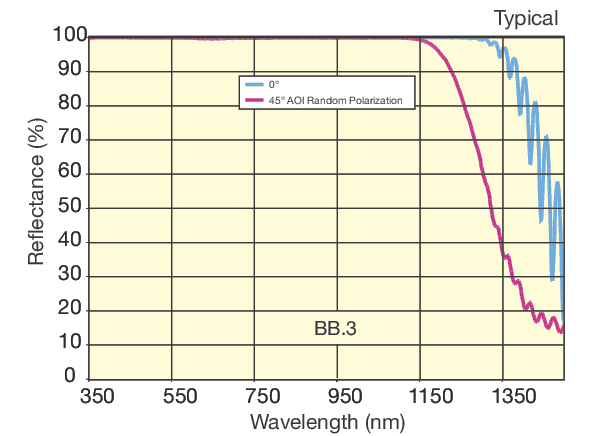

Ultra-broadband_Dielectric_Mirror__BB.3_Coating
350-1100 nm
BB.3		 Rs, Rp>99% 1 J/cm2  @ 355 & 532nm, 20ns, 20Hz
5 J/cm2 @ 1064nm, 20ns, 10Hz		 UV Grade Fused Silica 1
(25.4)		 Ultra-Broadband  $$$$

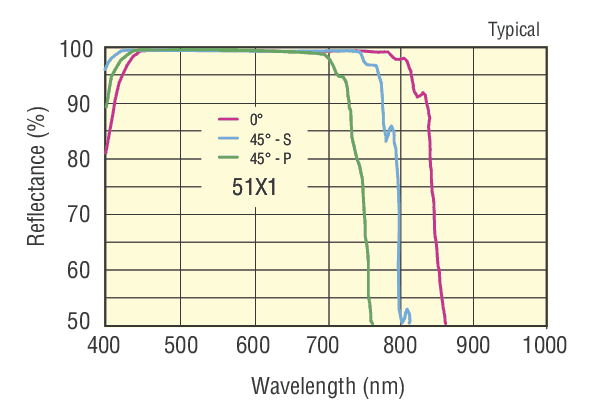

Visible_Dielectric_Mirrors
450-700 nm
51X1		 R>99% 1 J/cm2, 10ns
500 kW/cm2, CW		 Borofloat 33 0.5 to 2
(12.7 to 50.8)		 Standard $$$

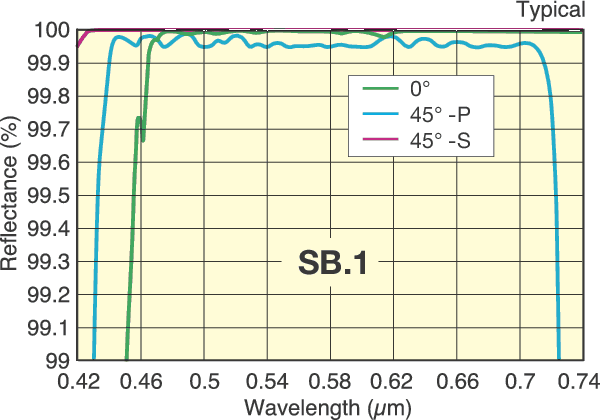

SB1-Combined 485-700 nm
SB.1		 Rs, Rp>99.9% 0.5 J/cm2, 10ns
1000 W/cm2, CW		 UV Grade Fused Silica 1
(25.4)		 SuperMirrors™ $$$$$
BD-1-NEW-combined 488-694 nm
BD.1		 Rs>99%
Rp>98%		 3 J/cm2, 10ns, 10Hz
500 W/cm2, CW		 Borofloat 33 0.5 & 1
(12.7 & 25.4)		 Economy $
0.5 to 6
(12.7 to 152.4)		 Standard $$
Zerodur 1 to 6
(25.4 to 152.4)		 High-Performance $$$

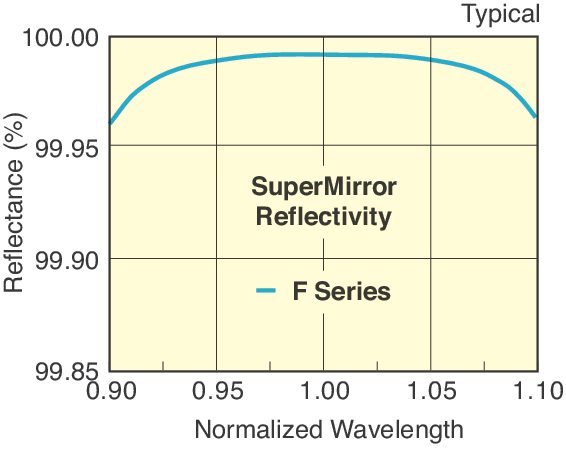

SUPERMI2-F-Series 583-663 nm
SR.30F		 R>99.97% 0.5 J/cm2, 10ns
1000 W/cm2, CW		 UV Grade Fused Silica 1
(25.4)		 SuperMirrors™ $$$$$
Ultra-broadband_Dielectric_Mirror__BB.2_Coating 610-1130 nm
BB.2		 Rs, Rp>99% 2 J/cm2 @ 1064nm, 20ns, 20Hz UV Grade Fused Silica 1
(25.4)		 Ultra-Broadband $$$
Near-IR_Dielectric_Mirrors 700-900 nm
51X2		 R>99% 10 J/cm2, 10ns
500 kW/cm2, CW		 Borofloat 33 0.5 to 2
(12.7 to 50.8)		 Standard $$$
BD-2-NEW-combined 700-950 nm
BD.2		 Rs>99%
Rp>97%		 4 J/cm2, 10ns, 10Hz
1000 W/cm2, CW		 Borofloat 33 0.5 & 1
(12.7 & 25.4)		 Economy $
0.5 to 8
(12.7 to 203.2)		 Standard $$
Zerodur 1 to 4
(25.4 to 101.6)		 High-Performance $$$
SUPERMI2-F-Series 761-867 nm
SR.40F		 R>99.97% 0.5 J/cm2, 10ns
1000 W/cm2, CW		 UV Grade Fused Silica 1
(25.4)		 SuperMirrors™ $$$$$
SUPERMI2-F-Series 996-1134 nm
SR.50F		 R>99.97% 0.5 J/cm2, 10ns
1000 W/cm2, CW		 UV Grade Fused Silica 1
(25.4)		 SuperMirrors™ $$$$$
SUPERMI2-F-Series 1241-1412 nm
SR.60F		 R>99.97% 0.5 J/cm2, 10ns
1000 W/cm2, CW		 UV Grade Fused Silica 1
(25.4)		 SuperMirrors™ $$$$$
SUPERMI2-F-Series 1457-1659 nm
SR.70F		 R>99.97% 0.5 J/cm2, 10ns
1000 W/cm2, CW		 UV Grade Fused Silica 1
(25.4)		 SuperMirrors™ $$$$$
