Legacy Molded Composite Optical Mounting Posts

Products
Features
Resources
Contact Us

Overview

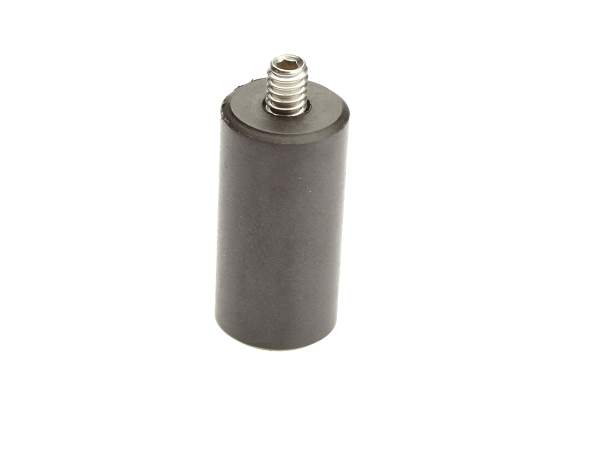

ValuMax® SPV Series Optical Mounting Posts are 0.5 in. (12.7 mm) diameter optical posts, precision molded from a composite material to provide a lightweight, but stable hold of mounted components. ValuMax optical posts and post holders are ideal for cost sensitive projects, and each posts has with two standard sized holes tapped into each end.

Insulating molded composite 0.5 in. diameter optical posts
High stiffness and creep resistant thermoplastic material
Both ends of posts have tapped holes with a set screw included
Available in Metric and English threaded versions
Legacy models on clearance while supplies last

See All Features

Products

Compare	Model	Compatibility	rankScore		Type	Height	Thread Type	Material	Availability	Price	Brand
SPV-0.75 Optical Mounting Post, 0.75 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 $6.10 In Stock	SPV-0.75 Optical Mounting Post, 0.75 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	1.0	1.0	Optical Post	19.1 mm	8-32 and 1/4-20	Molded Composite	In Stock	$6.10	Newport
SPV-1 Optical Mounting Post, 1.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 $6.10 In Stock	SPV-1 Optical Mounting Post, 1.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	1.0	2.0	Optical Post	25.4 mm	8-32 and 1/4-20	Molded Composite	In Stock	$6.10	Newport
SPV-1.5 Optical Mounting Post, 1.5 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 $7.30 In Stock	SPV-1.5 Optical Mounting Post, 1.5 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	1.0	3.0	Optical Post	38.1 mm	8-32 and 1/4-20	Molded Composite	In Stock	$7.30	Newport
SPV-2 Optical Mounting Post, 2.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 $7.30 In Stock	SPV-2 Optical Mounting Post, 2.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	1.0	4.0	Optical Post	50.8 mm	8-32 and 1/4-20	Molded Composite	In Stock	$7.30	Newport
SPV-3 Optical Mounting Post, 3.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 $8.70 Contact Us	SPV-3 Optical Mounting Post, 3.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	1.0	5.0	Optical Post	76.2 mm	8-32 and 1/4-20	Molded Composite	Contact Us	$8.70	Newport
SPV-4 Optical Mounting Post, 4.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20 $8.70 In Stock	SPV-4 Optical Mounting Post, 4.0 in., 0.5 in. Dia. Composite, 8/32 & 1/4-20	IMPERIAL	1.0	6.0	Optical Post	101.6 mm	8-32 and 1/4-20	Molded Composite	In Stock	$8.70	Newport
M-SPV-0.75 Optical Mounting Post, 19.1 mm, 12.7 mm Dia. Molded Composite, M4 & M6 $6.10 In Stock	M-SPV-0.75 Optical Mounting Post, 19.1 mm, 12.7 mm Dia. Molded Composite, M4 & M6	METRIC	1.0	7.0	Optical Post	19.1 mm	M4 and M6	Molded Composite	In Stock	$6.10	Newport
M-SPV-1 Optical Mounting Post, 25.4 mm, 12.7 mm Dia. Molded Composite, M4 & M6 $6.10 In Stock	M-SPV-1 Optical Mounting Post, 25.4 mm, 12.7 mm Dia. Molded Composite, M4 & M6	METRIC	1.0	8.0	Optical Post	25.4 mm	M4 and M6	Molded Composite	In Stock	$6.10	Newport
M-SPV-1.5 Optical Mounting Post, 38.1 mm, 12.7 mm Dia. Molded Composite, M4 & M6 $7.30 In Stock	M-SPV-1.5 Optical Mounting Post, 38.1 mm, 12.7 mm Dia. Molded Composite, M4 & M6	METRIC	1.0	9.0	Optical Post	38.1 mm	M4 and M6	Molded Composite	In Stock	$7.30	Newport
M-SPV-2 Optical Mounting Post, 50.8 mm, 12.7 mm Dia. Molded Composite, M4 & M6 $7.30 Contact Us	M-SPV-2 Optical Mounting Post, 50.8 mm, 12.7 mm Dia. Molded Composite, M4 & M6	METRIC	1.0	10.0	Optical Post	50.8 mm	M4 and M6	Molded Composite	Contact Us	$7.30	Newport
M-SPV-3 Optical Mounting Post, 76.2 mm, 12.7 mm Dia. Molded Composite, M4 & M6 $8.70 In Stock	M-SPV-3 Optical Mounting Post, 76.2 mm, 12.7 mm Dia. Molded Composite, M4 & M6	METRIC	1.0	11.0	Optical Post	76.2 mm	M4 and M6	Molded Composite	In Stock	$8.70	Newport
M-SPV-4 Optical Mounting Post, 101.6 mm, 12.7 mm Dia. Molded Composite, M4, M6 $8.70 In Stock	M-SPV-4 Optical Mounting Post, 101.6 mm, 12.7 mm Dia. Molded Composite, M4, M6	METRIC	1.0	12.0	Optical Post	101.6 mm	M4 and M6	Molded Composite	In Stock	$8.70	Newport

Show All

Specifications

Type

Optical Post
Diameter

12.7 mm
Height

19.1, 25.4, 38.1, 50.8, 76.2, 101.6 mm

Thread Type

M4 and M6, 8-32 and 1/4-20
Material

Molded Composite

Specifications

Type

Optical Post
Diameter

12.7 mm
Height

19.1, 25.4, 38.1, 50.8, 76.2, 101.6 mm

Thread Type

M4 and M6, 8-32 and 1/4-20
Material

Molded Composite

Features

Molded Composite Material

ValuMax® SPV Series Optical Mounting Posts are precision molded from a composite material known as Ryton® and have a 0.5 in. (12.7 mm) diameter. The composite material has an exceptional degree of thermal stability, dimensional stability, and chemical resistance.

Tapped Holes in Both Ends

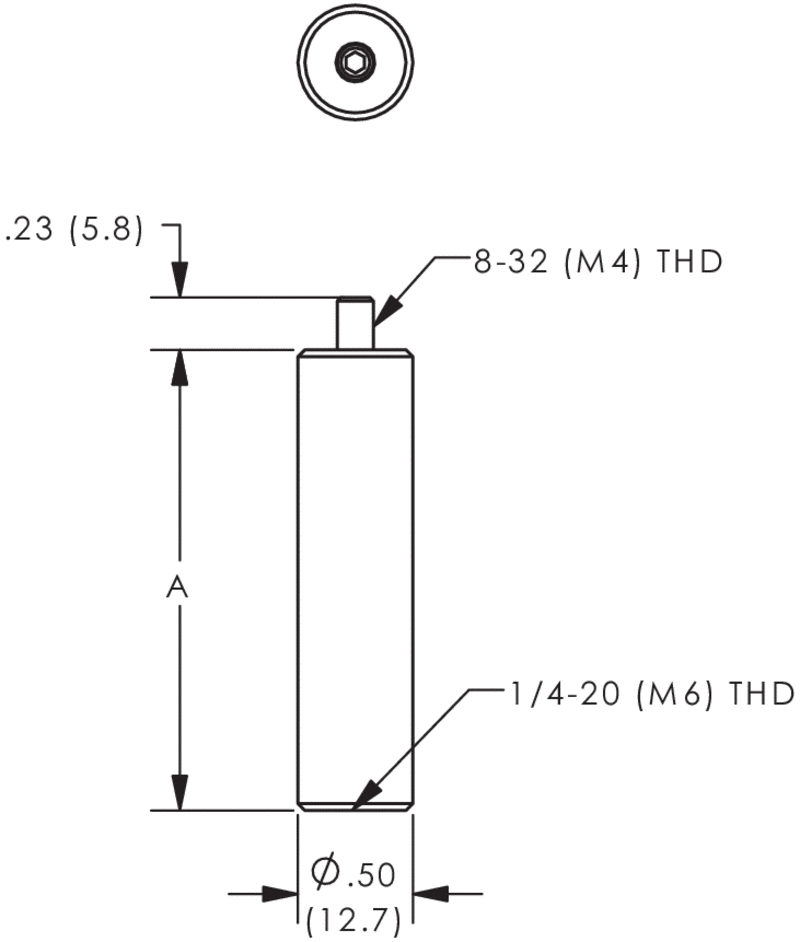

These optical posts each have an 8-32 (or M4 for the metric equivalent) tapped hole in one end and a 1/4-20 (M6) tapped hole in the other. Each post is supplied with a 8-32 (M4) double-ended set screw, for joining posts together to create customizable lengths.

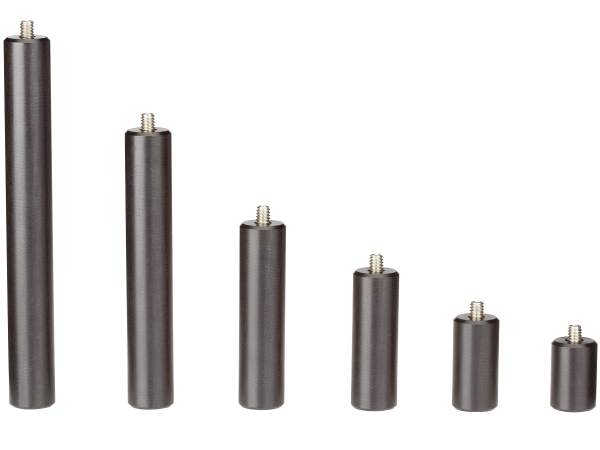

Available in Six Standard Lengths

SPV series optical posts are offered in six different heights between 0.75 in. (19.1 mm) and 4 in. (101.6 mm). The length of the optical posts, in inches, is included after the dash in the model numbers, with the following available: SPV-.75 , SPV-1 , SPV-1.5 , SPV-2, SPV-3 , and SPV-4. These are all also available in metric versions (which include an ""M-"" prefix in the model number).

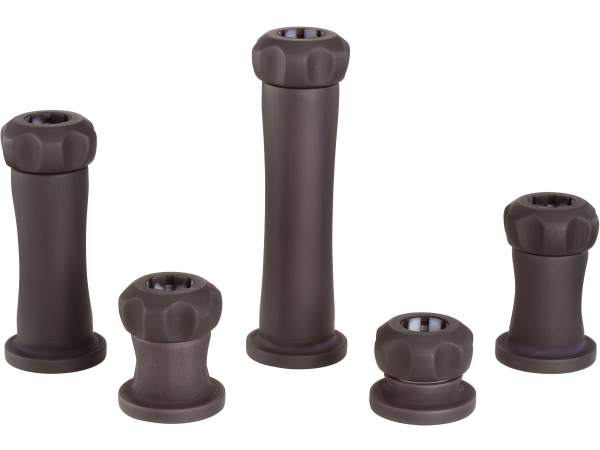

Compatible Optical Post Holders

SPV Series optical mounting posts are compatible with 1/2 inch optical post holders like our VPH No Slip Optical Post Holders, Cam-Lock Optical Post Holders, ValuMax Molded Composite Optical Post Holders, Low Cost Optical Post Holders, and Translating Optical Post Holders.
