Safety Valve, Pump Failure, NW50 ISO-KF, Viton, 208 VAC 60 Hz

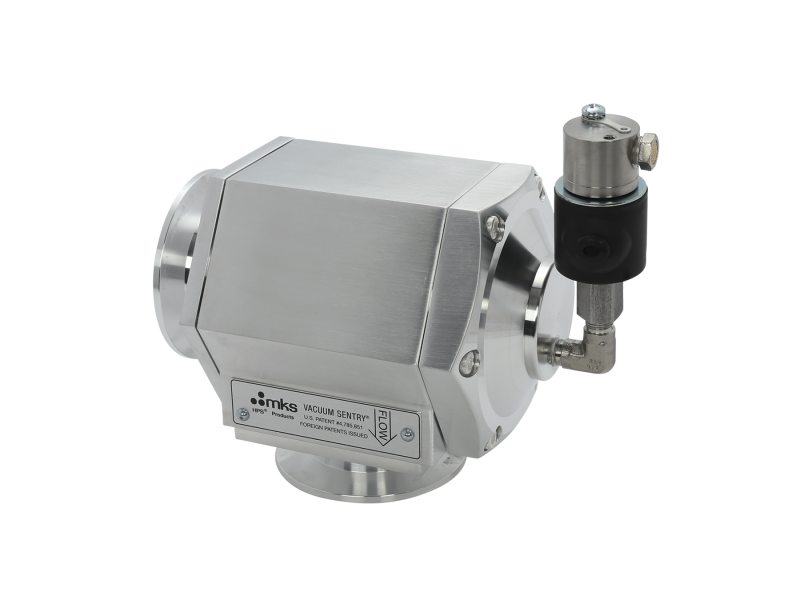

The Vacuum Sentry® 145-0050K-208V/60 Safety Valve has ISO-KF flanges, NW50 port size, Angle ports, Viton seals, and a solenoid voltage of 208VAC. It is a patented safety valve that protects a vacuum system in the event of a power failure by isolating the vacuum system and venting the mechanical pump. A small orifice vents the mechanical pump slowly to atmospheric pressure for easy restart when power returns.
Specifications
- TypePump Failure Safety Valve
- ConfigurationAngle Ports
- Flange TypeISO-KF
- Flange SizeNW50
- Solenoid Valve Coil Power208 VAC, 60 Hz
- Body MaterialAL 6061-T6
- Piston MaterialAL 2024
- Seal MaterialViton
- Guide Pin MaterialViton
- Helium Leak Rate<1 x 10-9 std cc/sec
- Venting Time10 s/l of vented volume
- Closing Time30 ms
- Closing Burst1 x 10-3 T-1
- Operating Temperature RangeValve: 0 - 100°C
Solenoid: 0 - 55°C - Weight4 lbs. (1.8 kg)
