Technical Note:
Deuterium Lamp Spectral Irradiance Data

LS-pg3-6a

Spectral irradiance data is shown below for our Deuterium lamps. You can click on the curve for a larger image, or on a model number for complete information on a specific Deuterium lamp. Spectral irradiance curves for other types of lamps can be found on the right. View Information on Spectral Irradiance Data and Using Spectral Irradiance Curves for complete information on how the data was obtained and how to use it.

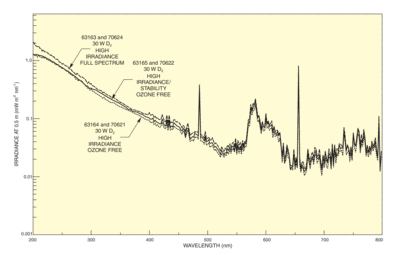

LS-030a
30 W High Irradiance Deuterium Lamps: model 63163 is full spectrum, and model 63165 is high stability, ozone free.

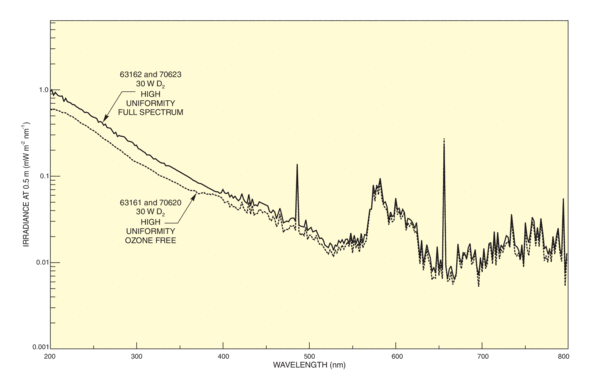

LS-030b
30 W High Uniformity Deuterium Lamps: model 63162 is full spectrum.
