Motorized Optical Mount Selection Guide
Overview
Newport offers a large selection of Motorized Optical Mounts to fulfill virtually any research or laboratory need. With the addition of New Focus, we have added the complete line of world class Picomotor driven optical mounts. Motorized optical mounts are great for automating sensitive lab or production optical systems, as well as making adjustments in tight spaces where manual adjustment is not possible.

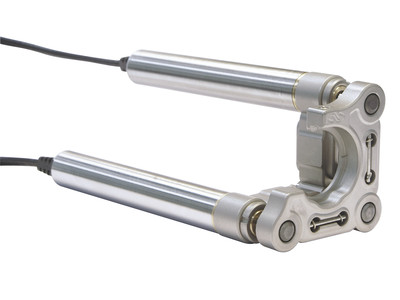

Motorizing a Manual Optical Mount
Many of our standard mirror and optical mounts can be converted to motorized by adding our linear actuators. For a list of the options please view our linear actuator to Mirror Mount Compatibility guide. For custom OEM or special applications, contact us to speak with our sales and application engineers.
See Motorized Optical Mounts to browse all standard models, or select a product series below for more information.
| Series | Optic Diameter [in. (mm)] |
Angular Range (°) |
Resolution | |
|---|---|---|---|---|
 |
Picomotor Mount with Controller Kits | 1.0 (25.4) | ±3 | 0.7 µrad |
 |

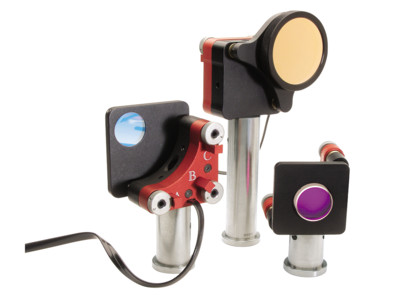

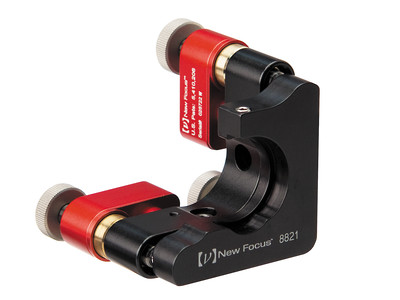

Picomotor Series Motorized Optical Mounts | 0.5 (12.7) to 2.0 (50.8) | ±4 | 0.7 µrad |
 |
Large Aperture Picomotor Optical Mounts | 2.0 (50.8) to 4.0 (101.6) | ±5 | 0.7 µrad |
 |
Stability Series Piezomotor Optical Mounts | 1.0 (25.4) | ±4 | 0.7 µrad |
 |
Pint-Sized Series Picomotor Optical Mounts | 0.5 (12.7) to 1.0 (25.4) | ±4 | 1.5 µrad |
 |
Motorized Flipper Optical Mounts | 1.0 (25.4) to 2.0 (50.8) | ±2 | 87 to 183 µrad (resolution/5° turn) |
 |
Agilis Series Piezo Motor Driven Optical Mounts | 0.5 (12.7) to 1.0 (25.4) | ±2 | 1 to 2 µrad |
 |
PSM2 Ultrafast Piezo Steering Mirror | Up to 1.0 (25.4) | ±0.115 | X, Y 0.004 µrad Z 0.03 nm |
 |
NPO Series Objective NanoFocusing Stages | Standard Objective Thread | 100 to 250 µm (linear) | 0.3 to 0.5 nm (open loop) |
 |
GuideStar II Laser Beam Steering Correction System | 1.0 (25.4) | ±3 | <1 µrad |
 |
CONEX Compact Bidirectional Absolute Positioning Mirror Mount | 1.0 (25.4) | ±0.75 | |
 |
FSM Series Fast Steering Mirrors | 1.0 (25.4) | ±1.5 | ≤1 µrad |
