Sorry, this product is no longer offered for sale. It was discontinued on May 3, 2023The recommended replacement product is CKIT-1AR.14-P.

Master Cylindrical Lens Set, N-BK7, Includes 13 Lenses, 430-700nm

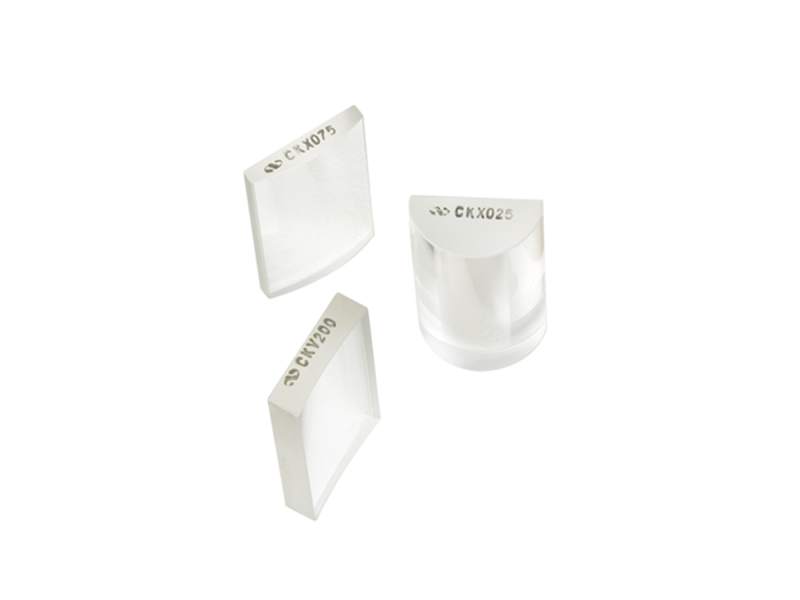

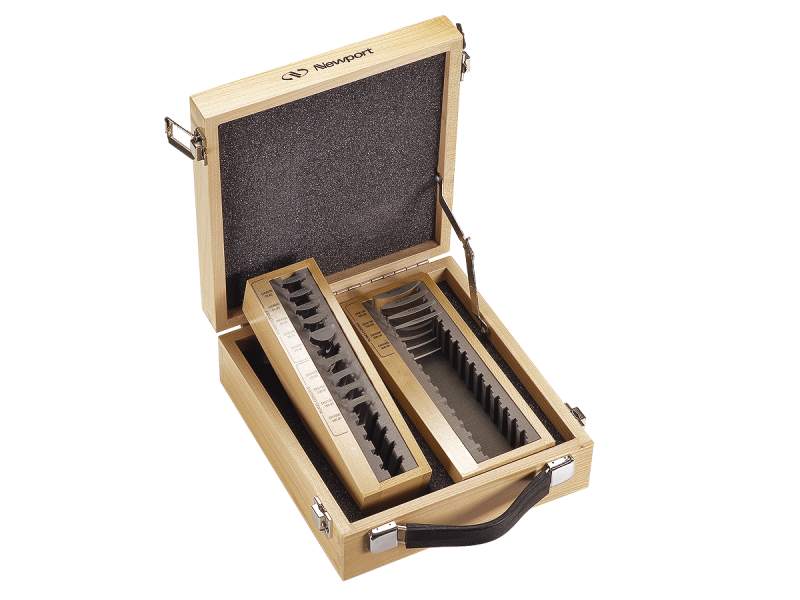

The CKIT-1AR.14 Master Cylindrical Lens Set is an 430-700 nm antireflection coated lens set containing 13 lenses. Newport's cylindrical lens sets provide a selection of research quality plano-convex and plano-concave lenses in convenient focal lengths from -200 to 300 mm. All lenses are edge marked with their Newport model number for easy identification. The lenses are packaged in a protective hardwood case and are held in place by foam inserts.

Specifications

Technical Specs

Lens Type
Cylindrical
Lens Material
Grade A N-BK7
Antireflection Coating
430-700 nm
Coating Code
AR.14

Cleaning
See How to Clean Optics

Lens Type
Cylindrical
Lens Material
Grade A N-BK7
Antireflection Coating
430-700 nm
Coating Code
AR.14

Cleaning
See How to Clean Optics

Resources & Downloads

Other

CKIT-1AR.14 RoHS Certificate(264.8 kB, PDF)
AR.14 Raw Data.xlsx(63.9 kB, XLSX)

Related Products

Products Included in This Kit

Description	Compatibility	Avail.	Price
CKX025AR.14Cylindrical Lens, Plano-Convex, N-BK7, 50.8x25.4mm, 25.4mm, 430-700 nm	UNIVERSAL	In Stock	$232
CKX038AR.14Cylindrical Lens, Plano-Convex, N-BK7, 50.8x25.4mm, 38.1mm, 430-700 nm	UNIVERSAL	In Stock	$272
CKX050AR.14Cylindrical Lens, Plano-Convex, N-BK7, 50.8x25.4mm, 50.2mm, 430-700 nm	UNIVERSAL	In Stock	$261
CKX062AR.14Cylindrical Lens, Plano-Convex, N-BK7, 50.8x25.4mm, 62.9mm, 430-700 nm	UNIVERSAL	In Stock	$261
CKX075AR.14Cylindrical Lens, Plano-Convex, N-BK7, 50.8x25.4mm, 75.6mm, 430-700 nm	UNIVERSAL	In Stock	$221
CKX100AR.14Cylindrical Lens, Plano-Convex, N-BK7, 50.8x50.8mm, 100 mm, 430-700 nm	UNIVERSAL	In Stock	$204
CKX150AR.14Cylindrical Lens, Plano-Convex, N-BK7, 2x2 in., 150 mm EFL, 430-700 nm	UNIVERSAL	In Stock	$241
CKX200AR.14Cylindrical Lens, Plano-Convex, N-BK7, 2x2 in., 200 mm EFL, 430-700 nm	UNIVERSAL	In Stock	$333
CKX300AR.14Cylindrical Lens, Plano-Convex, N-BK7, 2x2 in., 300 mm EFL, 430-700 nm	UNIVERSAL	In Stock	$333
CKV075AR.14Cylindrical Lens, Plano-Concave, N-BK7, 50.8x25.4mm, -75mm FL, 430-700nm	UNIVERSAL	In Stock	$333
CKV100AR.14Cylindrical Lens, Plano-Concave, N-BK7, 50.8x25.4mm, -100mm FL,430-700nm	UNIVERSAL	In Stock	$322
CKV150AR.14Cylindrical Lens, Plano-Concave, N-BK7, 50.8x25.4mm, -150mm FL,430-700nm	UNIVERSAL	In Stock	$292
CKV200AR.14Cylindrical Lens, Plano-Concave, N-BK7, 50.8x25.4mm, -200mm FL,430-700nm	UNIVERSAL	In Stock	$301
