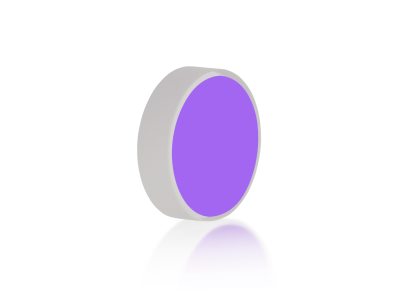

Dielectric Mirror, 12.7 mm, λ/10, 532 nm Laser Line
Dielectric Mirror, 12.7 mm, λ/10, 532 nm Laser Line
Model: 05D20DM.11
In Stock
Product Series Overview
Borofloat 33 Laser Line Dielectric MirrorsThe 05D20DM.11 Laser Line Dielectric mirror is a highly efficient reflector optimized for the 532 nm wavelength. This 1/2 inch (12.7 mm) diameter mirror is made from a 3.1 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The DM.11 coating is designed for use with low-power Nd:YAG lasers and has a center wavelength of 532 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.
Specifications
- Wavelength RegionVIS
- Wavelength Range532 nm
- Mirror ShapeRound
- Diameter12.7 mm
- MaterialBorofloat® 33
- Coating TypeLaser Line Dielectric
- Coating CodeDM.11

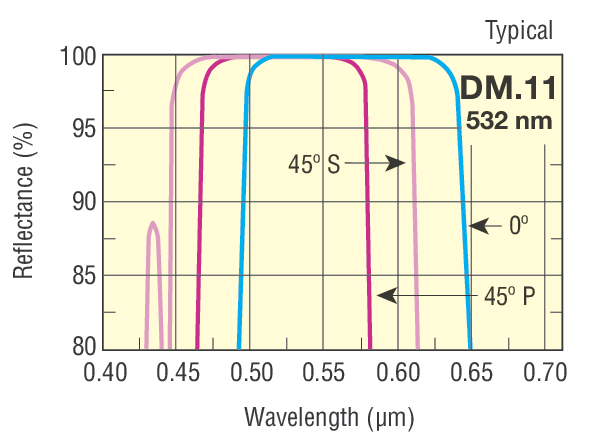

- ReflectivityRs, Rp>99% @ 532 nm
- Surface Quality15-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Substrate Number05D20
- Angle of Incidence0-45°
- Clear Aperture≥central 80% of diameter
- Back SurfaceGround
- Thickness3.1 mm
- Thickness Tolerance±0.25 mm
- Diameter Tolerance+0/-0.13 mm
- Chamfers0.25–0.76 mm face width
- Chamfers Angle Tolerance45° ±15°
- Cleaning
Resources & Downloads
Other
05D20DM.11 RoHS Certificate(703 kB, PDF) DM.11 Raw Data.xlsx(54.1 kB, XLSX)
2D Product Drawings
Laser Line Dielectric Mirror Drawing(102.9 kB, PDF)
