Sorry, this product is no longer offered for sale.

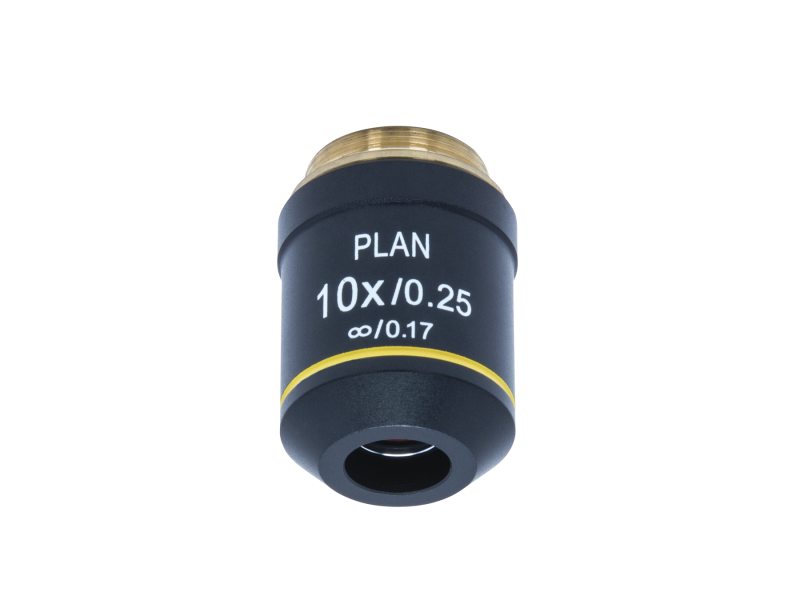

Microscope Objective Lens, Infinity Corrected, 10x, 0.25 NA, 12.1 mm WD

The LI-10X Infinity Corrected Microscope Objective Lens has a 10x magnification, 0.25 numerical aperture, and 12.1 mm working distance. It uses a standard RMS thread, 0.800-36. The lenses are antireflection coated for the visible spectrum. This LI-10x objective is suitable for use with standard low power visible laser wavelengths.
Specifications
- Objective TypeInfinity Corrected
- Magnification10x
- Numerical Aperture0.25
- Wavelength Range400-700 nm
- Effective Focal Length (EFL)18 mm
- Working Distance12.1 mm
- Design Tube Lens Focal Length180 mm
- Thread Type0.800-36 RMS
- Parfocal Length45 mm
Resources & Downloads
2D Product Drawings
LI-10X-Drawings.pdf(224.1 kB, PDF)
Other
LI-10X RoHS Certificate(265.1 kB, PDF)
