Nd:YAG Beamsplitter, High-Energy, 50/50, 25.4 mm, 1064 nm, S-Pol

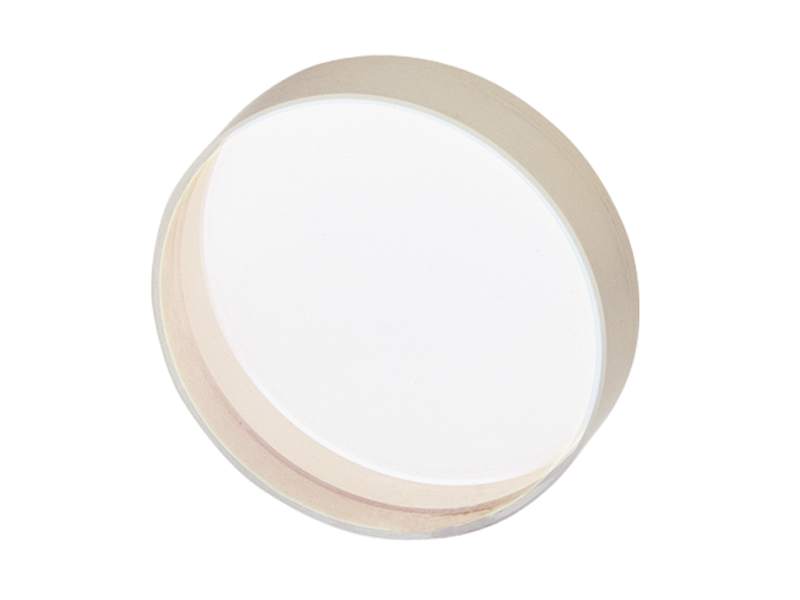

High-Energy Nd:YAG Laser 50 Percent Beamsplitters

The 10Q20HBS.33S High-energy Nd:YAG Laser 50/50 Beamsplitter is manufactured using high purity fused silica substrates and ultra hard dielectric coatings. This beamsplitter has been tested to withstand high-energy pulses and is the ideal choice to work with Spectra-Physics Quanta-Ray lasers. The front of the beamsplitter is coated with a high power beam splitting coating optimized for a 1064 nm center wavelength, 45 deg. angle of incidence and S polarization. The back surface is coated with a high power AR V coat. Offered in 1 inch (25.4 mm) diameter, ultra hard multilayer coatings are optimized for high-energy pulses and high damage thresholds. Meticulous production procedures guarantee they will withstand fluences greater than 10 J/cm2 at 1064 nm.

Specifications

Technical Specs

Wavelength Range
1064 nm
Diameter
25.4 mm
Material
UV Grade Fused Silica

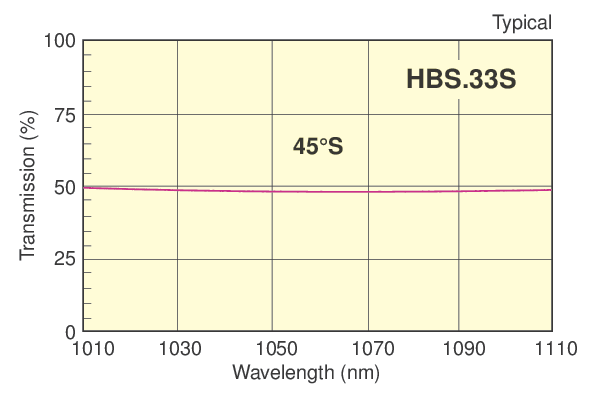

Coating Code
HBS.33S
Antireflection Coating
V-coat AR, R <0.5%
Angle of Incidence
45°±3°
Reflection
R_s = 50% ±3%
Polarization
S
Damage Threshold
1 MW/cm2 CW, 10 J/cm2 with 10 nsec pulses at 1064 nm, typical
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
10-5 scratch-dig

Diameter Tolerance
+0/-0.13 mm
Thickness
6.1 mm
Thickness Tolerance
±0.38 mm
Wedge
30 ± 15 arc min
Clear Aperture
> central 85% of diameter
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
1064 nm
Diameter
25.4 mm
Material
UV Grade Fused Silica
Coating Code
HBS.33S
Antireflection Coating
V-coat AR, R <0.5%
Angle of Incidence
45°±3°
Reflection
R_s = 50% ±3%
Polarization
S
Damage Threshold
1 MW/cm2 CW, 10 J/cm2 with 10 nsec pulses at 1064 nm, typical
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
10-5 scratch-dig

Diameter Tolerance
+0/-0.13 mm
Thickness
6.1 mm
Thickness Tolerance
±0.38 mm
Wedge
30 ± 15 arc min
Clear Aperture
> central 85% of diameter
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Resources & Downloads

Other

10Q20HBS.33S RoHS Certificate(709.9 kB, PDF)
HBS.33S Raw Data.xlsx(70.3 kB, XLSX)

2D Product Drawings

BS-1-DWG-S(72.2 kB, PDF)
