Sorry, this product is no longer offered for sale. The recommended replacement product is TF-56-24-N.

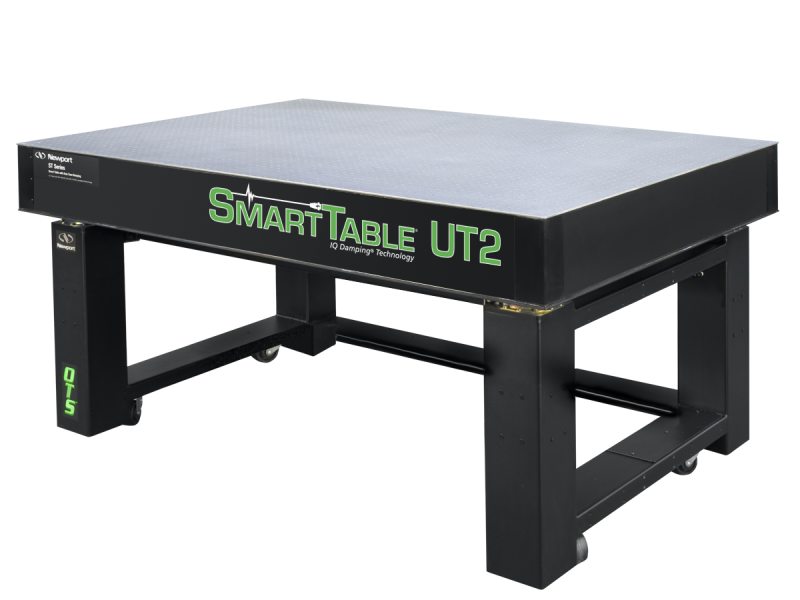

Optical Table System, Rigid, SmartTable® UT2, 5 x 6 ft., 8 in. Thick


Optical Table System, Rigid, SmartTable® UT2, 5 x 6 ft., 8 in. Thick
Model: OTS-UT2-56-8-N
The OTS-UT2-56-8-N SmartTable® OTS™ Rigid Optical Table System combines the unmatched performance and value of our patented Tuned-Damped Field Upgradable SmartTable optical table with a new, patent pending, isolation platform that features integrated accessories to optimize laboratory space, organization and safety. The system includes a 8 inch thick UT2 Series SmartTable with a 59.06 inch width, 6 foot length, and 1/4-20 holes on a 1 inch grid. The OTS platform integrates a new rigid frame design. The SmartTable OTS optical table system is available with an exceptional offering of accessories to support any lab’s growing needs. All OTS systems come with casters as a standard feature for easy mobility.
Specifications
- TypeOptical Table System
- Rigid Supports Included
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Tuned Damping2 Narrowband Precision Tuned Dampers
- Active DampingUpgradable
- Width59.06 in.
- Length6 ft.
- Thickness8 in.
- Working Surface Height36.7 ±0.5 in.
- Mounting Holes1/4-20
- Working Surface3/16 in. thick 400 series ferromagnetic stainless steel
- Surface Flatness±0.004 in. over 2 ft. square
- Mounting Hole Pattern1 in. grid
- Mounting Hole Borders0.5 in.
- Alphanumeric Grid LabelsYes
- Hole Sealing TypeEasy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
- Bottom Skin Material3/16 in. thick carbon steel
- Weight - Tabletop810 lb
- 1120 lb
- Crated Weight - Tabletop970 lb
- 1382 lb
- Frame Assembly Height28.7 ±0.5 in.
- TypeOptical Table System
- Rigid Supports Included
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Tuned Damping2 Narrowband Precision Tuned Dampers
- Active DampingUpgradable
- Width59.06 in.
- Length6 ft.
- Thickness8 in.
- Working Surface Height36.7 ±0.5 in.
- Mounting Holes1/4-20
- Working Surface3/16 in. thick 400 series ferromagnetic stainless steel
- Surface Flatness±0.004 in. over 2 ft. square
- Mounting Hole Pattern1 in. grid
- Mounting Hole Borders0.5 in.
- Alphanumeric Grid LabelsYes
- Hole Sealing TypeEasy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.010 in. steel sheet materials, 0.030 in. triple core interface
- Bottom Skin Material3/16 in. thick carbon steel
- Weight - Tabletop810 lb
- 1120 lb
- Crated Weight - Tabletop970 lb
- 1382 lb
- Frame Assembly Height28.7 ±0.5 in.
