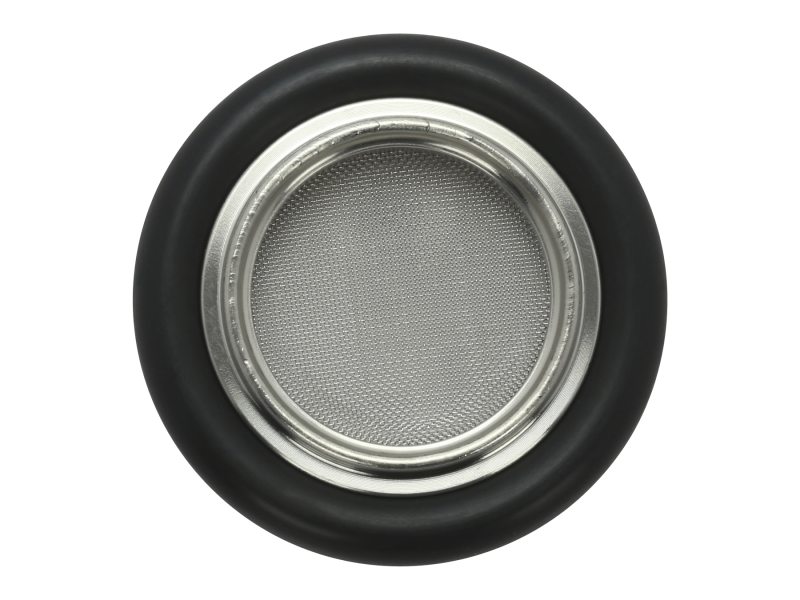

Centering Ring With Screen, NW25 Size ISO-KF Flange, Viton O-ring, S.S.
The 100318603 Centering Ring Assembly With Screen is designed for NW25 size ISO-KF vacuum flanges and features a Viton® O-ring, stainless steel construction, and 72 mesh stainless steel screen. Series 31 Centering rings are inserted between two same size ISO-KF flange faces to provide the vacuum seal when joining them. The included Viton O-ring is recommended when high temperature, chemical resistance or long installed life make them beneficial.
Specifications
- Component TypeCentering Ring
- SeriesSeries 31
- MaterialStainless Steel
- Seal MaterialViton
- Flange TypeISO-KF
- Flange SizeNW25
- Screen72 Mesh Stainless Steel
