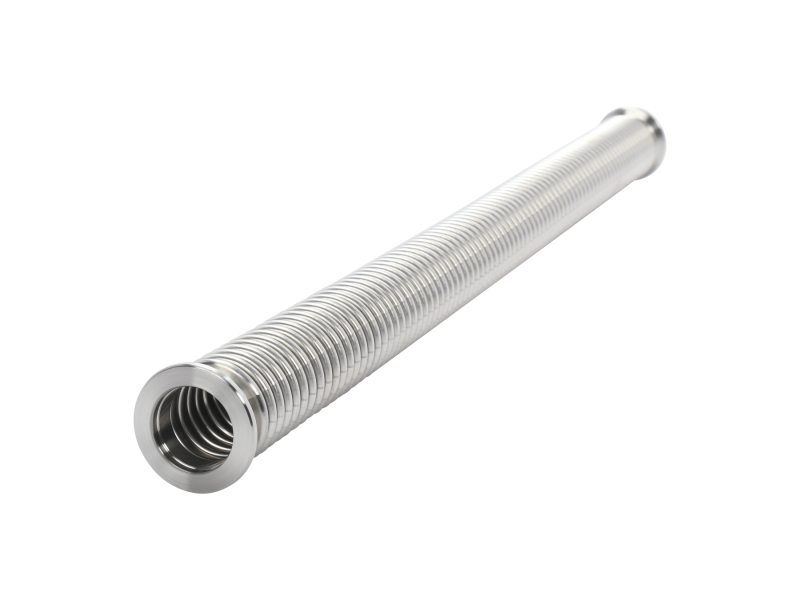

Metal Wall Vacuum Hose, NW25 ISO-KF, 500 mm Length, 0.3 mm Hose Wall
The 100316003 Thick Metal Wall Vacuum Hose is 19.69 inch (500 mm) in length with size NW25 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thick 0.12 in. (0.3 mm) stainless steel hose wall giving it a 112 lb./in spring rate and a 2 7/8 inch static bend radius. The static bend radius for this Series 31 vacuum hose is to the point of permanent deformation. Metal wall vacuum hose can be used in rough piping applications. We also offer thin metal wall vacuum hose for applications where compression or additional flexibility is needed.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Wall Thickness0.012 in. (0.30 mm)
- Length500 mm
- Static Bend Radius2.875 in.
- Spring Rate112 lb/in.
- A500 mm
